FRAME (MODEL E)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

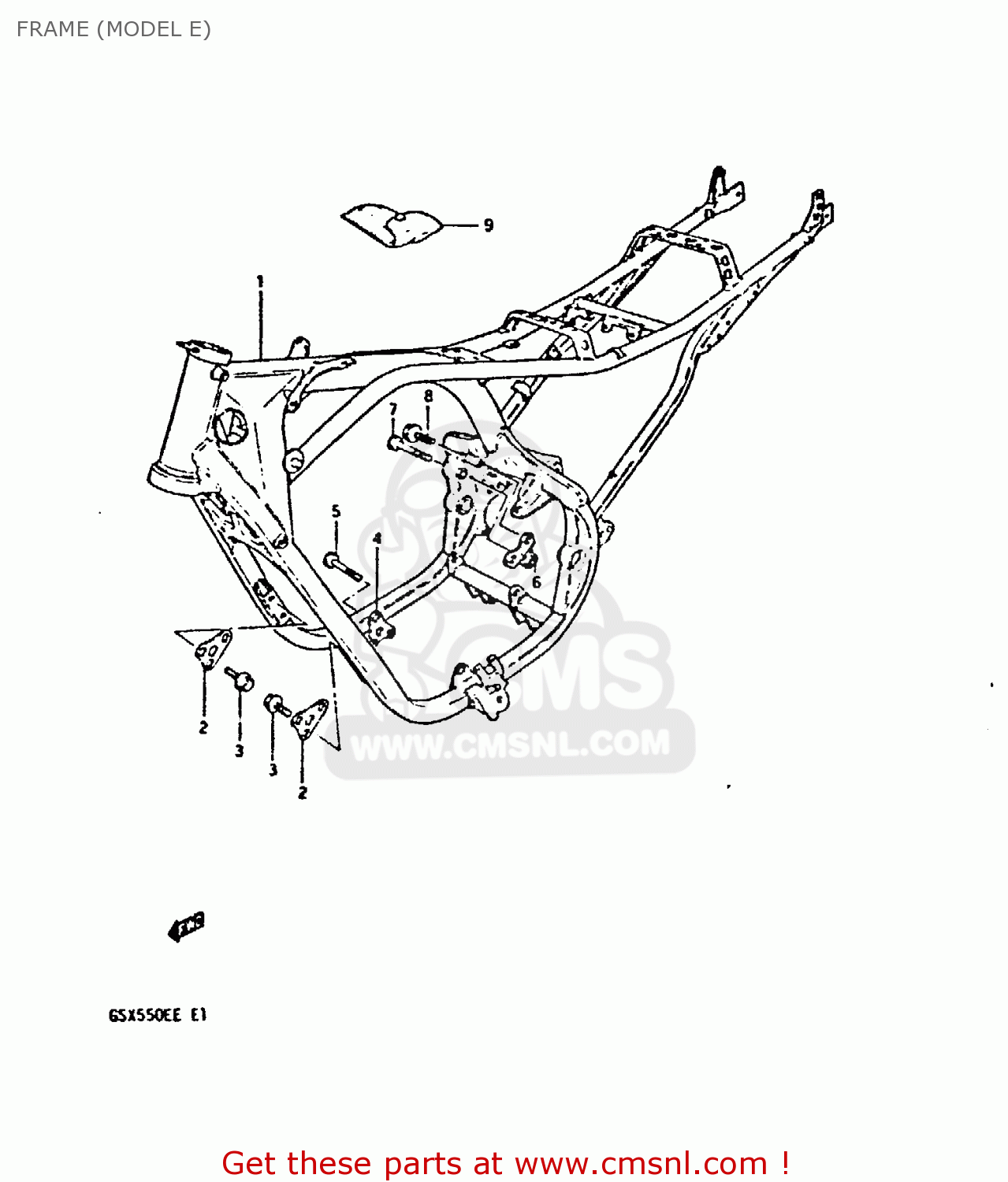

Frame (model e) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

411004345013L
ref: 1-1

FRAME

€ 1,346.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4199143401291
ref: 2

PLATE,ENGINE MOUNTING NO

€ 9.00

0151708168
ref: 3

BOLT

€ 3.00

4199243400291
ref: 4

PLATE,ENGINE MOUNTING NO

€ 11.50

0910608021
ref: 5

BOLT

€ 3.50

4199343400291
ref: 6

PLATE,ENGINE MOUNTING NO.4

€ 0.00

0910608021
ref: 7

BOLT

€ 3.50

0151708168
ref: 8

BOLT

€ 3.00

0980000269
ref: 9

TOOL ASSY

€ 53.00
