RIGHT HANDLE SWITCH (GSX550ESD/ESE/EFE)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

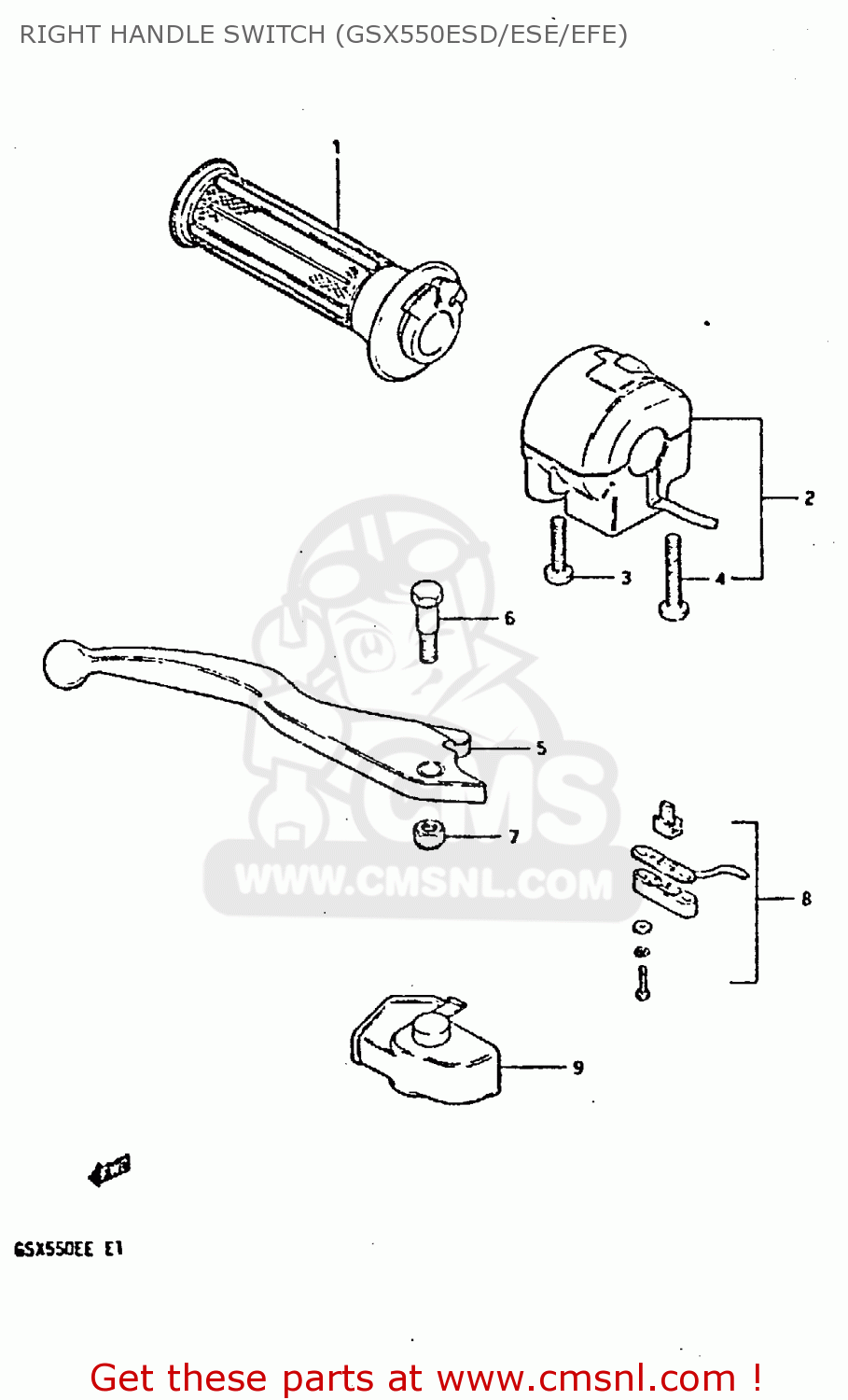

Right handle switch (gsx550esd/ese/efe) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

5711049500
ref: 1

GRIP,THROTTLE

€ 26.00

2-1

3720031310
ref: 2-1

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 86.50

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-3

NOTUSED
ref: 2-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0211205255
ref: 3

SCREW

€ 2.00

0211205355
ref: 4

SCREW

€ 1.50

5742045500
ref: 5

LEVER,BRAKE

€ 27.50

5743149100
ref: 6

BOLT,LEVER PIVOT

€ 6.00

0831921068
ref: 7

NUT 6MM

€ 2.00

5746049300
ref: 8

SWITCH ASSEMBLY

€ 40.00

5734133400
ref: 9

COVER,BRAKE LEVER

€ 4.50
