TURN SIGNAL LAMP (E2, E17)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

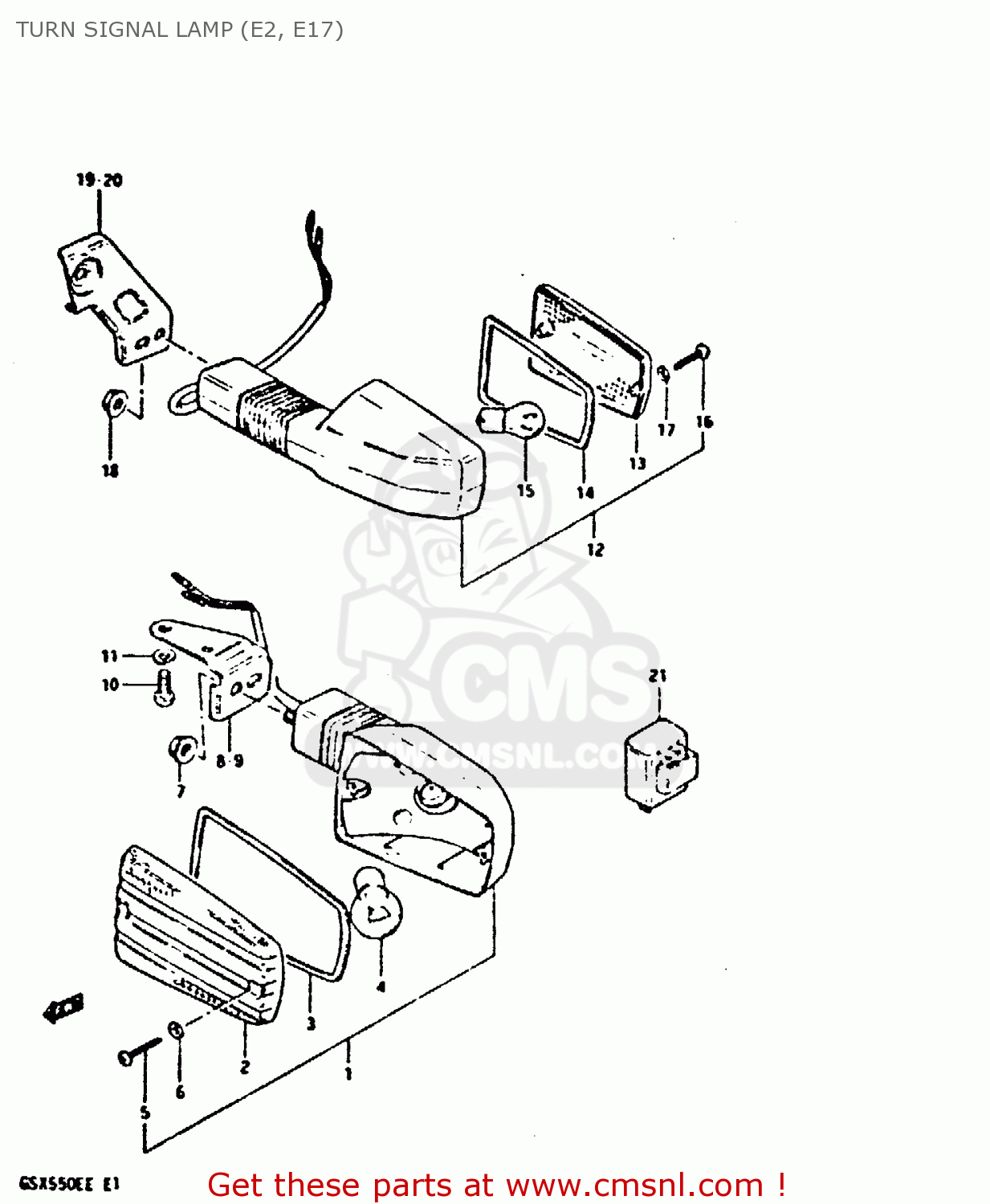

Turn signal lamp (e2, e17) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

TURN SIGNAL LAMP (E2, E17) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
TURN SIGNAL LAMP (E2, E17) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
TURN SIGNAL LAMP (E2, E17) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
3560143421
ref: 1-1
GSX550ED/ESD/ESE/EFE
LAMP ASSY, FRONT TURN SIGNAL
3560143421
€ 98.50
1-2
3560143481
ref: 1-2
GSX550EE
LAMP ASSY, FRONT TURN SIGNAL
3560143481
€ 54.00
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4
0947112045
ref: 4
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626085
ref: 7
NUT M8
0831626085
€ 1.50
8
3567143400
ref: 8
GSX550ESD/ESE/EFE
BRACKET,FRONT TURN SIGNAL
3567143400
€ 5.00
9
3568143400
ref: 9
GSX550ESD/ESE/EFE
BRACKET,FRONT TURN SIGNAL
3568143400
€ 5.50
10
0211206168
ref: 10
SCREW
0211206168
€ 2.50
11
0832121068
ref: 11
LOCK WASHER
0832121068
€ 2.50
12
3560343421
ref: 12
LAMP ASSY, REAR TURN SIGNAL
3560343421
€ 75.00
13
3565243420
ref: 13
LENS,TURN SIGN
3565243420
€ 11.50
14
3561343410
ref: 14
GASKET (NAS)
3561343410
€ 3.50
15
0947112045
ref: 15
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
16
0321104208
ref: 16
SCREW
0321104208
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
0831626086
ref: 18
NUT
€ 1.50
19
3562143400
ref: 19
BRACKET,REAR TURN SIGNAL
€ 7.50
20
3564143400
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.50
21
3861031310
ref: 21
FROM 38610-45031
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
