CLUTCH

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

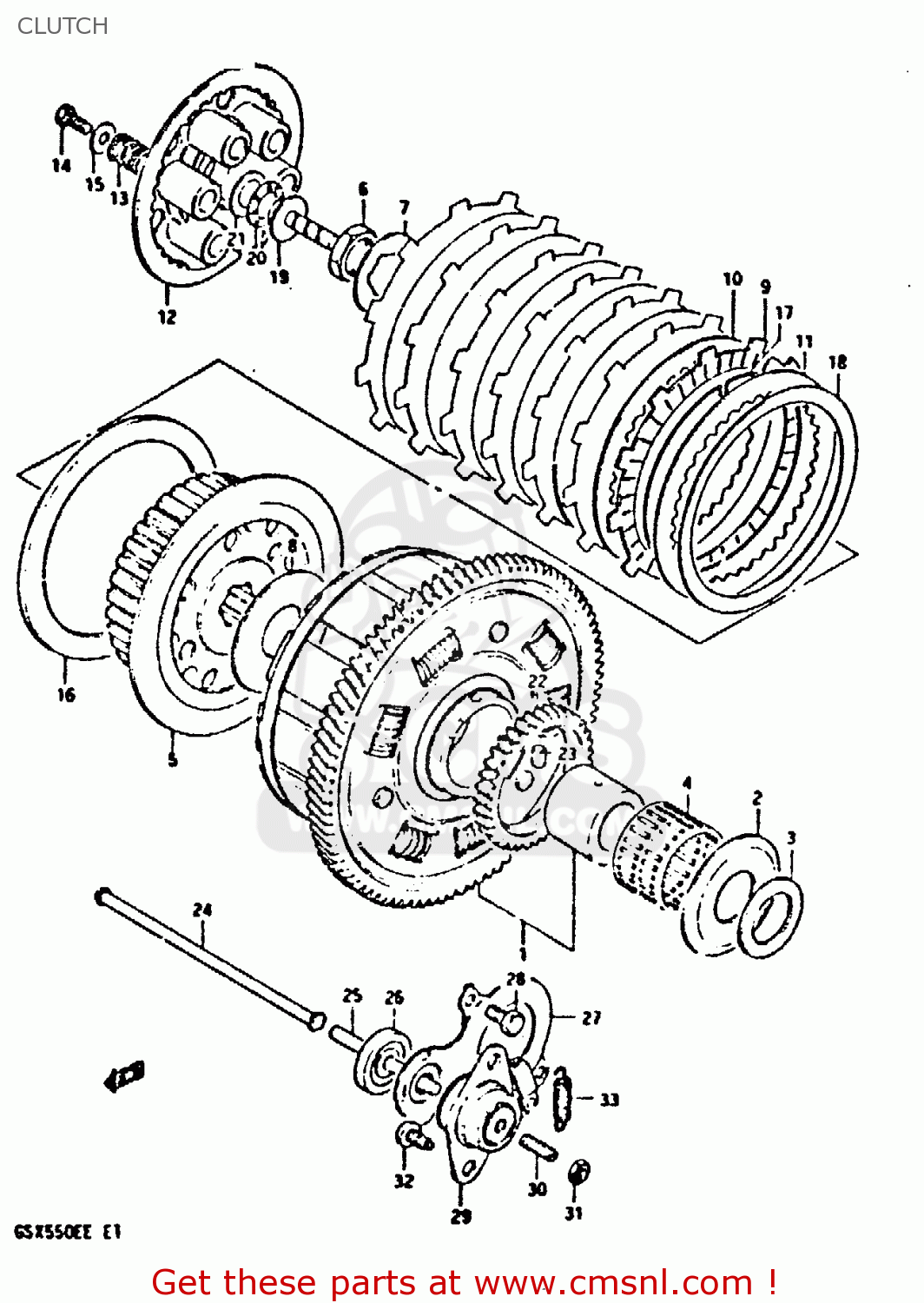

Clutch diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

CLUTCH GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
CLUTCH GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
CLUTCH GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
2120043810
ref: 1
NT:89
GEAR ASSEMBLY,PRIMARY DRIVE
2120043810
€ 235.50
2
0916025038
ref: 2
WASHER
€ 4.50
3
0821125405
ref: 3
WASHER
€ 3.00
4
0926340004
ref: 4
BEARING(40X45X32)
€ 24.50
5
2141043401
ref: 5
HUB,CLUTCH SLEEVE
2141043401
€ 69.00
6
0914024007
ref: 6
FROM 09140-24004
NUT
0914024007
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
0916725007
€ 7.50
8
0916025038
ref: 8
WASHER
€ 4.50
9
2144145001
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144145001
€ 20.00
10
2145145000
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145145000
€ 10.50
11
2145131000
ref: 11
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
12
2146216501
ref: 12
DISC,CLUTCH PRESSURE
€ 51.00
13
0944019004
ref: 13
SPRING
0944019004
€ 3.00
14
0110706168
ref: 14
BOLT, UPPER
€ 3.00
15
0916006020
ref: 15
WASHER
0916006020
€ 2.00
16
2147145101
ref: 16
SEAT,WAVE WASHER
2147145101
€ 16.00
17
2148145100
ref: 17
RING,STOPPER
2148145100
€ 5.00
18
0916400003
ref: 18
WASHER
0916400003
€ 9.00
19
2312144100
ref: 19
PIECE,CLUTCH PUSH
2312144100
€ 21.50
20
0926315003
ref: 20
BEARING(15X28X2)
0926315003
€ 7.00
21
0916015015
ref: 21
WASHER
€ 4.00
22
1632143400
ref: 22
GEAR,OIL PUMP DRIVE
€ 41.00
23
0926106005
ref: 23
PIN
€ 0.00
24
2311031300
ref: 24
ROD,CLUTCH PUSH
2311031300
€ 25.00
25
2311115501
ref: 25
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
26
0928506013
ref: 26
OIL SEAL
0928506013
€ 12.00
27
2311743400
ref: 27
PLATE,CLUTCH PUSH ROD
2311743400
€ 8.00
28
0110706128
ref: 28
BOLT
0110706128
€ 2.00
29
2320031300
ref: 29
SCREW ASSY,CLUTCH RELEASE
2320031300
€ 104.50
30
0913406010
ref: 30
FROM 09134-06001
SCREW(6X25)
0913406010
€ 3.00
31
0831022068
ref: 31
NUT 6MM
€ 2.50
32
0311106168
ref: 32
SCREW
€ 1.50
33
0944308001
ref: 33
SPRING
0944308001
€ 3.00
up
