CRANKSHAFT

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

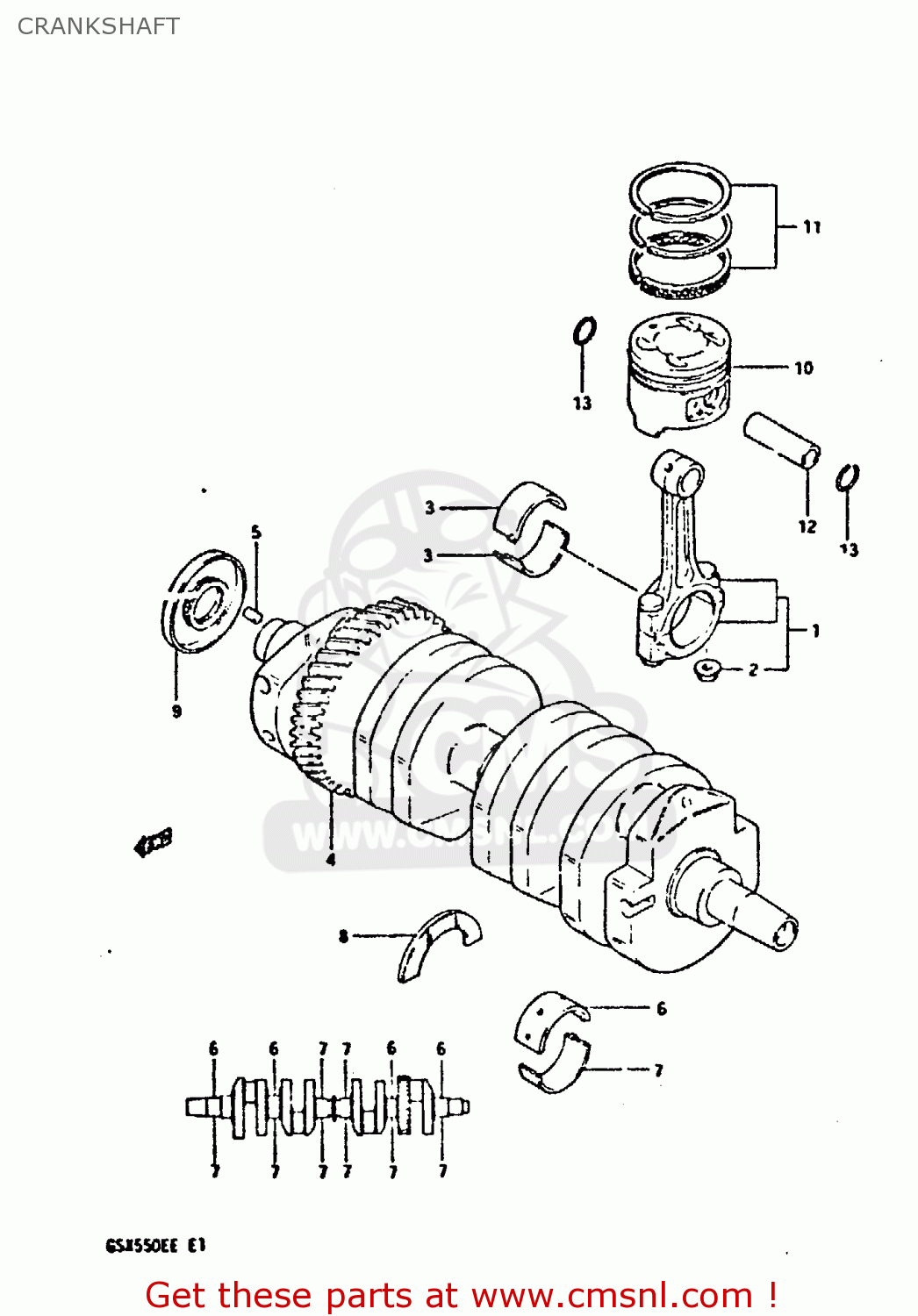

Crankshaft diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

CRANKSHAFT GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
CRANKSHAFT GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
CRANKSHAFT GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
1216043403
ref: 1
ROD ASSEMBLY,CONNECTING
€ 91.00
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216443400010
ref: 3-1
BEARING,CRANK PIN
€ 12.00
3-2
1216443400020
ref: 3-2
BEARING,CRANK PIN
€ 12.50
3-3
1216443400030
ref: 3-3
BEARING,CRANK PIN
€ 12.50
3-4
1216443400040
ref: 3-4
BEARING,CRANK PIN
1216443400040
€ 11.50
4
1222043402
ref: 4
CRANKSHAFT ASSEMBLY
1222043402
€ 898.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6-1
1222943410010
ref: 6-1
BEARING,CRANKSHAFT
€ 9.50
6-2
1222943410020
ref: 6-2
BEARING,CRANKSHAFT
€ 12.00
6-3
1222943410030
ref: 6-3
BEARING,CRANKSHAFT
€ 10.00
6-4
1222943410040
ref: 6-4
BEARING,CRANKSHAFT
€ 10.50
7-1
1222943400010
ref: 7-1
METAL CRANKSHAFT
€ 9.50
7-2
1222943400020
ref: 7-2
METAL CRANKSHAFT
€ 12.00
7-3
1222943400030
ref: 7-3
METAL CRANKSHAFT
€ 10.00
7-4
1222943400040
ref: 7-4
METAL CRANKSHAFT
€ 10.50
8-1
1222843411
ref: 8-1
LH
PLATE,CRANK THRUST
1222843411
€ 8.50
8-2
1222843412
ref: 8-2
LH
PLATE,CRANK THRUST
1222843412
€ 8.50
8-3
1222843413
ref: 8-3
LH
PLATE,CRANK THRUST
1222843413
€ 8.00
8-4
1222843414
ref: 8-4
LH & RH
PLATE,CRANK THRUST
1222843414
€ 9.50
8-5
1222843413
ref: 8-5
LH
PLATE,CRANK THRUST
1222843413
€ 8.00
8-6
1222843416
ref: 8-6
LH
PLATE,CRANK THRUST
1222843416
€ 9.50
9
0928330043
ref: 9
TO 09283-30047
OIL SEAL
0928330043
€ 13.00
10-1
1211143408
ref: 10-1
STD, FROM 12111-4340
PISTON
1211143408
€ 106.50
10-2
1211143408050
ref: 10-2
OPT, FROM 12111-4340
PISTON
€ 106.50
10-3
1211143408100
ref: 10-3
OPT, FROM 12111-4340
PISTON
€ 109.00
11-1
1214043421
ref: 11-1
STD, MODEL D
RING SET,PISTON
€ 54.50
11-2
1214043422
ref: 11-2
STD, MODEL E
RING SET,PISTON
1214043422
€ 54.50
11-3
1214043421050
ref: 11-3
OPT, MODEL D
RING SET,PISTON (OS:0.5)
1214043421050
€ 32.50
11-4
1214043422050
ref: 11-4
OPT, MODEL E
RING SET,PISTON (OS:0.5)
1214043422050
€ 32.50
11-5
1214043422100
ref: 11-5
OPT, MODEL D
RING SET,PISTON (OS:1.0)
1214043422100
€ 32.50
11-6
1214043422100
ref: 11-6
OPT, MODEL E
RING SET,PISTON (OS:1.0)
1214043422100
€ 32.50
12
1215143400
ref: 12
PIN,PISTON
1215143400
€ 19.00
13
0938116002
ref: 13
CIRCLIP
0938116002
€ 1.50
