FUEL TANK (GSX550ESE/EFE)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

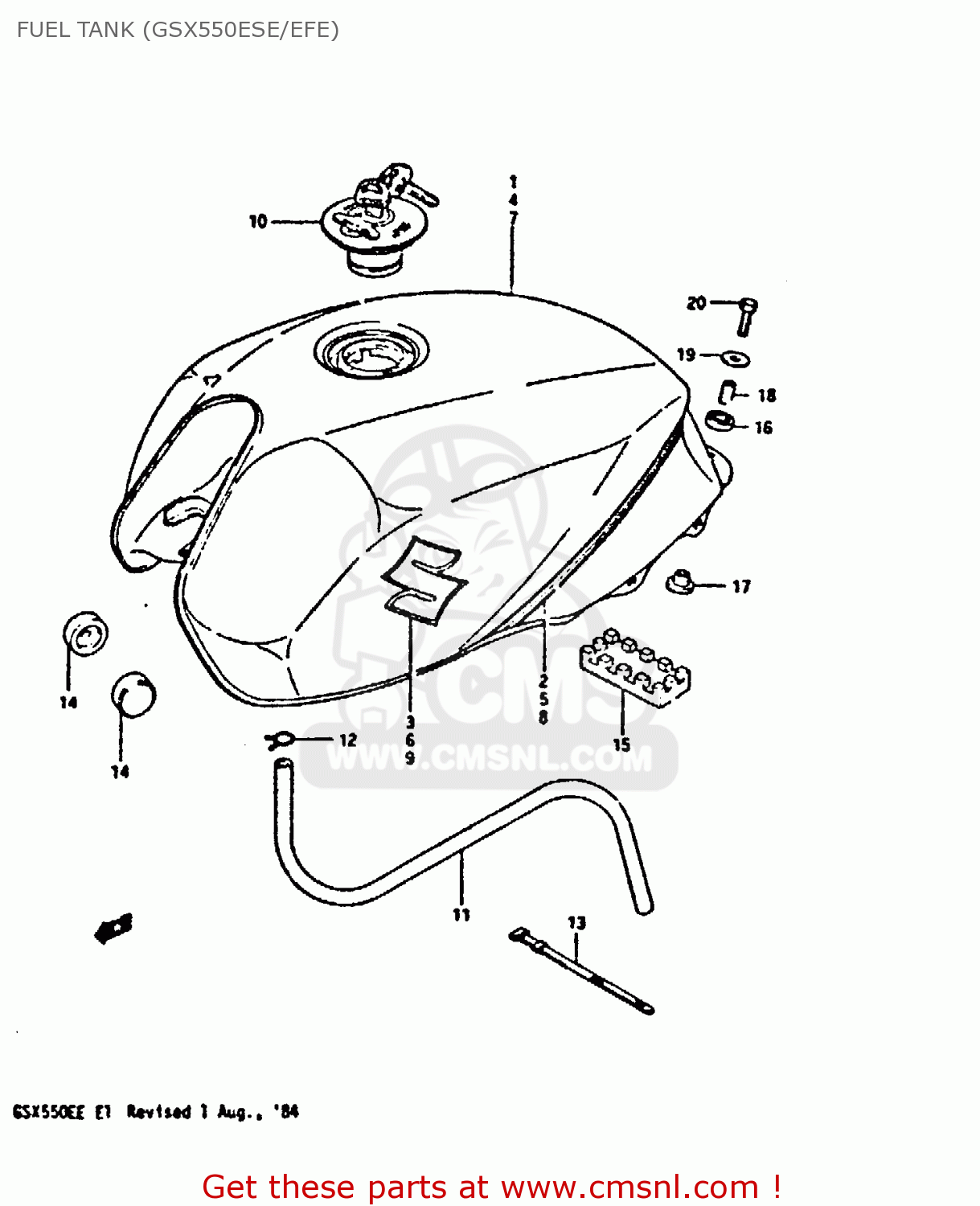

Fuel tank (gsx550ese/efe) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

441004344091J
ref: 1-1

TANK ASSEMBLY,FUEL

€ 582.00

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

68110434107AL
ref: 2

TAPE SET,FUEL TANK

€ 18.50

681114341073H
ref: 3

EMBLEM

€ 7.50

441004344099K
ref: 4
GSX550ESE

TANK ASSY, FUEL

€ 582.00

68110434107AM
ref: 5
GSX550ESE

TAPE SET, FUEL TANK

€ 0.00

681114341060D
ref: 6
GSX550ESE

EMBLEM

€ 6.00

7-1

441004344086S
ref: 7-1
GSX550EFE

TANK ASSY, FUEL

€ 582.00

7-2

NOTUSED
ref: 7-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

68110434107AN
ref: 8
GSX550EFE

TAPE SET, FUEL TANK

€ 24.00

681114341071P
ref: 9
GSX550EFE

EMBLEM

€ 6.00

4420043410KEY
ref: 10

CAP ASSY,FUEL TANK

€ 125.50

0934305165
ref: 11

HOSE,FUEL

€ 13.00

0940108402
ref: 12

CLIP

€ 1.50

0940718401
ref: 13

CLAMP(L:187)

€ 2.00

0932910007
ref: 14

CUSHION

€ 3.00

4454143400
ref: 15

CUSHION,FUEL TANK

€ 7.50

0932014013
ref: 16

CUSHION

€ 3.00

0932010020
ref: 17

CUSHION

€ 4.00

0918006107
ref: 18

SPACER (6.4X9X20)

€ 3.00

0916006004
ref: 19

WASHER (6.5X24X1.6)

€ 1.50

0110706308
ref: 20

BOLT

€ 2.50
