SEAT (MODEL D)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

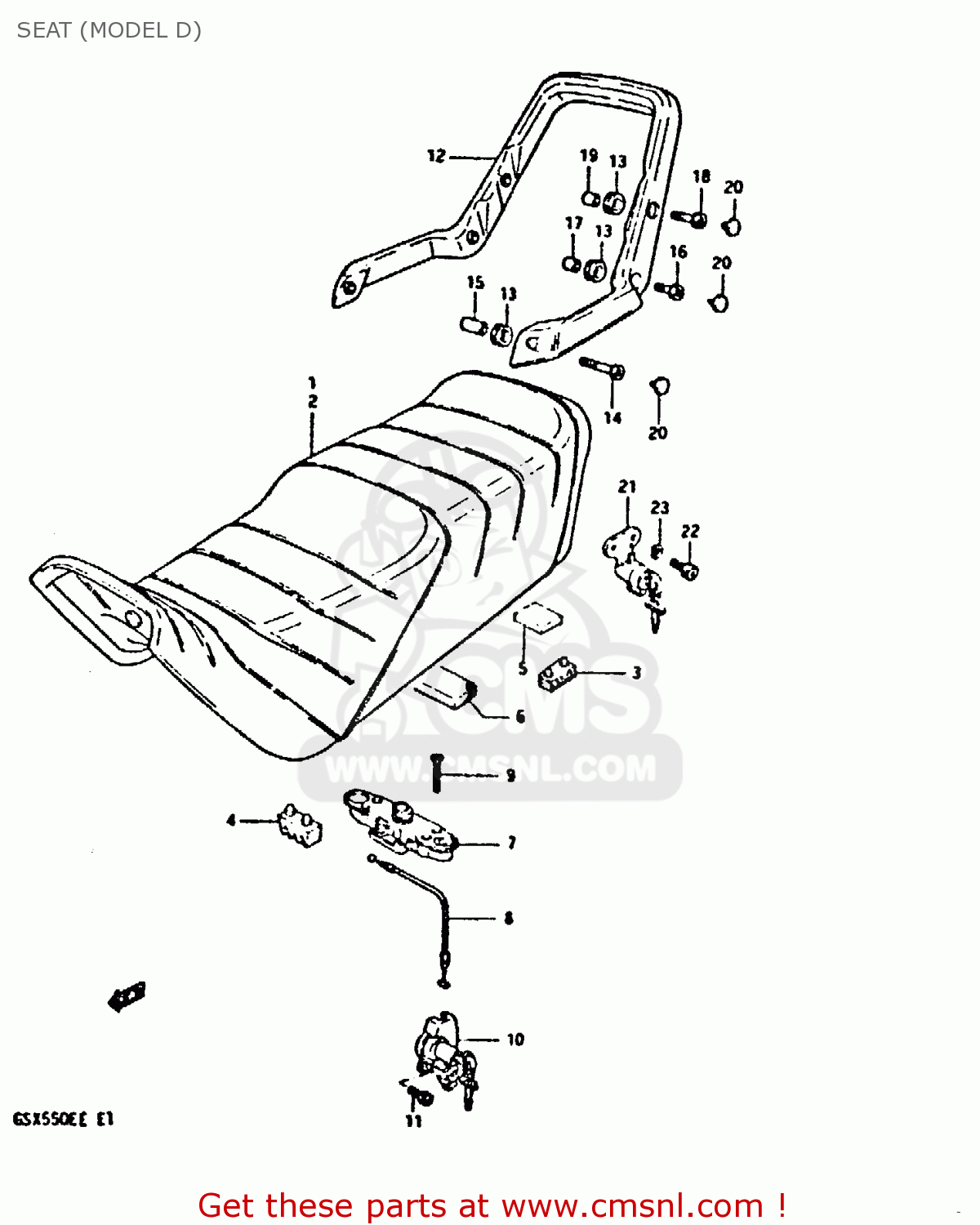

Seat (model d) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

SEAT (MODEL D) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
SEAT (MODEL D) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
SEAT (MODEL D) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
451004340053L
ref: 1-1
FOR 68D
SEAT ASSEMBLY
451004340053L
€ 245.50
1-2
451004340048H
ref: 1-2
FOR 88M
SEAT ASSEMBLY
451004340048H
€ 245.50
2-1
NOTUSED
ref: 2-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
4
4514945330
ref: 4
CUSHION,SUPPORT(50X25X32)
4514945330
€ 2.00
5
4521343400
ref: 5
CUSHION,STRIKER
4521343400
€ 3.50
6
9498229400
ref: 6
CUSHION(30X60X10)
9498229400
€ 1.50
7
4522013600
ref: 7
LOCK ASSEMBLY,SEAT STRIKER
4522013600
€ 47.00
8
4528043400
ref: 8
CABLE,SEAT LOCK
€ 13.00
9
0212206306
ref: 9
SCREW
€ 2.00
10
9570043400KEY
ref: 10
LOCK ASSEMBLY,SEAT & HELMET
9570043400KEY
€ 57.00
11
0910606036
ref: 11
BOLT
€ 2.50
12
4621043400
ref: 12
HANDLE,PILLION RIDER
€ 91.50
13
4552243400
ref: 13
TO 45522-43401
GROMMET,PILION RIDER HANDLE
€ 4.00
14
0910608037
ref: 14
BOLT
0910608037
€ 3.50
15
4621943400
ref: 15
SPACER,PILLION RIDER HOLDER
4621943400
€ 2.50
16
0910608042
ref: 16
BOLT
€ 3.00
17
4621943420
ref: 17
SPACER,PILLION RIDER HOLDER
4621943420
€ 3.00
18
0910608039
ref: 18
BOLT
€ 3.50
19
4621943411
ref: 19
SPACER,PILLION RIDER HOLDER
4621943411
€ 3.50
20
0925006008
ref: 20
CAP(OD:10)
0925006008
€ 3.00
21
9570043410KEY
ref: 21
LOCK ASSEMBLY,HELMET
9570043410KEY
€ 35.00
22
0910606036
ref: 22
BOLT
€ 2.50
23
0832121065
ref: 23
LOCK WASHER
€ 2.00
