FUEL TANK (GSX550EE)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

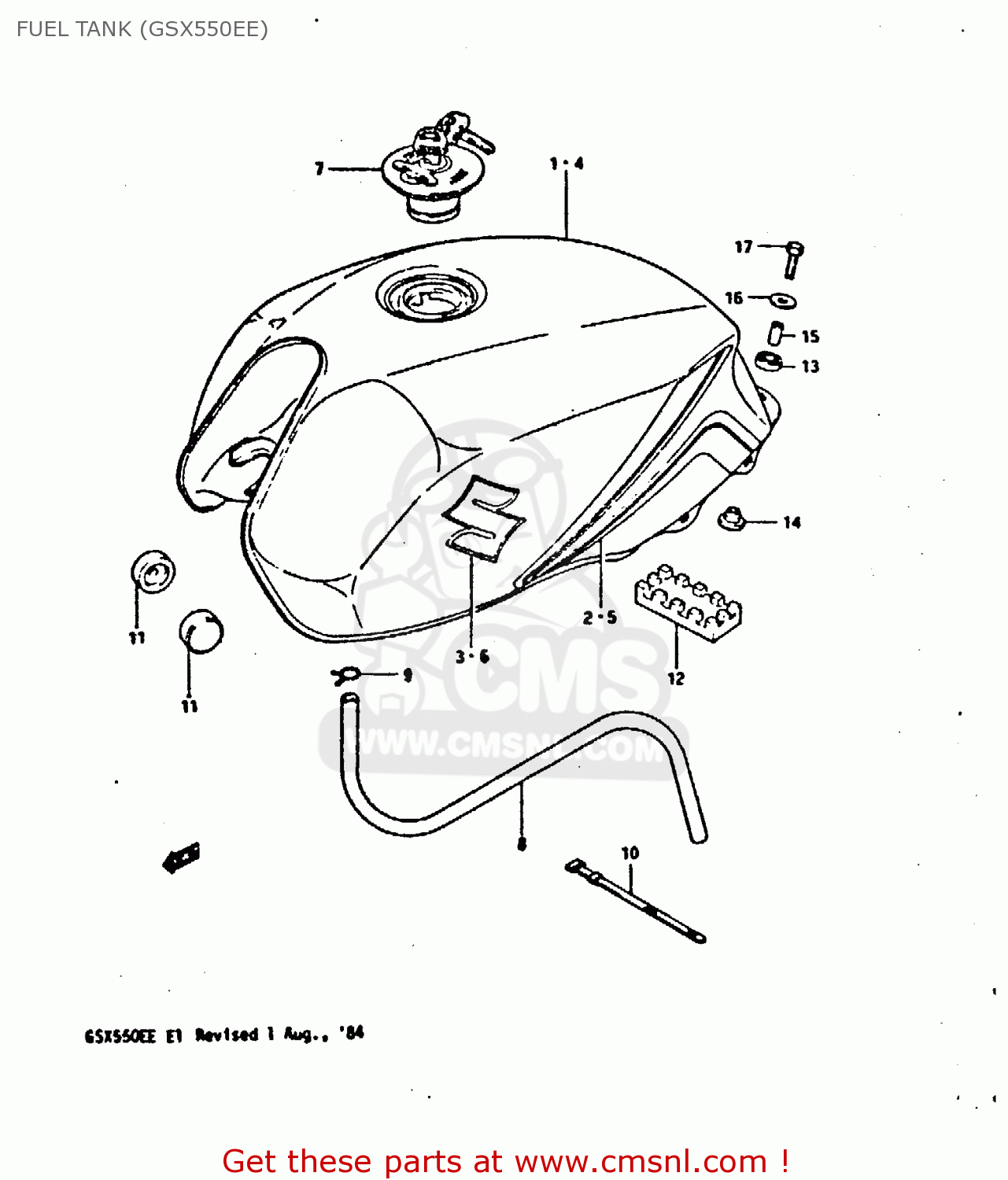

Fuel tank (gsx550ee) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

FUEL TANK (GSX550EE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
FUEL TANK (GSX550EE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
FUEL TANK (GSX550EE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1
441004345013Z
ref: 1
TANK ASSY, FUEL (BLACK)
€ 582.00
2
681104342171P
ref: 2
TAPE SET, FUEL TANK
€ 0.00
3
681114341071P
ref: 3
EMBLEM
681114341071P
€ 6.00
4
441004345007P
ref: 4
TANK ASSY, FUEL (RED)
€ 582.00
5
681104342160D
ref: 5
TAPE SET, FUEL TANK
€ 47.00
6
681114341060D
ref: 6
EMBLEM
€ 6.00
7
4420043410KEY
ref: 7
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
8
0934305165
ref: 8
HOSE,FUEL
0934305165
€ 13.00
9
0940108402
ref: 9
CLIP
0940108402
€ 1.50
10
0940718401
ref: 10
CLAMP(L:187)
0940718401
€ 2.00
11
0932910007
ref: 11
CUSHION
0932910007
€ 3.00
12
4454143400
ref: 12
CUSHION,FUEL TANK
4454143400
€ 7.50
13
0932014013
ref: 13
CUSHION
0932014013
€ 3.00
14
0932010020
ref: 14
CUSHION
0932010020
€ 4.00
15
0918006107
ref: 15
SPACER (6.4X9X20)
0918006107
€ 3.00
16
0916006004
ref: 16
WASHER (6.5X24X1.6)
0916006004
€ 1.50
17
0110706308
ref: 17
BOLT
0110706308
€ 2.50
