Buy Suzuki GSX Parts Online


FRONT MASTER CYLINDER

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

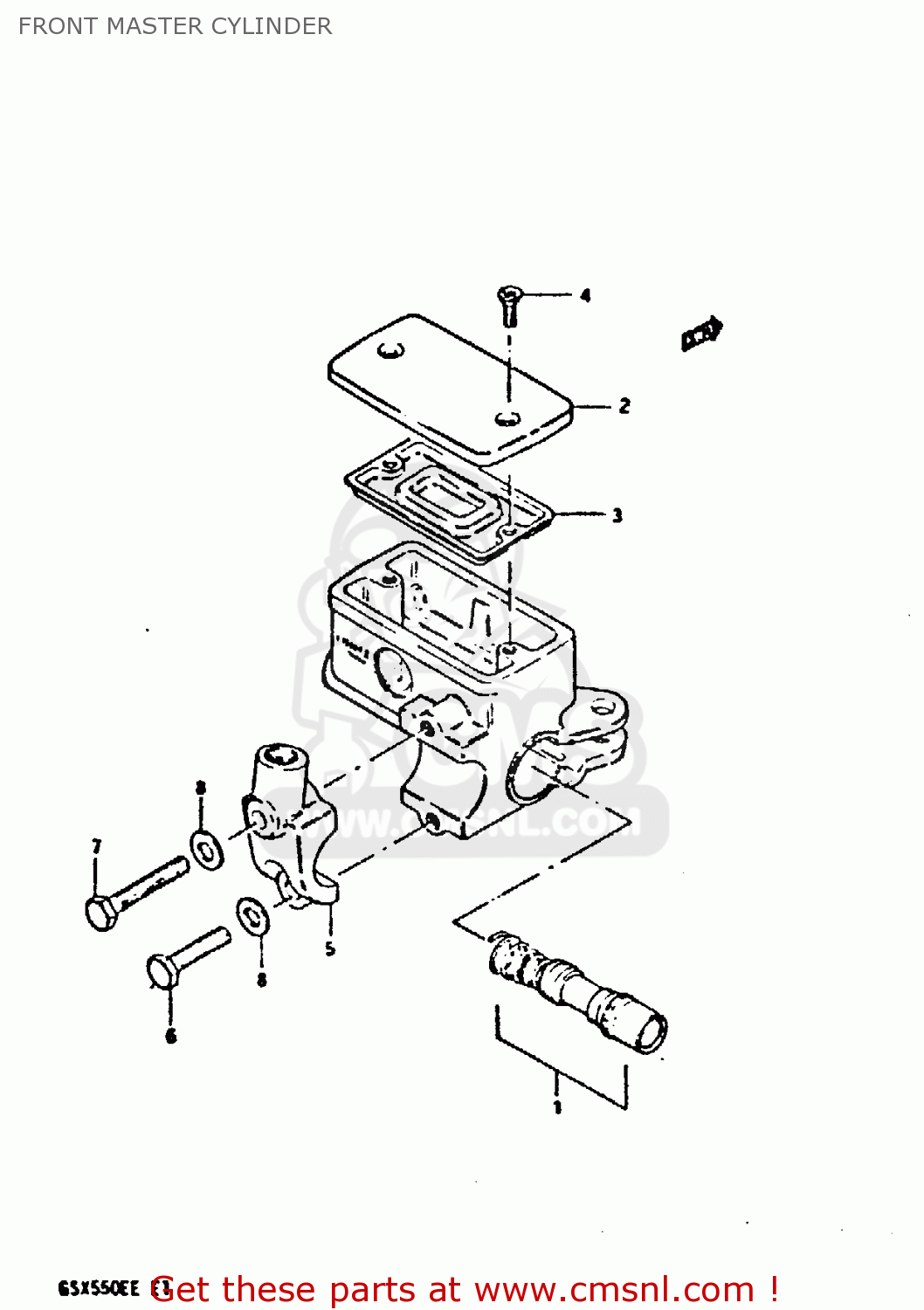

Front master cylinder diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

FRONT MASTER CYLINDER GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
FRONT MASTER CYLINDER GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
FRONT MASTER CYLINDER GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
0
5960049420
ref: 0
MASTER CYLINDER ASSY, FRONT
5960049420
€ 274.00
1
5960045831
ref: 1
PISTON & CUP SET
5960045831
€ 41.50
2
6966949300
ref: 2
CAP
€ 30.00
3
6966749300
ref: 3
6966749300
4
6968949300
ref: 4
SCREW
6968949300
€ 1.50
5
5967144300
ref: 5
HOLDER
5967144300
€ 14.50
6
0110706255
ref: 6
BOLT
0110706255
€ 2.50
7
0110706405
ref: 7
BOLT
€ 2.00
8
0832221064
ref: 8
WASHER
0832221064
€ 2.00
