STAND

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

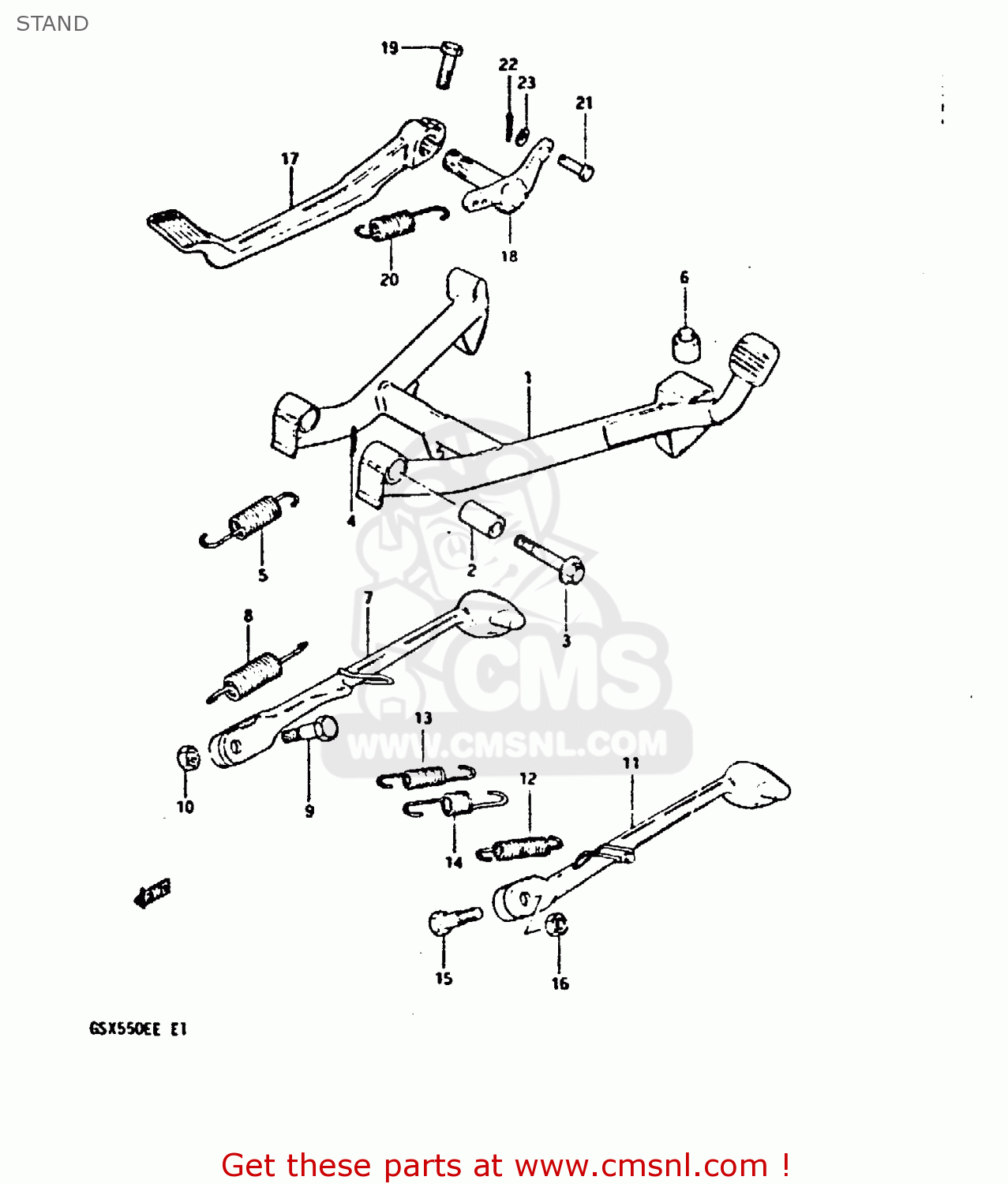

Stand diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

STAND GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
STAND GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
STAND GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
4210043400
ref: 1-1
STAND,CENTER
4210043400
€ 100.50
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0918010084
ref: 2
SPACER (10.5X16X31.8)
€ 3.00
3
0910110028
ref: 3
BOLT 10X50
€ 4.50
4
0938510001
ref: 4
CLIP
0938510001
€ 1.50
5-1
0944318012
ref: 5-1
SPRING
0944318012
€ 9.00
5-2
NOTUSED
ref: 5-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
0932110001
ref: 6
CUSHION
0932110001
€ 2.50
7-1
4231043401737
ref: 7-1
MODEL D
STAND,SIDE
€ 56.00
7-2
423104340113L
ref: 7-2
MODEL E
STAND,SIDE
€ 56.00
8
0944315017
ref: 8
SPRING
0944315017
€ 4.00
9
0911110019
ref: 9
BOLT L:30
0911110019
€ 4.50
10
0831022106
ref: 10
NUTM10X1.25X8
€ 2.00
11-1
NOTUSED
ref: 11-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11-2
NOTUSED
ref: 11-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12-1
NOTUSED
ref: 12-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12-2
NOTUSED
ref: 12-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
NOTUSED
ref: 13
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
4311143401
ref: 17
PEDAL,BRAKE
€ 75.00
18
4312043400
ref: 18
ARM,BRAKE PEDAL ROD
€ 42.00
19
0152708258
ref: 19
BOLT
€ 2.50
20
0944314002
ref: 20
SPRING
0944314002
€ 2.50
21
0920006029
ref: 21
PIN
0920006029
€ 1.50
22
0411120158
ref: 22
PIN
0411120158
€ 1.50
23
0832221068
ref: 23
WASHER
0832221068
€ 2.00
