SPEEDOMETER - TACHOMETER (GSX550ED/EE)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

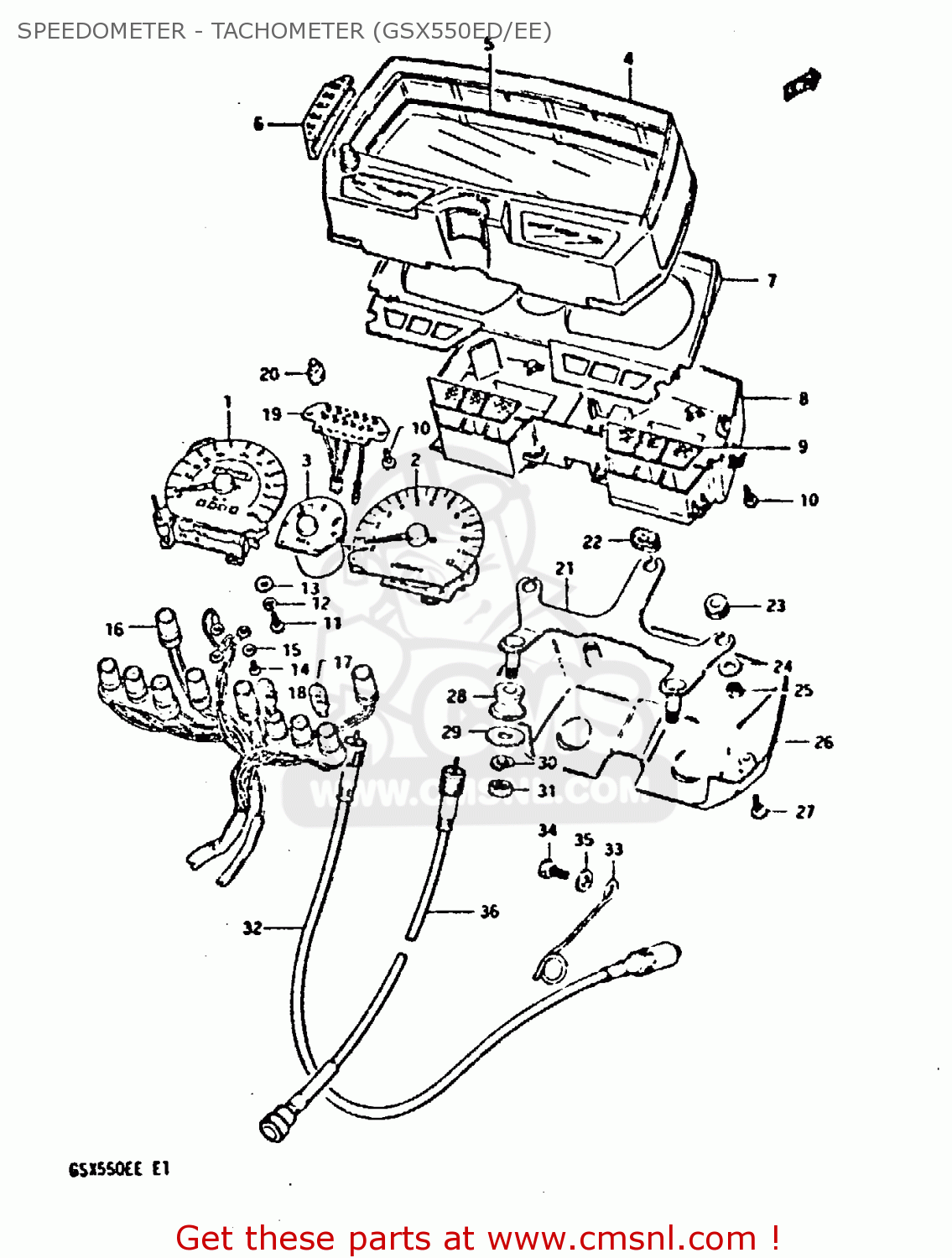

Speedometer - tachometer (gsx550ed/ee) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

SPEEDOMETER - TACHOMETER (GSX550ED/EE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
SPEEDOMETER - TACHOMETER (GSX550ED/EE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
SPEEDOMETER - TACHOMETER (GSX550ED/EE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
3412043420
ref: 1-1
SPEEDOMETER (MILE/KILO)
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
3422043411
ref: 2
METER,TACHOMETER
3422043411
€ 186.50
3
3432043410
ref: 3
METER,FUEL
3432043410
€ 78.50
4-1
3415043410
ref: 4-1
HOOD,METER
3415043410
€ 72.50
4-2
NOTUSED
ref: 4-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
3411243410
ref: 5
GLASS,SPEEDOMETER
3411243410
€ 36.50
6
3418943410
ref: 6
CUSHION,METER CASE
€ 12.50
7-1
3415343410
ref: 7-1
PLATE,METER WINDOW
3415343410
€ 17.50
7-2
NOTUSED
ref: 7-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
3411143410
ref: 8
CASE,METER,INNER
3411143410
€ 64.00
9
3630043810
ref: 9
LENS SET,PILOT
€ 24.00
10
3645634510
ref: 10
SCREW,GEAR INDICATOR
€ 2.00
11
0211203108
ref: 11
SCREW
0211203108
€ 1.50
12
0832121038
ref: 12
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
WASHER
0832221038
€ 2.00
14
0211203068
ref: 14
SCREW
0211203068
€ 2.00
15
0832221038
ref: 15
WASHER
0832221038
€ 2.00
16-1
3417043410
ref: 16-1
SOCKET
€ 95.50
16-2
NOTUSED
ref: 16-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
0947112082
ref: 17
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
18
0947112077
ref: 18
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
19
3645343410
ref: 19
SOCKET,GEAR INDICATOR
3645343410
€ 30.00
20
0947112071
ref: 20
BULB(14V1.12W)
0947112071
€ 5.00
21
3495043410
ref: 21
BRACKET,METER
3495043410
€ 17.00
22
3499545720
ref: 22
CUSHION,METER
€ 3.00
23
3499643410
ref: 23
CUSHION,METER
3499643410
€ 3.00
24
3418130520
ref: 24
WASHER,METER
3418130520
€ 1.50
25
0831022058
ref: 25
NUT
€ 2.50
26
3419343410
ref: 26
COVER,METER,UNDER
3419343410
€ 59.00
27
0311204125
ref: 27
SCREW
0311204125
€ 1.50
28
3495631001
ref: 28
CUSHION,METER BRACKET
3495631001
€ 4.50
29
0916008057
ref: 29
WASHER (8.5X20X1.6)
0916008057
€ 2.00
30
0832121085
ref: 30
LOCK WASHER
€ 2.50
31
0831011085
ref: 31
NUT
€ 1.50
32
3491043410
ref: 32
CABLE ASSEMBLY,SPEEDOMETER
3491043410
€ 65.00
33
3493845100
ref: 33
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
34
0110706168
ref: 34
BOLT, UPPER
€ 3.00
35
0832221068
ref: 35
WASHER
0832221068
€ 2.00
36
3494044311
ref: 36
CABLE ASSY,TACHOMETER
3494044311
€ 13.50
