COWLING (GSX550ESE)

GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

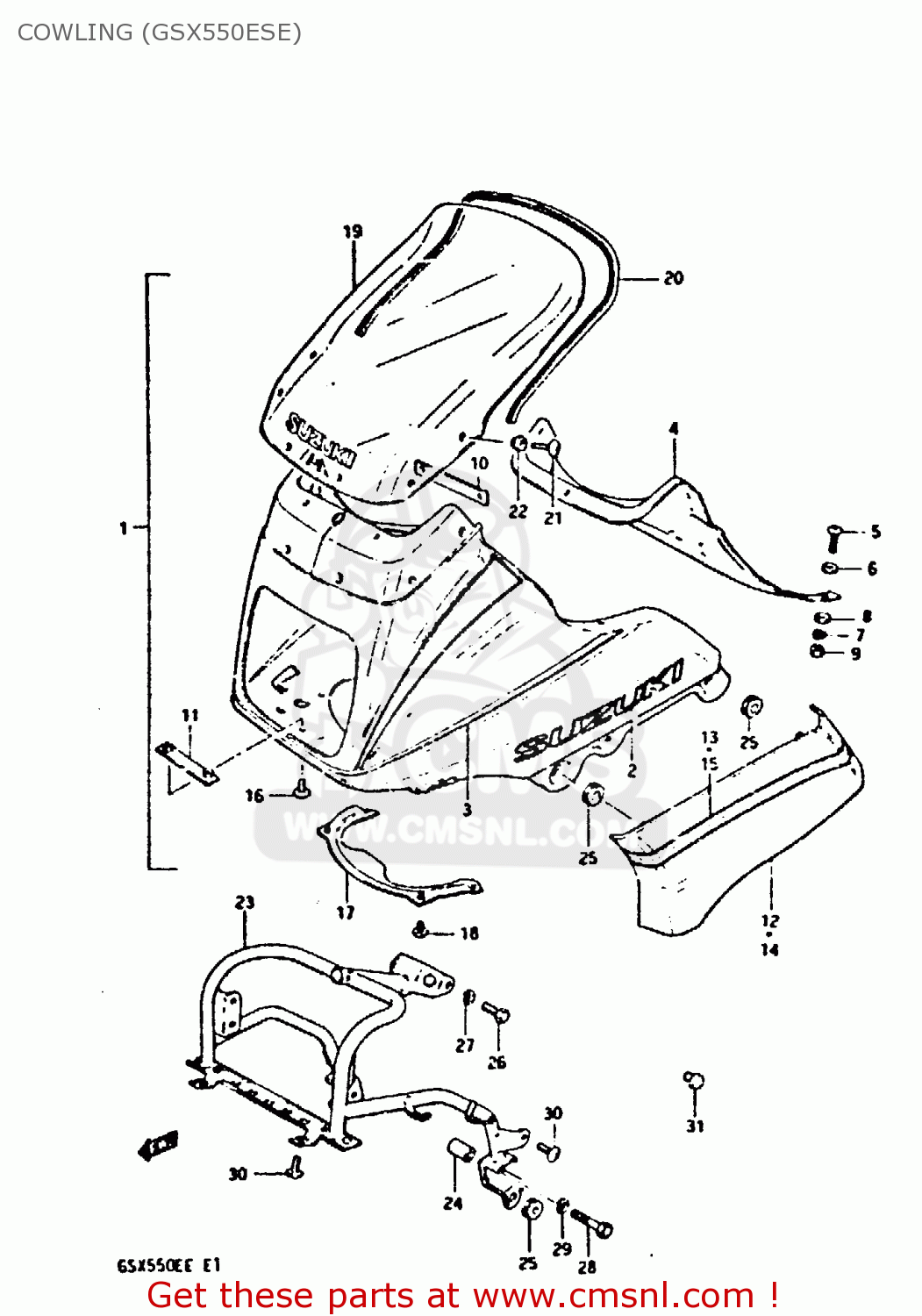

Cowling (gsx550ese) diagram GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)

COWLING (GSX550ESE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
COWLING (GSX550ESE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
COWLING (GSX550ESE) GSX550E 1983 (D) (E01 02 04 06 15 16 17 18 21 22 24 25 26 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
944004349004Y
ref: 1-1
COWLING ASSEMBLY
€ 755.50
1-2
944004349007P
ref: 1-2
COWLING ASSY (RED)
€ 960.50
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
681113240173H
ref: 2-1
FOR 04Y
EMBLEM
€ 8.50
2-2
681113240160D
ref: 2-2
FOR 07P
EMBLEM
€ 9.50
3-1
68190434107AL
ref: 3-1
FOR 04Y
TAPE SET,COWLING
€ 30.50
3-2
68190434107AM
ref: 3-2
FOR 07P
TAPE SET
€ 0.00
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
SCREW
0214205165
€ 2.50
6
0832221055
ref: 6
WASHER,5MM
0832221055
€ 2.50
7
0832121035
ref: 7
LOCK WASHER
€ 1.50
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12-1
944304342091J
ref: 12-1
FOR 04Y
COVER,COWLING,RIGHT
€ 63.50
12-2
944304342099K
ref: 12-2
FOR 07P
COVER, RH (SILVER/RED)
€ 63.50
13-1
68680434207AL
ref: 13-1
FOR 04Y
TAPE SET,COWLING
€ 0.00
13-2
68680434207AM
ref: 13-2
FOR 07P
TAPE SET
€ 0.00
14-1
944404342091J
ref: 14-1
FOR 04Y
COVER,COWLING,LEFT
944404342091J
€ 37.50
14-2
944404342099K
ref: 14-2
FOR 07P
COVER, LH (SILVER/RED)
€ 0.00
15-1
68690434207AL
ref: 15-1
FOR 04Y
TAPE SET,COWLING
€ 0.00
15-2
68690434207AM
ref: 15-2
FOR 07P
TAPE SET
€ 0.00
16
0214205127
ref: 16
SCREW
0214205127
€ 1.50
17
9448043400
ref: 17
COVER,COWLING,LOWER
€ 19.00
18
0214205127
ref: 18
SCREW
0214205127
€ 1.50
19-1
9461143420
ref: 19-1
WINDOW
€ 281.50
19-2
NOTUSED
ref: 19-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20-1
9463143400
ref: 20-1
MOLDING,LOWER
9463143400
€ 18.00
20-2
NOTUSED
ref: 20-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
0214205165
ref: 21
SCREW
0214205165
€ 2.50
22
0932005008
ref: 22
CUSHION
0932005008
€ 5.00
23
9451043400
ref: 23
BRACE,COWLING
9451043400
€ 112.50
24
0918008057
ref: 24
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
25
0932008018
ref: 25
CUSHION
0932008018
€ 4.00
26
0110708165
ref: 26
BOLT
€ 2.00
27
0832121085
ref: 27
LOCK WASHER
€ 2.50
28
0110708455
ref: 28
BOLT
€ 2.50
29
0832121085
ref: 29
LOCK WASHER
€ 2.50
30
0214206125
ref: 30
SCREW 6X12
0214206125
€ 2.00
31
0925006007
ref: 31
PLUG
0925006007
€ 2.00
