CAM CHAIN

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

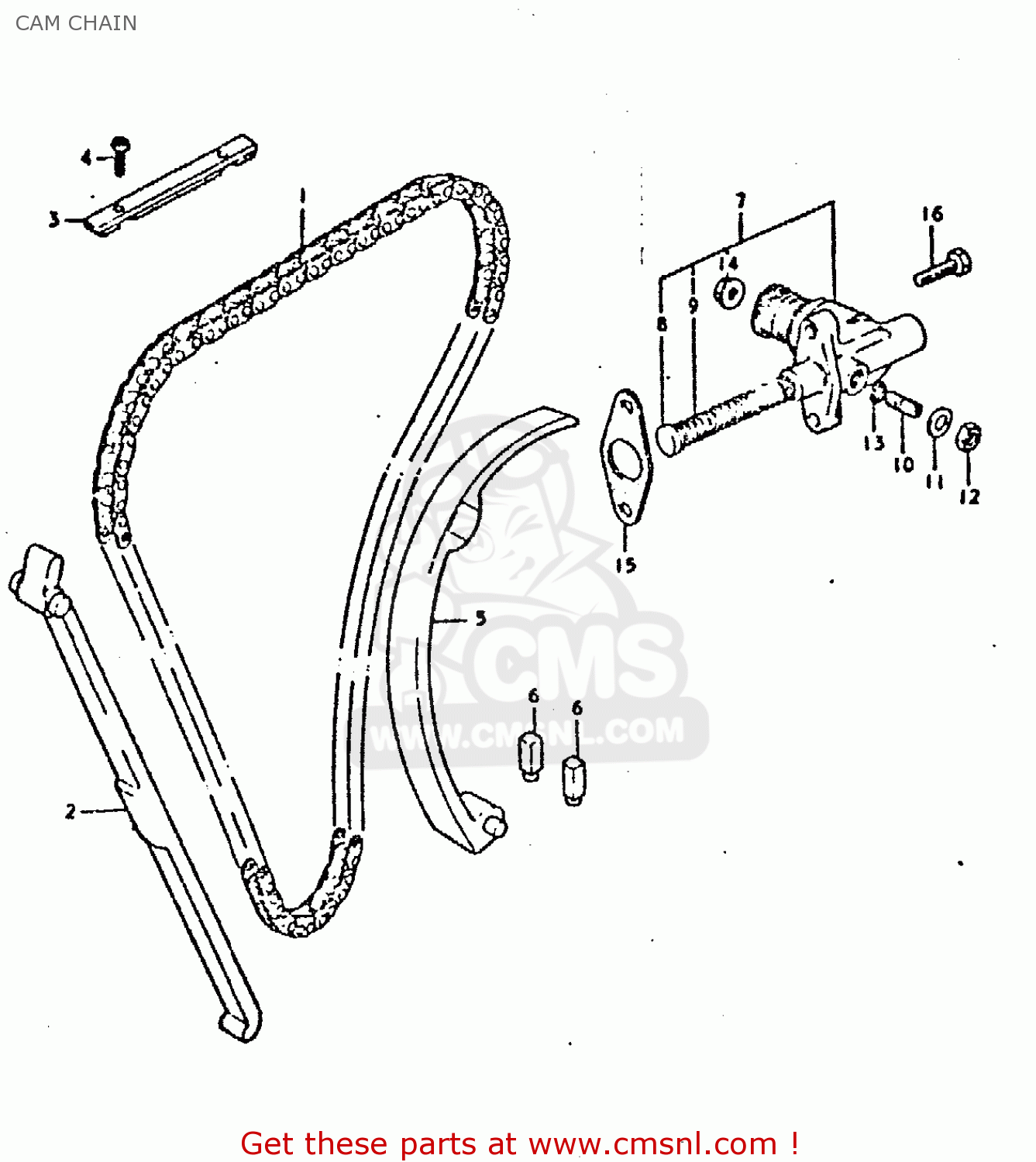

Cam chain diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CAM CHAIN GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
CAM CHAIN GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
CAM CHAIN GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
1276045440
ref: 1
CHAIN,CAMSHAFT DRIVE
1276045440
€ 114.50
2
1277145451
ref: 2
GUIDE,CAM CHAIN NO.1
1277145451
€ 53.50
3
1278247040
ref: 3
GUIDE,CAM CHAIN NO.3
1278247040
€ 89.50
4
0211205128
ref: 4
SCREW
€ 2.50
5
1281044150
ref: 5
TENSIONER,CAM CHAIN
1281044150
€ 64.00
6
1281444100
ref: 6
CUSHION,CAM CHAIN TENSIONER
€ 8.50
7
1283047001
ref: 7
ADJUSTER ASSEMBLY,TENSIONER
1283047001
€ 167.00
8
1283347001
ref: 8
ROD,PUSH
1283347001
€ 25.00
9
0944012017
ref: 9
SPRING
0944012017
€ 2.50
10
1283845001
ref: 10
SCREW
1283845001
€ 6.00
11
0832211088
ref: 11
WASHER
0832211088
€ 2.00
12
0831012088
ref: 12
NUT
0831012088
€ 2.00
13
0928006003
ref: 13
O-RING
0928006003
€ 2.50
14
0915906017
ref: 14
NUT
0915906017
€ 2.50
15
1283747000
ref: 15
GASKET,TENSIONER ADJUSTER (MCA)
1283747000
€ 7.50
16
0912806024
ref: 16
SCREW (6X25)
0912806024
€ 2.50
