STEERING STEM

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

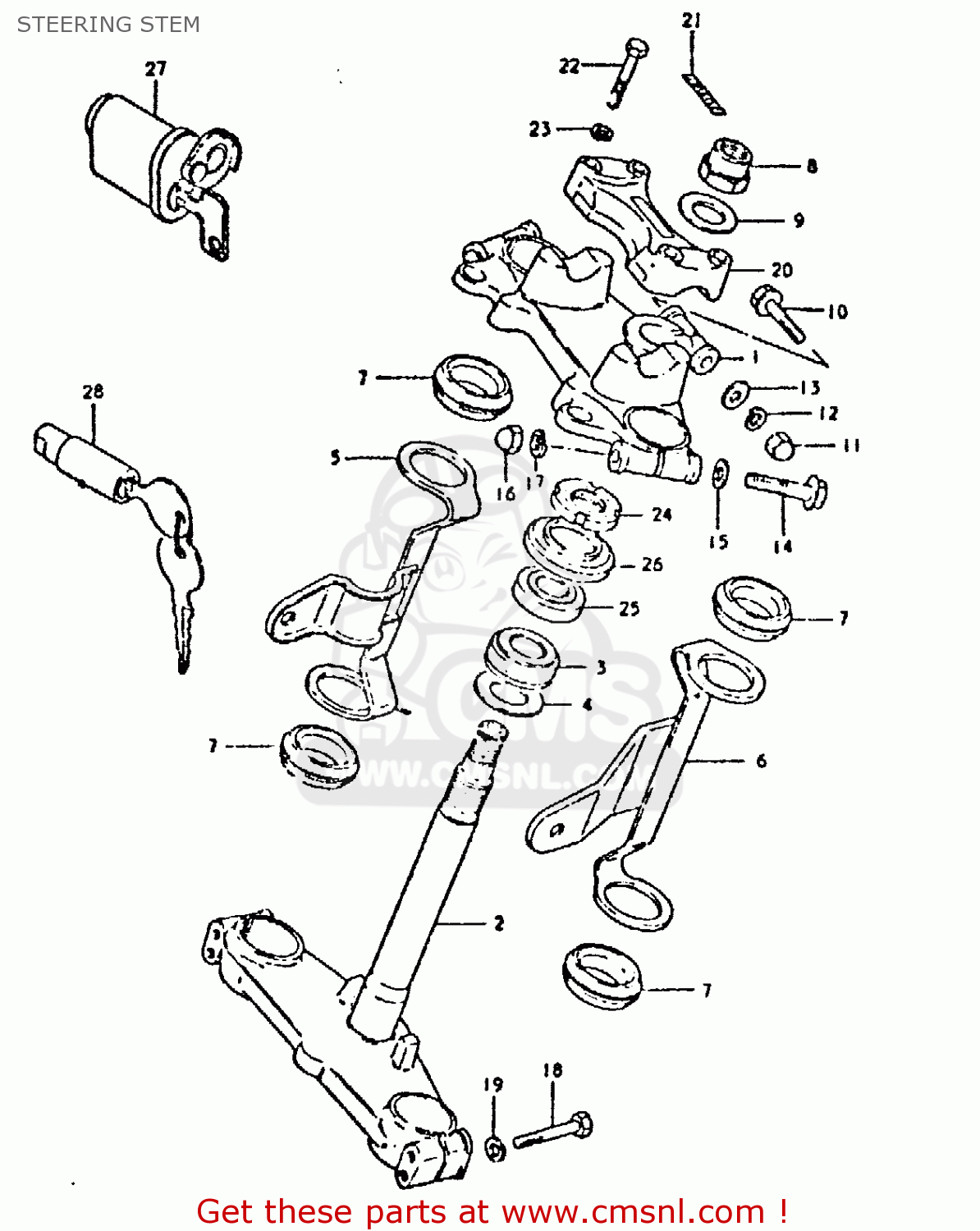

Steering stem diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

STEERING STEM GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
STEERING STEM GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
STEERING STEM GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
5131147200291
ref: 1
HEAD,STEERING STEM
€ 125.00
2-1
5140045841
ref: 2-1
STEM,STEERING
5140045841
€ 175.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-3
NOTUSED
ref: 2-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153045400291
ref: 5
BRACKET,HEADLAMP,RIGHT
5153045400291
€ 35.50
6
5154045400291
ref: 6
BRACKET,HEADLAMP,LEFT
5154045400291
€ 37.50
7
5155347000
ref: 7
CUSHION,HEADLAMP BRACKET
€ 3.50
8
5135345000
ref: 8
NUT,FR FORK UPR BRACKET
5135345000
€ 10.50
9
5135631700
ref: 9
WASHER
5135631700
€ 9.50
10
0151708508
ref: 10
BOLT
0151708508
€ 3.50
11
0831311085
ref: 11
NUT,M8X1.25X12
€ 2.00
12
0832121085
ref: 12
LOCK WASHER
€ 2.50
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14-1
0110710558
ref: 14-1
MODEL T
BOLT 10X55
0110710558
€ 3.50
14-2
0151710558
ref: 14-2
MODEL X
BOLT 10X55
€ 3.00
15
0832211108
ref: 15
WASHER
€ 2.50
16-1
0831311108
ref: 16-1
MODEL T
NUT, LOWER LH
0831311108
€ 2.50
16-2
0914510002
ref: 16-2
MODEL X
NUT
0914510002
€ 4.00
17
0832131108
ref: 17
LOCK WASHER
€ 2.00
18
0110708458
ref: 18
BOLT 8X45
€ 2.50
19
0832131088
ref: 19
WASHER,LOCK,8.
€ 2.00
20
5621145400291
ref: 20
HOLDER,HANDLEBAR
€ 25.50
21
5621245400
ref: 21
EMBLEM,HANDLE CLAMP
5621245400
€ 4.00
22
0120408357
ref: 22
BOLT
0120408357
€ 3.50
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
5163128000
ref: 24
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
25
0926525008
ref: 25
TAPER,ROLLER BEARING
0926525008
€ 48.50
26
5164349001
ref: 26
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
NOTUSED
ref: 28
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
