REAR WHEEL (GSX750ET, GSX750EX)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

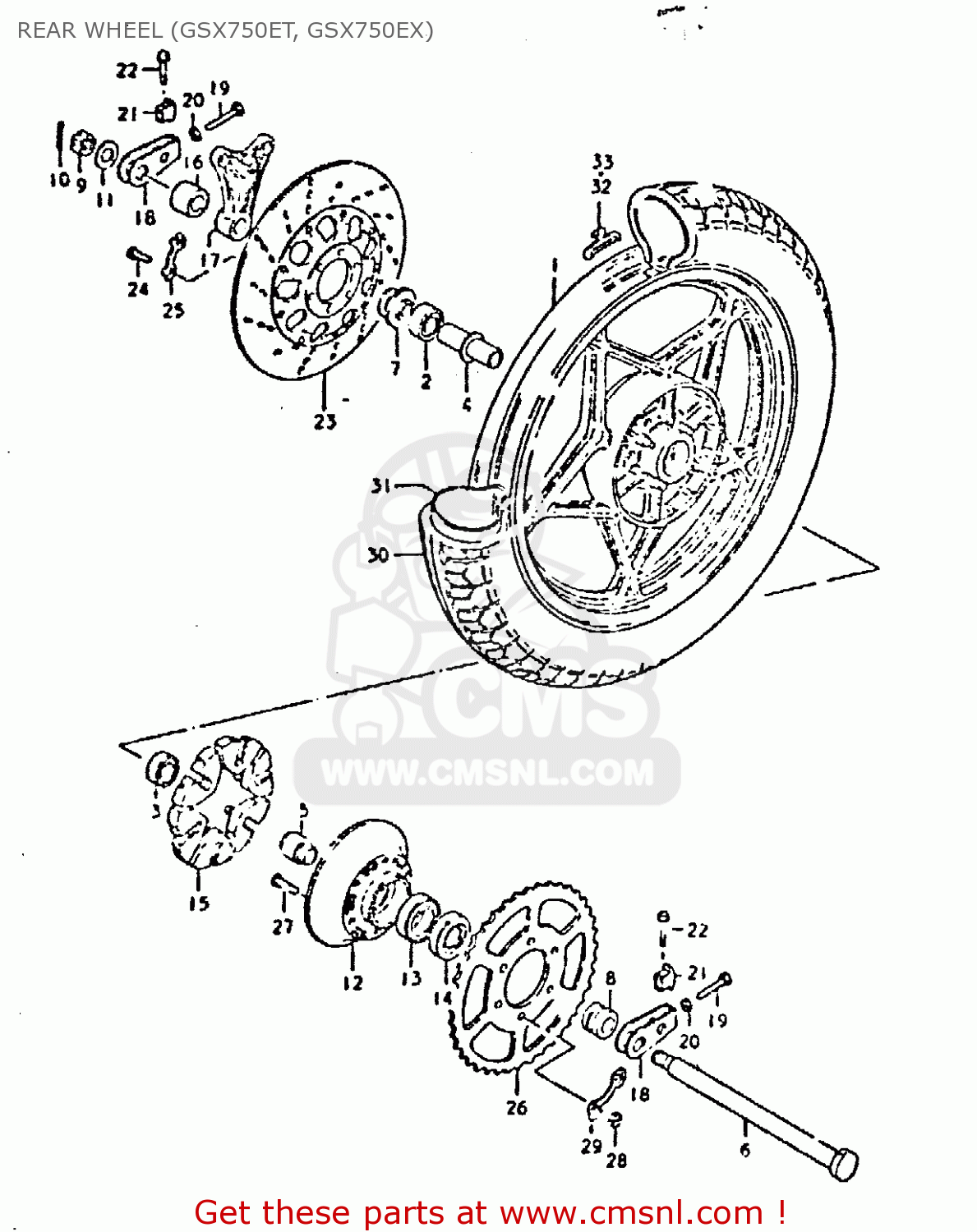

Rear wheel (gsx750et, gsx750ex) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR WHEEL (GSX750ET, GSX750EX) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
REAR WHEEL (GSX750ET, GSX750EX) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
REAR WHEEL (GSX750ET, GSX750EX) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
6411147602
ref: 1
WHEEL, REAR
€ 420.00
2
0813362047
ref: 2
BEARING WHEEL REAR(20X47X14)
0813362047
€ 22.50
3
0815362047
ref: 3
BEARING, LH
0815362047
€ 21.00
4
6473145000
ref: 4
SPACER,REAR HUB BEARING
6473145000
€ 18.50
5
6473331000
ref: 5
SPACER,REAR HUB BEARING
6473331000
€ 20.00
6
6471149000
ref: 6
AXLE,REAR
€ 59.00
7
6474045001
ref: 7
SPACER,REAR AXLE
€ 15.00
8
0918020054
ref: 8
SPACER(20X33X28.3)
0918020054
€ 13.00
9-1
0831431188
ref: 9-1
NUT 18MM
0831431188
€ 5.00
9-2
NOTUSED
ref: 9-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0411140308
ref: 10
PIN,COTTER
0411140308
€ 1.50
11
0916019008
ref: 11
WASHER(19X34X4)
0916019008
€ 3.00
12
6461131001
ref: 12
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363050
ref: 13
BEARING
0811363050
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
0928533001
€ 20.00
15
6465131000
ref: 15
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
16
0918020070
ref: 16
SPACER (20X38X17)
0918020070
€ 10.00
17
6972147011
ref: 17
BRACKET,RR,CALIPER
6972147011
€ 29.00
18
6141031001
ref: 18
FROM 51410-31000
ADJUSTER,CHAIN
6141031001
€ 50.00
19
0910408006
ref: 19
BOLT
0910408006
€ 3.00
20
0831012088
ref: 20
NUT
0831012088
€ 2.00
21
6143331000
ref: 21
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
22
0151708408
ref: 22
BOLT (8X40)
€ 3.50
23
5921018450
ref: 23
DISC,RR BRAKE
5921018450
€ 446.00
24
0910008094
ref: 24
BOLT(8X30)
0910008094
€ 2.50
25
0916908016
ref: 25
WASHER
0916908016
€ 3.50
26
6451145001
ref: 26
SPROCKET,RR
6451145001
€ 82.00
27
0911910002
ref: 27
BOLT
0911910002
€ 3.50
28
0831012108
ref: 28
NUT
0831012108
€ 2.50
29
0916910007
ref: 29
WASHER
0916910007
€ 7.50
30-1
6510045036
ref: 30-1
BS, MODEL T
TIRE
€ 0.00
30-2
6510045430
ref: 30-2
BS, MODEL X
TIRE
€ 0.00
30-3
6510045620
ref: 30-3
DUNLOP, MODEL T
TIRE (4.00H18)
€ 0.00
31
6520049015
ref: 31
TUBE,INNER
€ 39.00
32
5541147001
ref: 32
BALANCER,WHEEL
5541147001
€ 4.00
33
5541247001
ref: 33
BALANCER,WHEEL
5541247001
€ 3.50
