CYLINDER

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

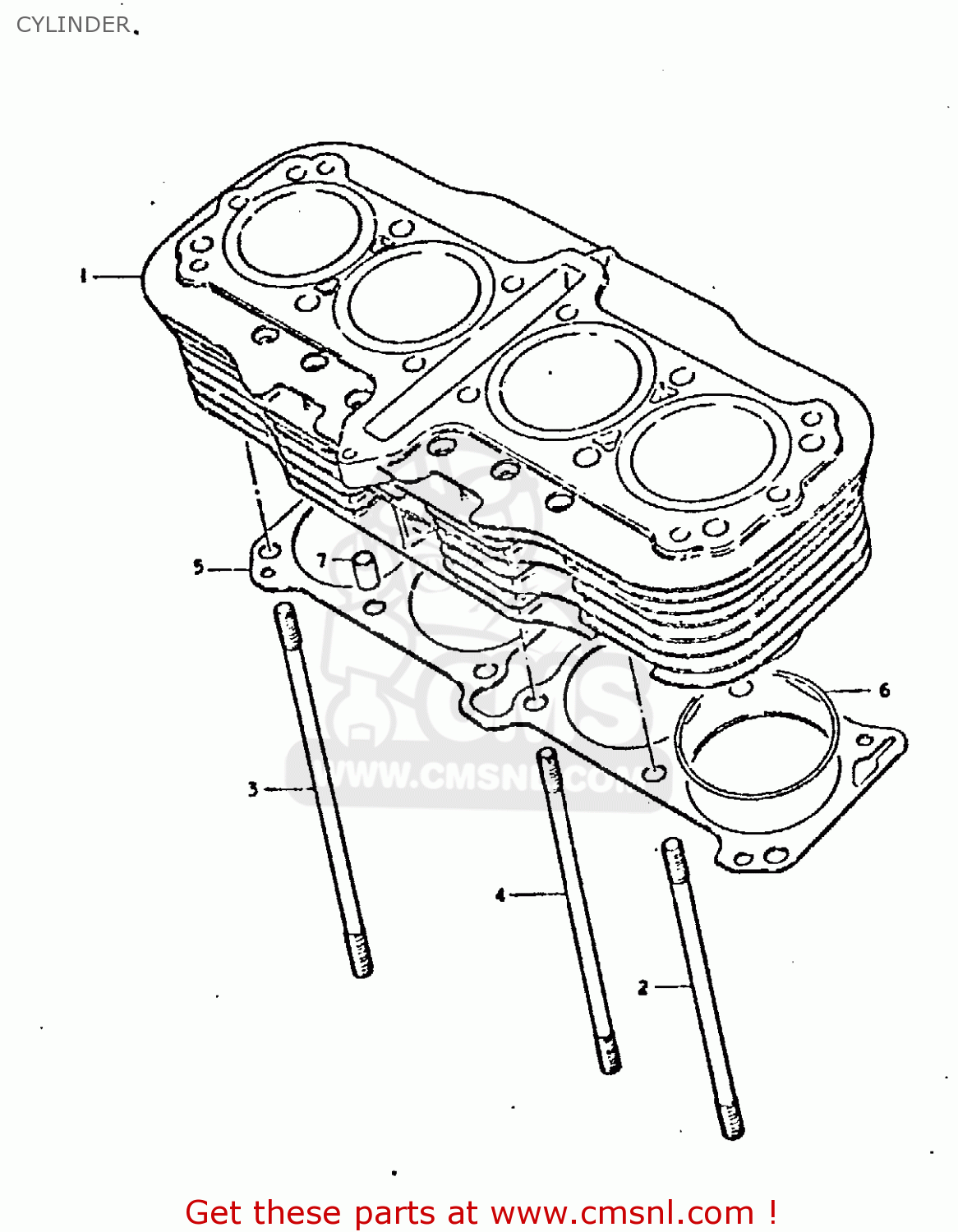

Cylinder diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CYLINDER GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CYLINDER GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

1121045400
ref: 1

CYLINDER

€ 785.50

2

0910810032
ref: 2

STUD

€ 5.50

3

0910810034
ref: 3

STUD

€ 7.00

4

0910810033
ref: 4

STUD

€ 12.50

5

1124145400
ref: 5

GASKET,CYLINDER (MCA)

€ 23.50

6

0928070001
ref: 6

O RING(D:2,ID:70)

€ 7.50

7

0920613006
ref: 7

PIN

€ 9.00
