FUEL COCK (MODEL X)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

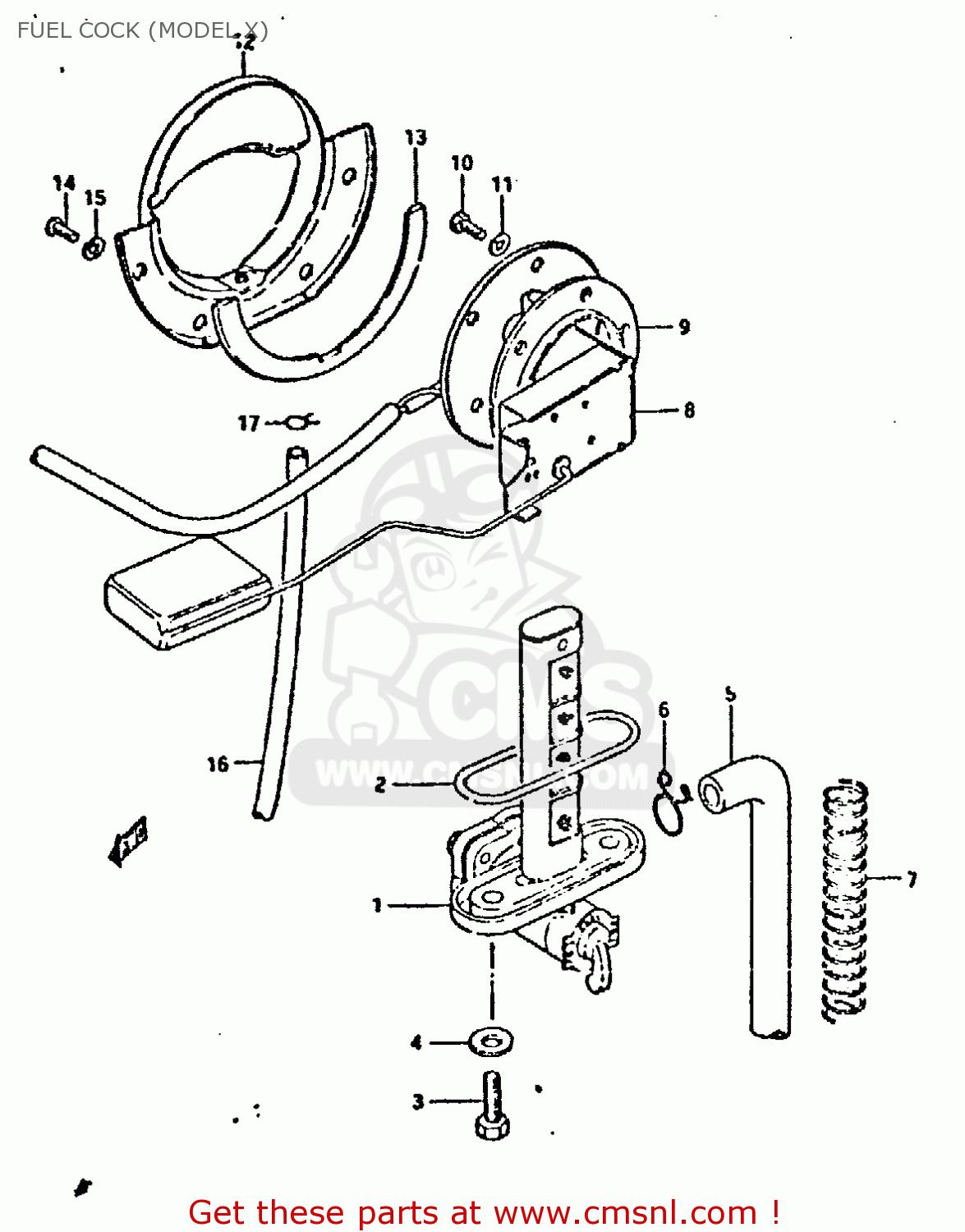

Fuel cock (model x) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

4430034470
ref: 1

COCK ASSEMBLY,FUEL

€ 104.50

4434849170
ref: 2

O RING

€ 3.50

0912806024
ref: 3

SCREW (6X25)

€ 2.50

0916806010
ref: 4

GASKET

€ 2.00

0934307091
ref: 5

HOSE

€ 17.50

0940110403
ref: 6

CLIP

€ 7.00

0944013020
ref: 7

SPRING

€ 14.50

8-1

NOTUSED
ref: 8-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-2

3481045411
ref: 8-2
GSX750EX:E2, E4, E6,

GAUGE, FUEL LEVEL (24L)

€ 86.00

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

0110405108
ref: 10

BOLT

€ 1.50

0832121058
ref: 11

LOCK WASHER

€ 2.00

3488549003
ref: 12

PLATE,FUEL DRAIN

€ 21.00

3488849000
ref: 13

GASKET,FUEL DRAIN PLATE (NAS)

€ 15.00

0211205088
ref: 14

SCREW

€ 2.00

0832121058
ref: 15

LOCK WASHER

€ 2.00

0934305165
ref: 16

HOSE,FUEL

€ 13.00

0940108402
ref: 17

CLIP

€ 1.50
