REAR COMBINATION LAMP (E2, E4, E21)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

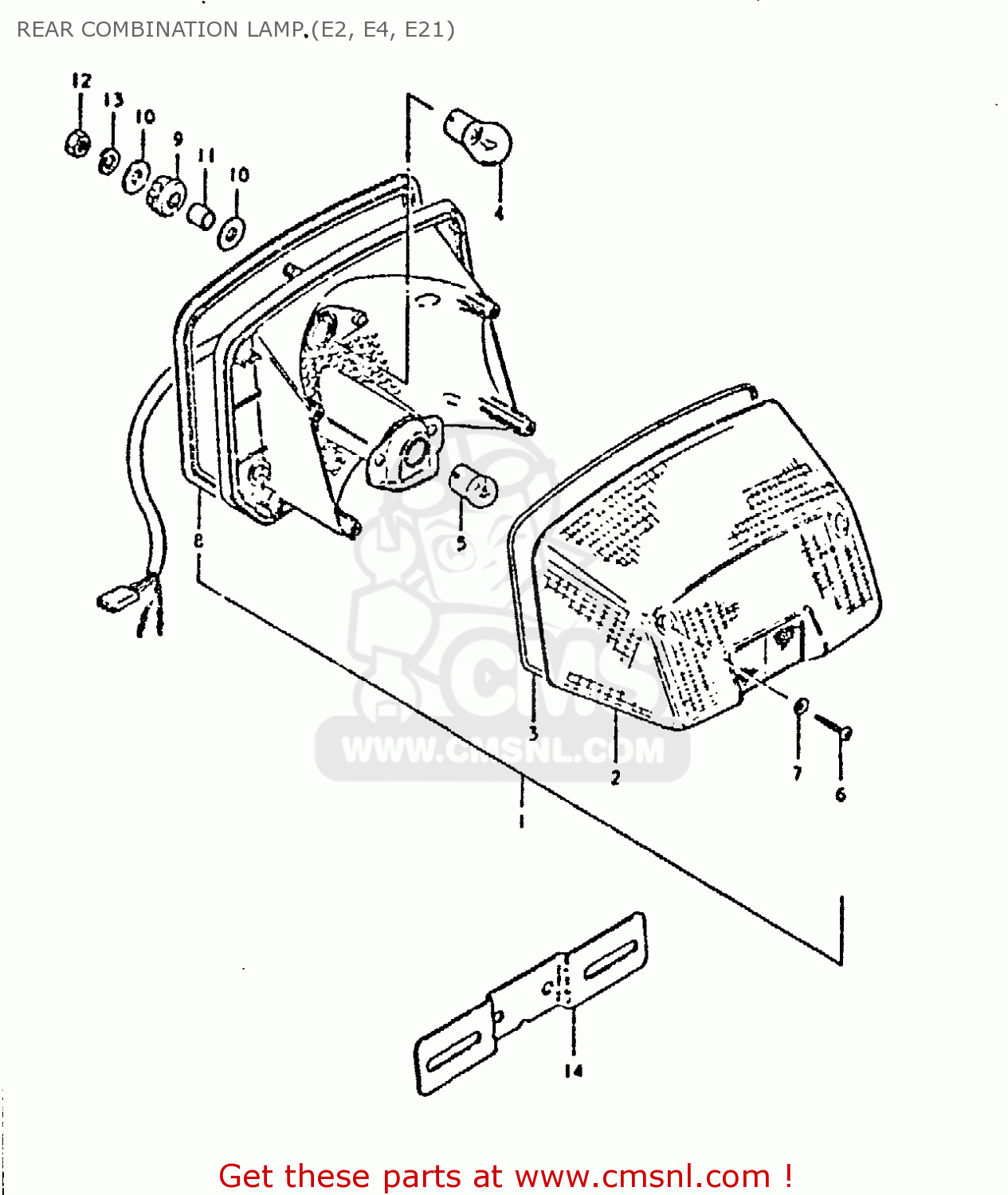

Rear combination lamp (e2, e4, e21) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR COMBINATION LAMP (E2, E4, E21) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
REAR COMBINATION LAMP (E2, E4, E21) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
REAR COMBINATION LAMP (E2, E4, E21) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
3571049221
ref: 1
FROM 35710-49220
LAMP ASSY, TAIL
€ 202.50
2
3571249221
ref: 2
FROM 35712-49220
LENS
3571249221
€ 71.50
3
3571349230
ref: 3
GASKET (NAS)
3571349230
€ 6.00
4
0947112057
ref: 4
BULB 12V21/5W
0947112057
€ 6.00
5
0947112058
ref: 5
BULB
0947112058
€ 4.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
3573349230
ref: 8
GASKET,REAR COMBINATION LAMP
3573349230
€ 10.50
9
0932009010
ref: 9
CUSHION
0932009010
€ 2.50
10
0916006060
ref: 10
WASHER
0916006060
€ 2.00
11
0918006006
ref: 11
SPACER (6.8X10X11.5)
0918006006
€ 3.00
12
0831011068
ref: 12
NUT
0831011068
€ 2.50
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
3592749210
ref: 14
PLATE, LICENSE
€ 10.00
