REAR BRAKE HOSE

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

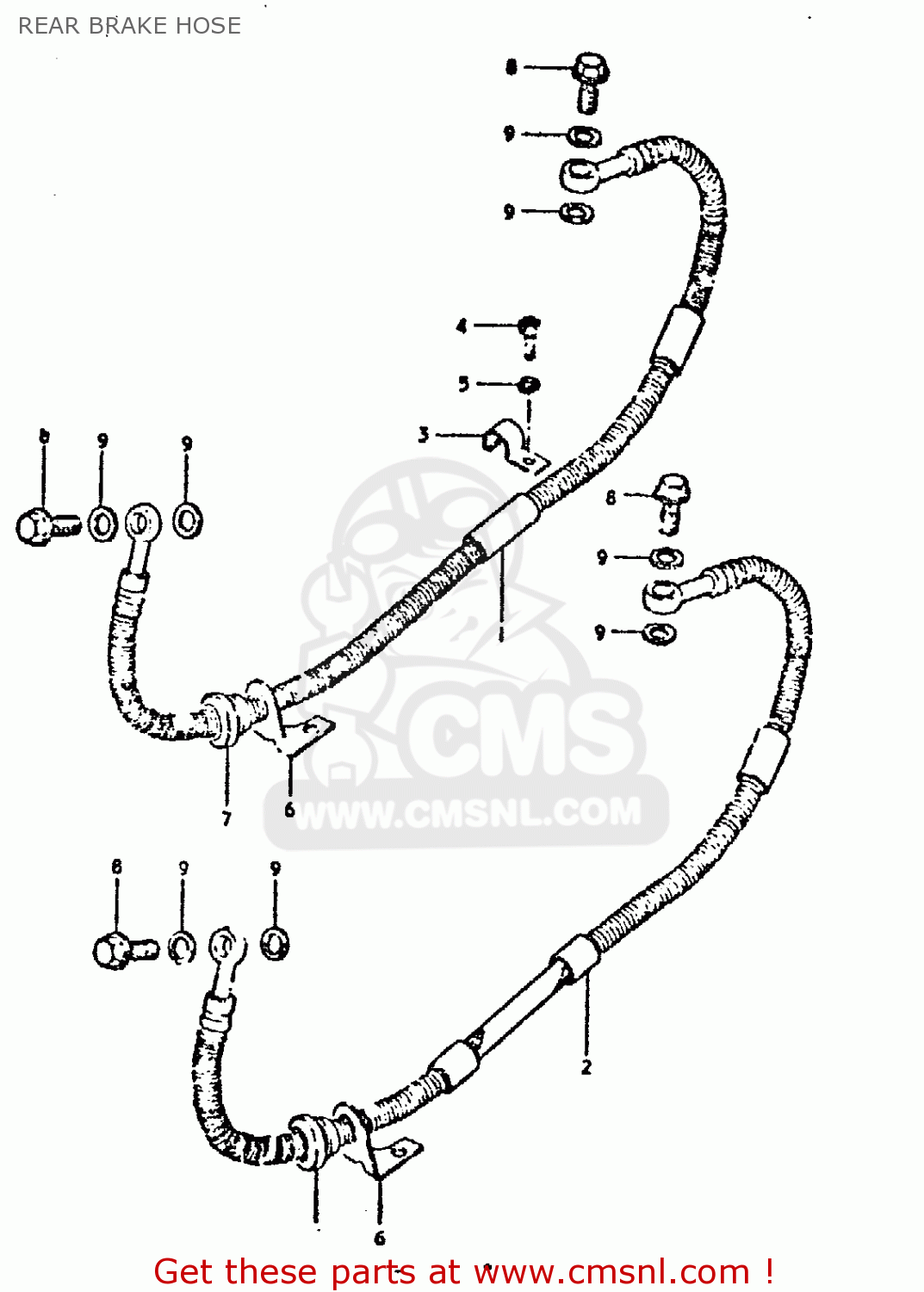

Rear brake hose diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

6948049002
ref: 1
FOR 61100-45840-019

HOSE,REAR BRAKE

€ 62.50

6948049003
ref: 2
FOR 61100-45841-019

HOSE,REAR BRAKE

€ 76.50

6926849000
ref: 3

CLAMP,REAR BRAKE HOSE

€ 5.50

0912806013
ref: 4

SCREW(6X8)

€ 1.50

0832121068
ref: 5

LOCK WASHER

€ 2.50

6924347000
ref: 6

GUIDE,BRAKE HOSE

€ 5.50

5924436200
ref: 7

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0936010007
ref: 8

BOLT,UNION

€ 6.50

0916110005
ref: 9

WASHER

€ 2.00
