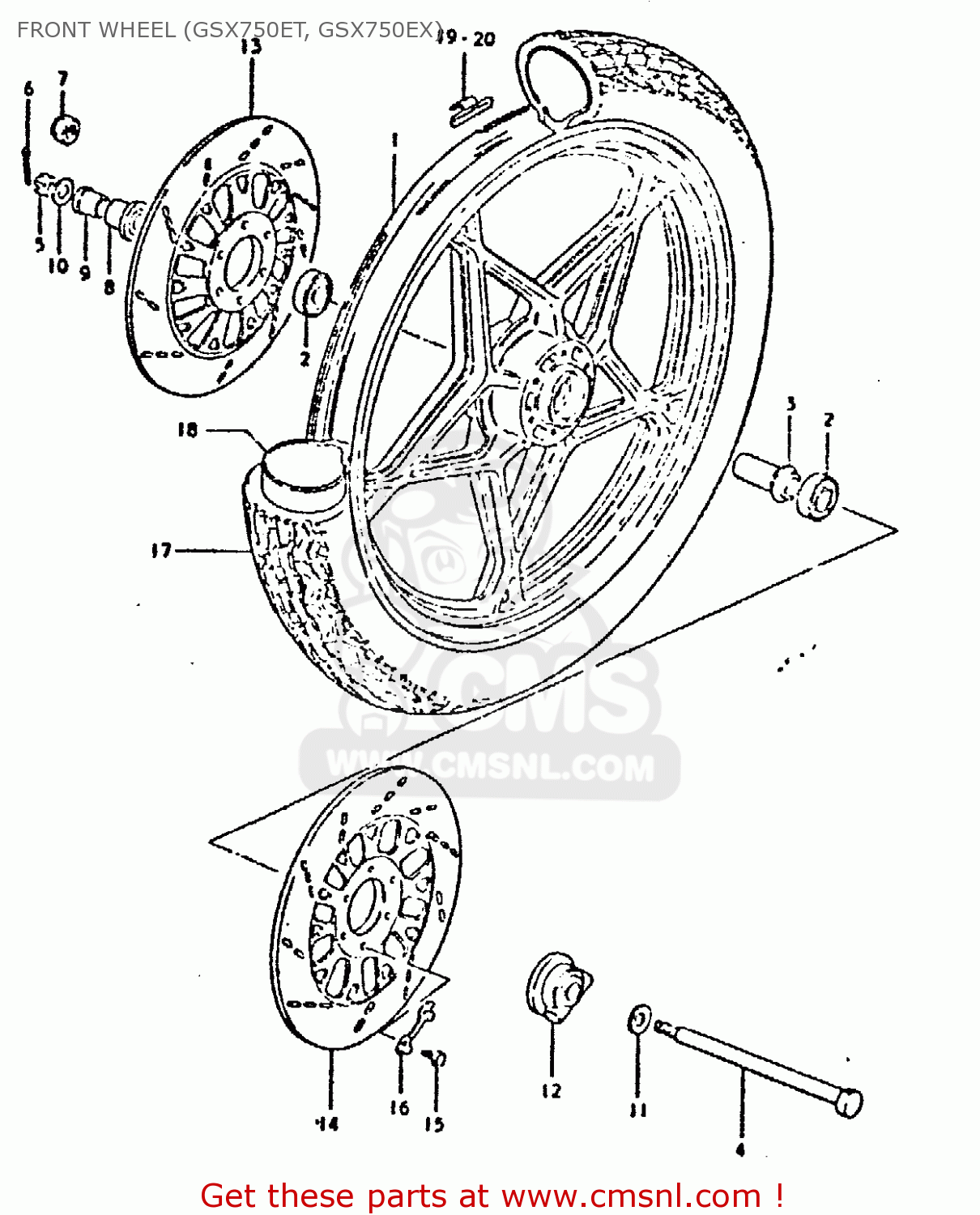

FRONT WHEEL (GSX750ET, GSX750EX)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

Front wheel (gsx750et, gsx750ex) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT WHEEL (GSX750ET, GSX750EX) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT WHEEL (GSX750ET, GSX750EX) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT WHEEL (GSX750ET, GSX750EX) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
5411147604
ref: 1
WHEEL, FRONT
€ 491.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471149000
ref: 4
AXLE,FR
5471149000
€ 79.50
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
5474018402
ref: 8
SPACER,FR AXLE,R
5474018402
€ 18.50
9
5474149101
ref: 9
SPACER
5474149101
€ 14.00
10
0832221128
ref: 10
WASHER
0832221128
€ 2.00
11
0916015002
ref: 11
WASHER(15.5X26X2.3)
0916015002
€ 2.00
12
5460049100
ref: 12
BOX ASSY,SPEEDOMETER GEAR
5460049100
€ 90.00
13
5921145250
ref: 13
DISC,FR BRAKE,R
5921145250
€ 149.00
14
5922145250
ref: 14
DISC,FR BRAKE,L
5922145250
€ 149.00
15
0910008140
ref: 15
BOLT(8X25)
0910008140
€ 2.00
16
0916908016
ref: 16
WASHER
0916908016
€ 3.50
17-1
5510045031
ref: 17-1
BS, MODEL T
TIRE,FRONT
€ 0.00
17-2
5510047615
ref: 17-2
DUNLOP, MODEL T
TIRE,FRONT
€ 0.00
17-3
5510045430
ref: 17-3
BS, MODEL X
TIRE,FRONT
€ 0.00
18
5520015010
ref: 18
TUBE,INNER
€ 41.00
19
5541147001
ref: 19
BALANCER,WHEEL
5541147001
€ 4.00
20
5541247001
ref: 20
BALANCER,WHEEL
5541247001
€ 3.50
