FUEL TANK (MODEL X : 24L)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

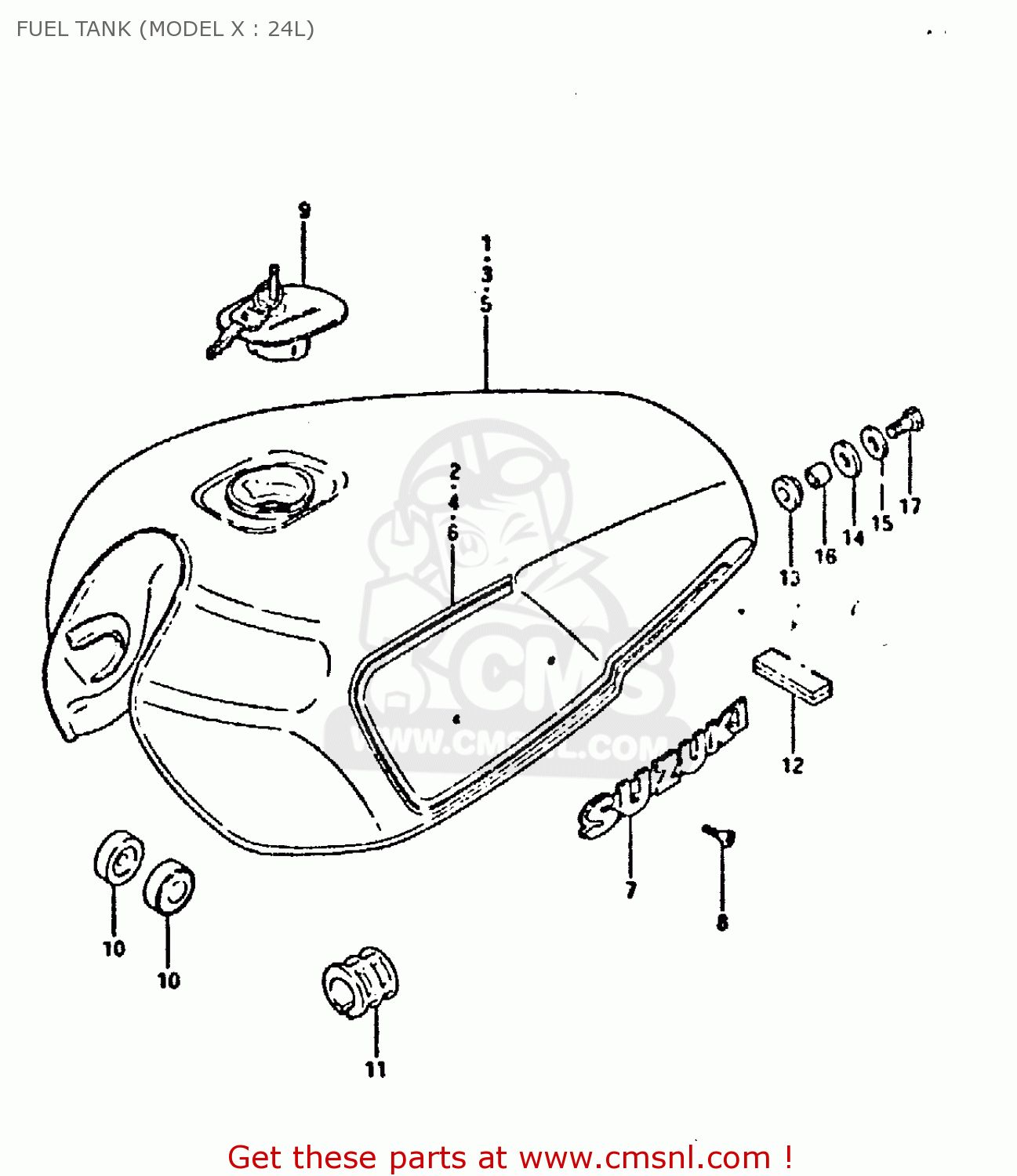

Fuel tank (model x : 24l) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FUEL TANK (MODEL X : 24L) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FUEL TANK (MODEL X : 24L) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FUEL TANK (MODEL X : 24L) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
441004581008E
ref: 1
TANK, FUEL (BLACK)
€ 655.50
2
681104545071L
ref: 2
TAPE SET
€ 0.00
3
441004582007P
ref: 3
TANK, FUEL (RED)
€ 655.50
4
681104545073K
ref: 4
TAPE SET
€ 56.50
5
441004545004Y
ref: 5
TANK, FUEL (BLUE)
441004545004Y
€ 655.50
6
681104545073K
ref: 6
TAPE SET
€ 56.50
7
6811145010
ref: 7
EMBLEM,FUEL TANK
6811145010
€ 26.00
8
0213203065
ref: 8
SCREW 3X6
0213203065
€ 2.00
9
4420049702
ref: 9
CAP SET,FUEL TANK
€ 121.00
10
0932910007
ref: 10
CUSHION
0932910007
€ 3.00
11
4454249200
ref: 11
CUSHION,FUEL TANK,UPPER
4454249200
€ 5.50
12
0932901005
ref: 12
CUSHION
0932901005
€ 11.50
13
0932012010
ref: 13
CUSHION
0932012010
€ 3.00
14
0932012023
ref: 14
CUSHION
0932012023
€ 2.50
15
0916008002
ref: 15
WASHER (8.5X29X1.6)
0916008002
€ 2.00
16
0918008067
ref: 16
SPACER(8.5X12X19)
0918008067
€ 2.50
17
0110708308
ref: 17
BOLT (8X30)
0110708308
€ 2.50
