GENERATOR

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

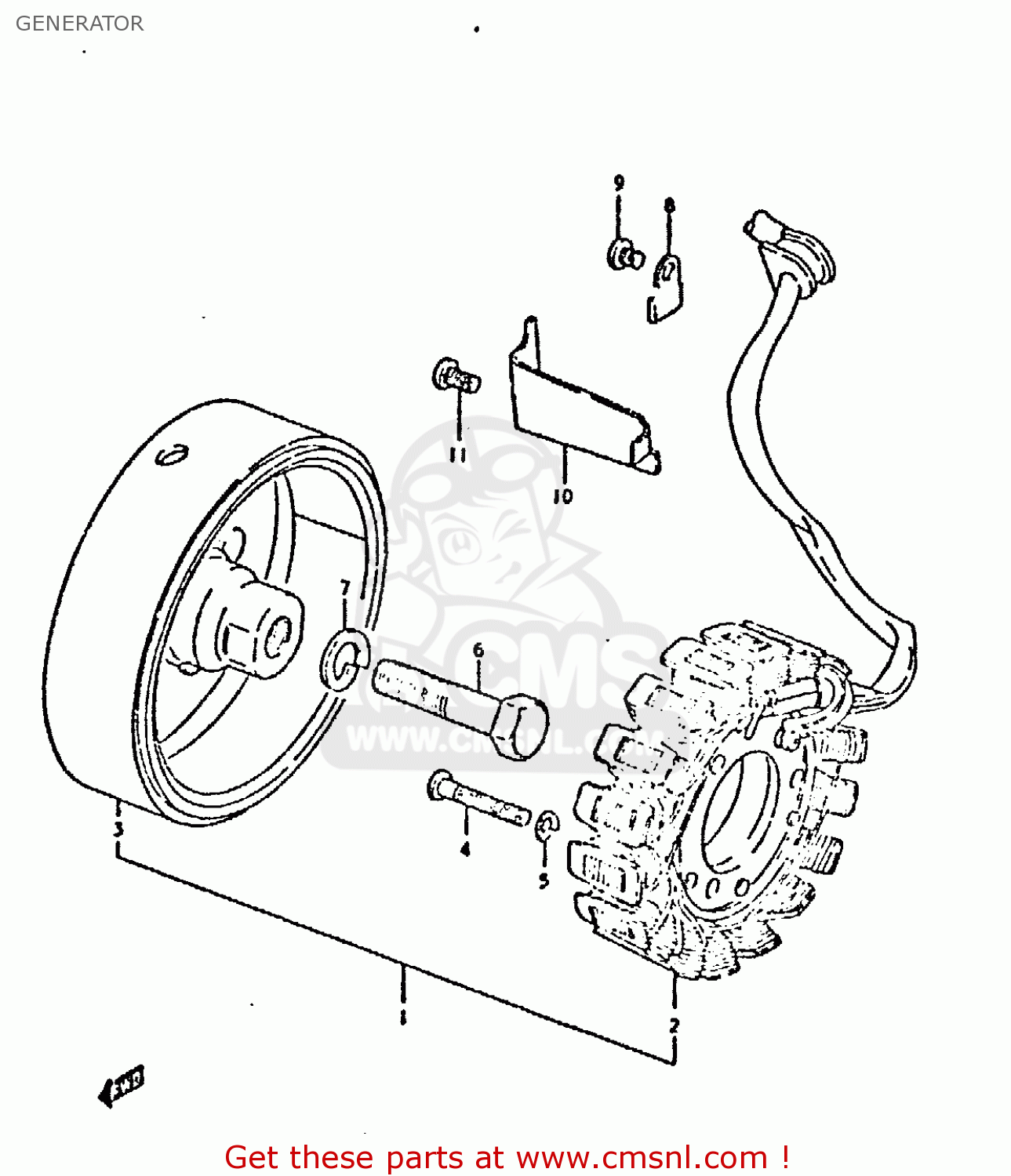

Generator diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

3140045110
ref: 1

GENERATOR ASSEMBLY

€ 341.00

3140145110
ref: 2

STATOR ASSEMBLY

€ 341.00

3140245110
ref: 3

ROTOR ASSEMBLY

€ 333.00

0211205308
ref: 4

SCREW

€ 2.00

0832121058
ref: 5

LOCK WASHER

€ 2.50

0110712458
ref: 6

BOLT 12X45

€ 7.50

0832131128
ref: 7

WASHER,LOCK 12

€ 3.00

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211205068
ref: 9

SCREW

€ 5.50

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.50

0211205108
ref: 11

SCREW

€ 3.00
