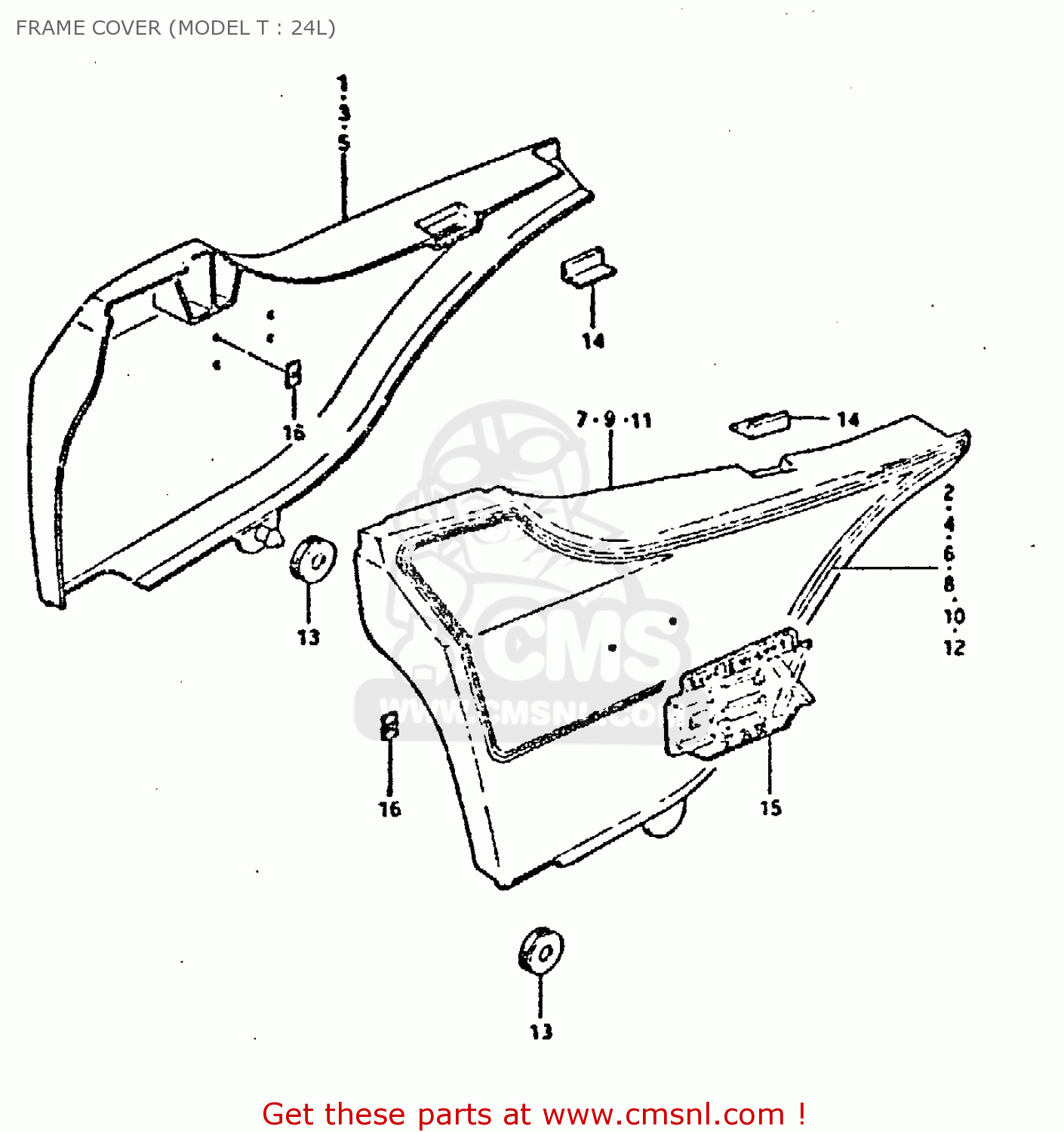

FRAME COVER (MODEL T : 24L)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

Frame cover (model t : 24l) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRAME COVER (MODEL T : 24L) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRAME COVER (MODEL T : 24L) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

471114920008E
ref: 1

COVER, FRAME RH (BLACK)

€ 94.00

2

681364542071P
ref: 2

TAPE, RH

€ 18.50

3

471114920007P
ref: 3

COVER, FRAME RH (RED)

€ 94.00

4

681364542060T
ref: 4

TAPE, RH

€ 0.00

5

471114920004Y
ref: 5

COVER, FRAME RH (BLUE)

€ 0.00

6

681364542065Y
ref: 6

TAPE, RH

€ 0.00

7

472114920008E
ref: 7

COVER, FRAME LH (BLACK)

€ 69.50

8

681464542071P
ref: 8

TAPE, LH

€ 19.50

9

472114920007P
ref: 9

COVER, FRAME LH (RED)

€ 69.50

10

681464542060T
ref: 10

TAPE, LH

€ 16.50

11

472114920004Y
ref: 11

COVER, FRAME LH (BLUE)

€ 0.00

12

681464542065Y
ref: 12

TAPE, LH

€ 16.50

13

0932008018
ref: 13

CUSHION

€ 4.00

14

4711702400
ref: 14

CUSHION,FRAME COVER

€ 2.00

15

6813145410
ref: 15

EMBLEM,FRAME COVER

€ 23.50

16

0914803002
ref: 16

NUT

€ 3.00
