FRONT MASTER CYLINDER

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

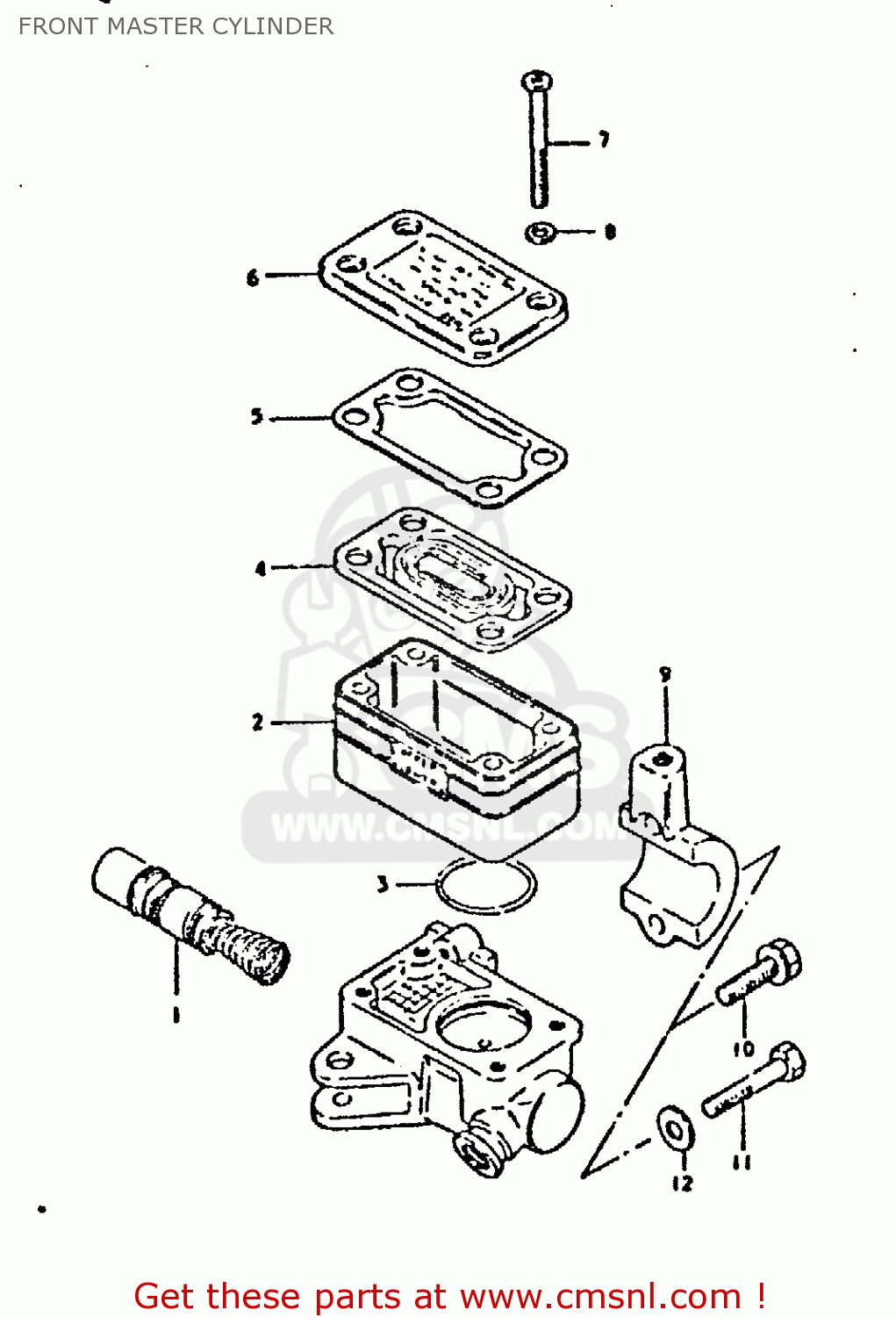

Front master cylinder diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT MASTER CYLINDER GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT MASTER CYLINDER GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

0

5960045100
ref: 0

CYLINDER ASSY,FR MASTER

€ 279.50

1-1

5960045830
ref: 1-1
MODEL T

CUP SET,MASTER CYLINDER

€ 41.50

1-2

5960045831
ref: 1-2
MODEL X

PISTON & CUP SET

€ 41.50

2

5968745100
ref: 2

RESERVOIR

€ 20.50

3

5968645100
ref: 3

O RING

€ 9.50

4

5966745100
ref: 4

DIAPHRAGM

€ 11.50

5-1

5966845100
ref: 5-1
MODEL T

PLATE,DIAPHRAGM

€ 14.50

5-2

5966845101
ref: 5-2
MODEL X

PLATE,DIAPHRAGM

€ 14.50

6

5966945100
ref: 6

CAP

€ 27.50

7

5969145100
ref: 7

SCREW

€ 3.00

8

5969245100
ref: 8

WASHER

€ 3.00

9

5967145100
ref: 9

HOLDER

€ 17.50

10

5969345100
ref: 10
MODEL T

BOLT,MASTER CYLINDER H

€ 2.00

11

0110706258
ref: 11
MODEL X

BOLT

€ 2.00

12

0632221068
ref: 12
MODEL X

WASHER

€ 0.00
