WIRING HARNESS

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

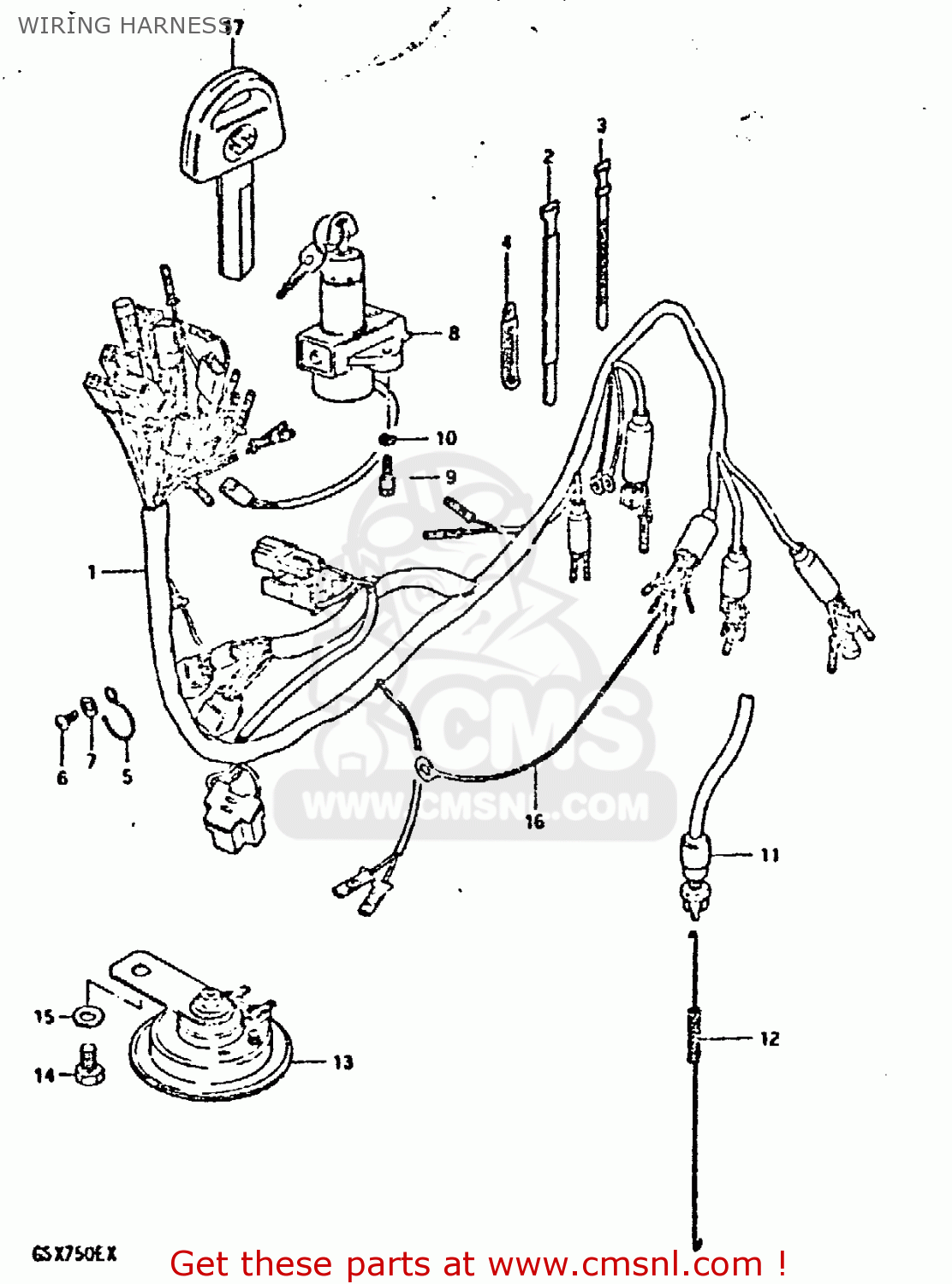

Wiring harness diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

WIRING HARNESS GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
WIRING HARNESS GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
WIRING HARNESS GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
3661045400
ref: 1
HARNESS,WIRING
3661045400
€ 276.00
2
0940718301
ref: 2
CLAMP
0940718301
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
0940712402
€ 3.00
4-1
0940406414
ref: 4-1
CLAMP
€ 3.00
4-2
0940406401
ref: 4-2
CLAMP L:35
0940406401
€ 2.50
4-3
0940408401
ref: 4-3
CLAMP
€ 3.50
5
3661944000
ref: 5
GUIDE,WIRING HARNESS
3661944000
€ 2.50
6
0211206128
ref: 6
SCREW 6X12
0211206128
€ 2.00
7
0832221068
ref: 7
WASHER
0832221068
€ 2.00
8-1
3710049200
ref: 8-1
LOCK ASSEMBLY,STEERING
€ 141.00
8-2
NOTUSED
ref: 8-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
3715247010
ref: 9
BOLT
€ 3.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
3774004571
ref: 11
FROM 37740-04570
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
12-1
0944306030
ref: 12-1
FOR CAST WHEEL
SPRING
€ 4.50
12-2
0944306033
ref: 12-2
FOR SPOKE WHEEL
SPRING
0944306033
€ 3.00
13-1
3850247000
ref: 13-1
HORN ASSEMBLY,LOW PITCH
€ 77.00
13-2
NOTUSED
ref: 13-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14
0110708128
ref: 14
BOLT 8X12
0110708128
€ 2.50
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
16-1
3685145400
ref: 16-1
MODEL T, TO 36851-45
WIRE
€ 14.00
16-2
3685145401
ref: 16-2
MODEL X
WIRE
€ 14.00
17
3714647010
ref: 17
OPT
KEY,BLANK
3714647010
€ 15.00
