FRONT FORK (GSX750ET ~F.NO.504681, GSX750T ~F.NO.100291)

GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

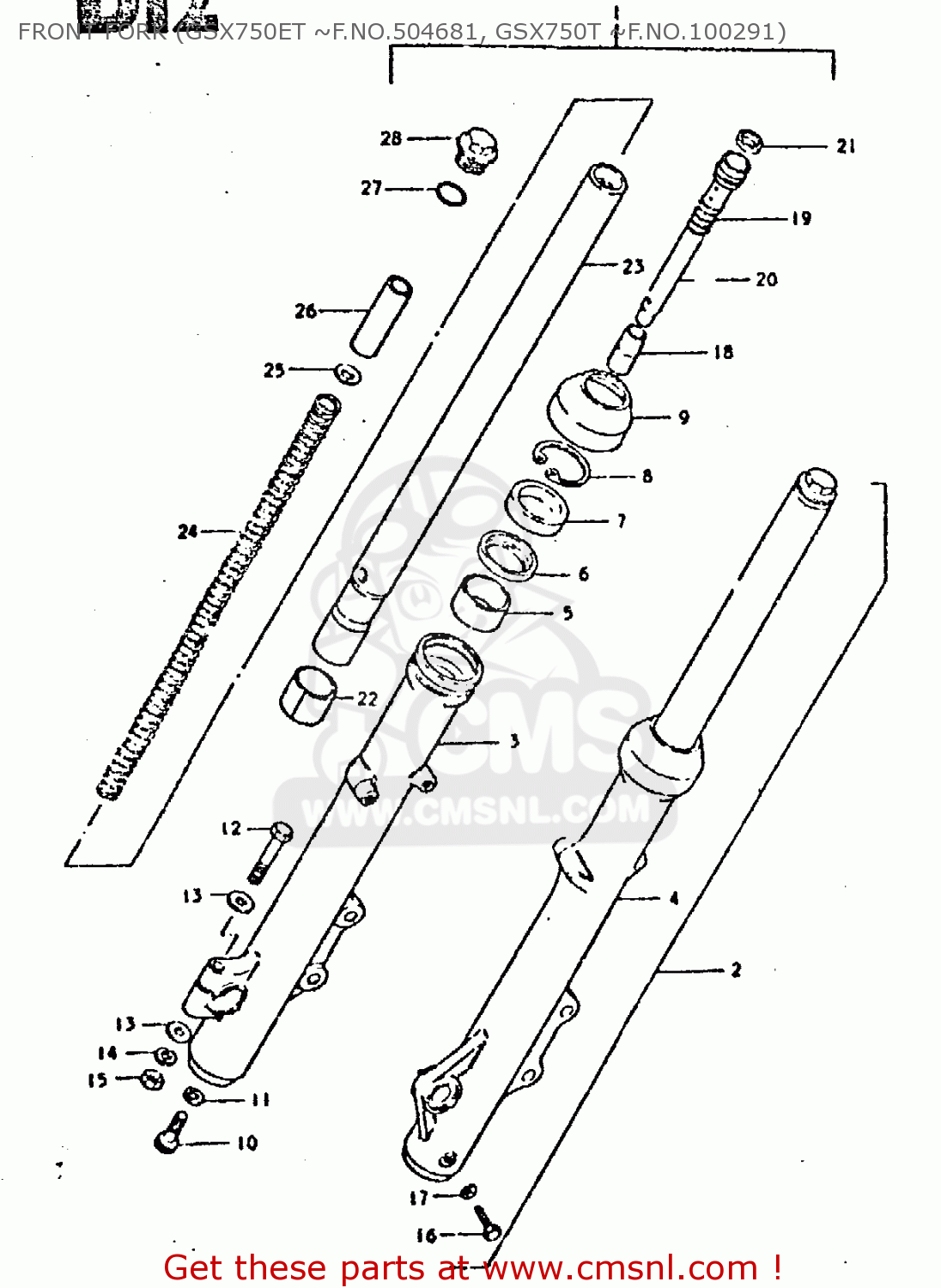

Front fork (gsx750et ~f.no.504681, gsx750t ~f.no.100291) diagram GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT FORK (GSX750ET ~F.NO.504681, GSX750T ~F.NO.100291) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT FORK (GSX750ET ~F.NO.504681, GSX750T ~F.NO.100291) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT FORK (GSX750ET ~F.NO.504681, GSX750T ~F.NO.100291) GSX750E 1981 (X) (1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
5110345410
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110445410
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113045400
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 0.00
4
5114045400
ref: 4
TUBE,FORK,LEFT,OUTER
5114045400
€ 122.00
5
5115245400
ref: 5
BUSH,GUIDE
5115245400
€ 14.00
6
5116845031
ref: 6
SPACER,SEAL
5116845031
€ 5.00
7
5115345030
ref: 7
OIL SEAL,FRONT FORK
5115345030
€ 14.00
8
5115631231
ref: 8
CIRCLIP,FORK OIL SEAL
5115631231
€ 3.50
9
5157131232
ref: 9
BOOT
€ 19.50
10
5114748130
ref: 10
BOLT(8X27)
5114748130
€ 3.50
11
5114831030
ref: 11
GASKET (NAS)
5114831030
€ 4.00
12
0110708508
ref: 12
BOLT 8X50
€ 3.00
13
0832221088
ref: 13
WASHER
0832221088
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0831012088
ref: 15
NUT
0831012088
€ 2.00
16
0910006011
ref: 16
BOLT(6X8)
0910006011
€ 2.50
17
5118331030
ref: 17
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
18
5119545030
ref: 18
PIECE,OIL LOCK
5119545030
€ 16.00
19
5117745030
ref: 19
SPRING,FORK REBOUND
5117745030
€ 4.00
20
5114645410
ref: 20
CYLINDER
€ 0.00
21
5119621230
ref: 21
RING, PISTON
€ 0.00
22
5112145400
ref: 22
PISTON
5112145400
€ 22.00
23
5111045400
ref: 23
TUBE,FORK,INNER
5111045400
€ 196.00
24-1
5117145410
ref: 24-1
SPRING (L:557.8)
€ 40.00
24-2
5117145730
ref: 24-2
SPRING
5117145730
€ 40.00
25
5119247200
ref: 25
WASHER,SPRING
5119247200
€ 2.50
26-1
5117645410
ref: 26-1
SPACER (L:50)
€ 3.50
26-2
5117645411
ref: 26-2
SPACER (L:74.4)
5117645411
€ 3.50
27
5111731030
ref: 27
O-RING
€ 3.50
28
5135131030
ref: 28
CAP,INNER TUBE
5135131030
€ 34.50
