CARBURETOR

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

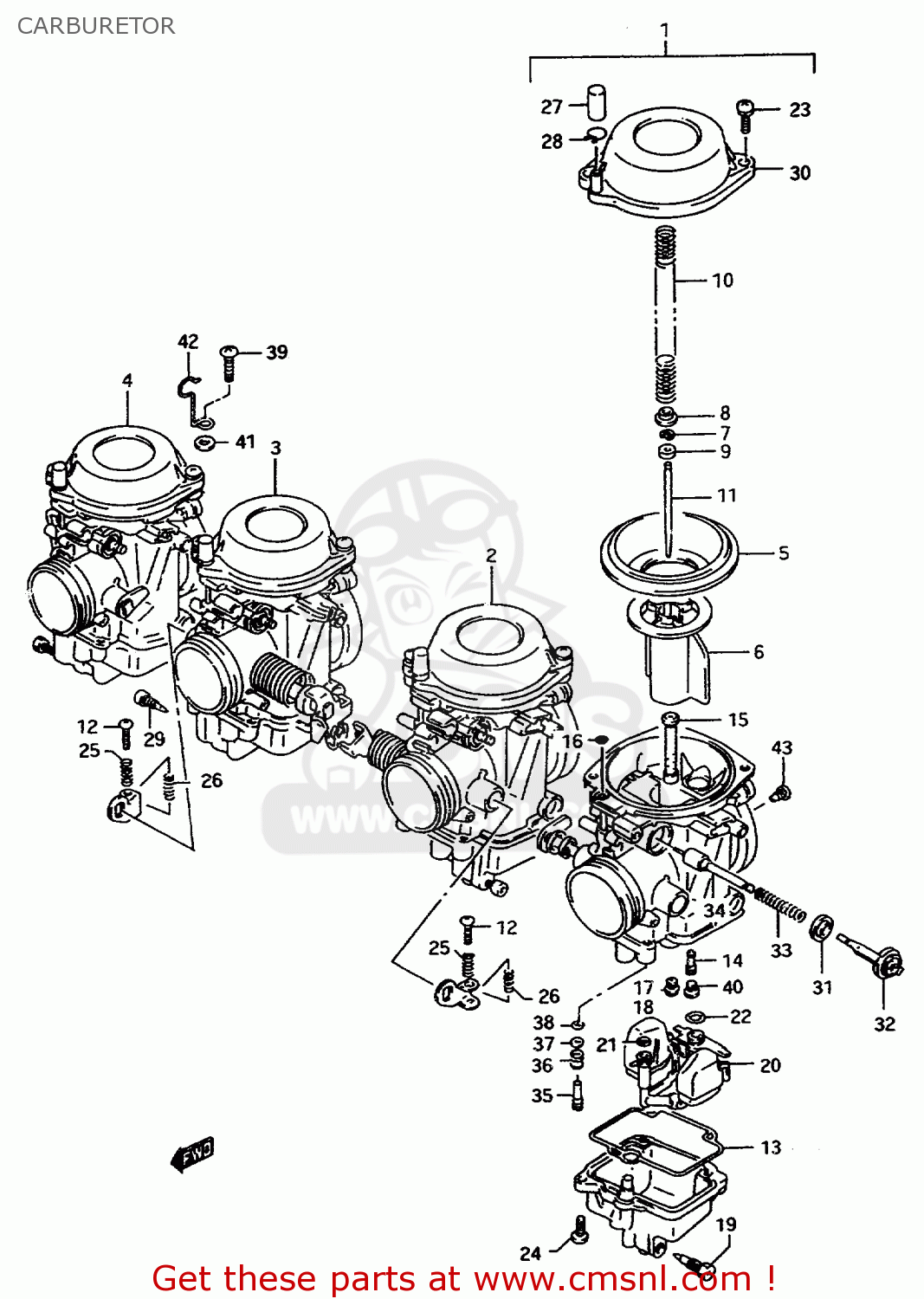

Carburetor diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

CARBURETOR GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37
CARBURETOR GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37
CARBURETOR GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37
prices are in EUR
ref
part #
description
quantity
1-1
1320120CA0
ref: 1-1
CARBURETOR ASSY, LH
€ 492.50
1-2
1320120C50
ref: 1-2
E18
CARBURETOR ASSY, LH
€ 0.00
1-3
1320120CD0
ref: 1-3
E22
CARBURETOR ASSY, LH
€ 0.00
1-4
1320120C70
ref: 1-4
E24
CARBURETOR ASSY, LH
€ 0.00
1-5
1320120C91
ref: 1-5
P37
CARBURETOR ASSY, LH
€ 0.00
2-1
1320220CA0
ref: 2-1
CARBURETOR ASSY, ML
€ 403.00
2-2
1320220C50
ref: 2-2
E18
CARBURETOR ASSY, ML
€ 0.00
2-3
1320220CD0
ref: 2-3
E22
CARBURETOR ASSY, ML
€ 403.00
2-4
1320220C70
ref: 2-4
E24
CARBURETOR ASSY, ML
€ 428.50
2-5
1320220C91
ref: 2-5
P37
CARBURETOR ASSY, ML
€ 0.00
3-1
1320320CA0
ref: 3-1
CARBURETOR ASSY, MR
€ 403.00
3-2
1320320C50
ref: 3-2
E18
CARBURETOR ASSY, MR
€ 0.00
3-3
1320320CD0
ref: 3-3
E22
CARBURETOR ASSY, MR
€ 403.00
3-4
1320320C70
ref: 3-4
E24
CARBURETOR ASSY,MR
1320320C70
€ 533.50
3-5
1320320C91
ref: 3-5
P37
CARBURETOR ASSY, MR
€ 0.00
4-1
1320420CA0
ref: 4-1
CARBURETOR ASSY, RH
€ 403.00
4-2
1320420C50
ref: 4-2
E18
CARBURETOR ASSY, RH
€ 0.00
4-3
1320420CD0
ref: 4-3
E22
CARBURETOR ASSY, RH
€ 403.00
4-4
1320420C70
ref: 4-4
E24
CARBURETOR ASSY, RH
€ 428.50
4-5
1320420C91
ref: 4-5
P37
CARBURETOR ASSY, RH
€ 0.00
5
1350717C01
ref: 5
DIAPHRAGM
1350717C01
€ 24.50
6
1350117C00
ref: 6
VALVE,PISTON
1350117C00
€ 69.50
7
1339431210
ref: 7
CLIP,NEEDLE
1339431210
€ 3.50
8
1338242A00
ref: 8
RING
1338242A00
€ 3.50
9
1338744030
ref: 9
RING
1338744030
€ 5.00
10-1
1341707C30
ref: 10-1
SPRING
1341707C30
€ 9.00
10-2
1341742A00
ref: 10-2
E18,E24
SPRING
1341742A00
€ 6.00
11-1
1338320C00
ref: 11-1
E18
NEEDLE,JET
1338320C00
€ 16.50
11-2
1338320C30
ref: 11-2
E18
NEEDLE,JET
€ 11.50
12
1326744B00
ref: 12
ML:2,MR:1
SCREW
1326744B00
€ 3.50
13
1325844B00
ref: 13
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
14-1
0949235010
ref: 14-1
JET,PILOT(37.5)
0949235010
€ 10.50
14-2
0949232006
ref: 14-2
E18
JET,PILOT(32.5)
0949232006
€ 8.50
15-1
0949400630
ref: 15-1
JET,NEEDLE(Y-2)
0949400630
€ 24.50
15-2
0949400633
ref: 15-2
E18
JET,NEEDLE (Y-1)
€ 30.00
16
1350917C00
ref: 16
O RING
1350917C00
€ 4.50
17-1
0949121016
ref: 17-1
JET,MAIN(105)
0949121016
€ 9.50
17-2
0949121014
ref: 17-2
E22,P37
JET,MAIN(107.5)
0949121014
€ 8.50
18-1
0949121016
ref: 18-1
LH,ML,RH E24
JET,MAIN(105)
0949121016
€ 9.50
18-2
0949122016
ref: 18-2
MR E24
JET,MAIN(110)
0949122016
€ 7.00
19
1324724500
ref: 19
LH,RH
PLUG,DRAIN
1324724500
€ 12.00
20-1
1325020C00
ref: 20-1
FLOAT/NEEDLE VALVE ASSEMBLY
€ 115.50
20-2
1325020C10
ref: 20-2
P37
FLOAT/NEEDLE VALVE ASSY
1325020C10
€ 115.50
21
1337446710
ref: 21
O RING
1337446710
€ 4.50
22
1337444080
ref: 22
O-RING,NEEDLE VALVE
1337444080
€ 6.00
23
0211275163
ref: 23
LH,ML,RH:2,MR:1
SCREW
0211275163
€ 2.50
24
0211205127
ref: 24
SCREW
0211205127
€ 2.50
25
1327144B00
ref: 25
ML:2,MR:1
SPRING
1327144B00
€ 4.00
26
1326817C10
ref: 26
ML:2,MR:1
SPRING
1326817C10
€ 7.00
27
1350817C00
ref: 27
CAP
1350817C00
€ 4.50
28
1367105A40
ref: 28
E18,E24
CLIP
1367105A40
€ 4.00
29
1324713A00
ref: 29
ML,MR
SCREW,DRAIN
1324713A00
€ 5.50
30
1350217C00
ref: 30
COVER,DIAPHRAGM
1350217C00
€ 38.50
31
1341817C00
ref: 31
CAP,STARTER
1341817C00
€ 5.00
32
1341817C10
ref: 32
HOLDER,GUIDE
1341817C10
€ 14.00
33
1341709110
ref: 33
SPRING
1341709110
€ 6.00
34
1341120C00
ref: 34
PLUNGER ASSEMBLY
€ 18.00
35-1
1327947070
ref: 35-1
EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
35-2
1327947070
ref: 35-2
E22
SCREW,PILOT
1327947070
€ 11.50
35-3
1327947070
ref: 35-3
E24
SCREW,PILOT
1327947070
€ 11.50
36
1326847070
ref: 36
EXCEPT E18
SPRING
1326847070
€ 5.00
37
1329129900
ref: 37
EXCEPT E18
WASHER
1329129900
€ 2.00
38
1329529900
ref: 38
EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
39
0211205164
ref: 39
MR
SCREW
0211205164
€ 2.00
40
1335734C00
ref: 40
PLUG
1335734C00
€ 4.50
41
0832201053
ref: 41
MR
WASHER
0832201053
€ 2.50
42
1367120C20
ref: 42
MR
CLIP
1367120C20
€ 5.50
43
0949327002
ref: 43
E18
JET,AIR(1.35)
0949327002
€ 15.50
