FRONT FENDER

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

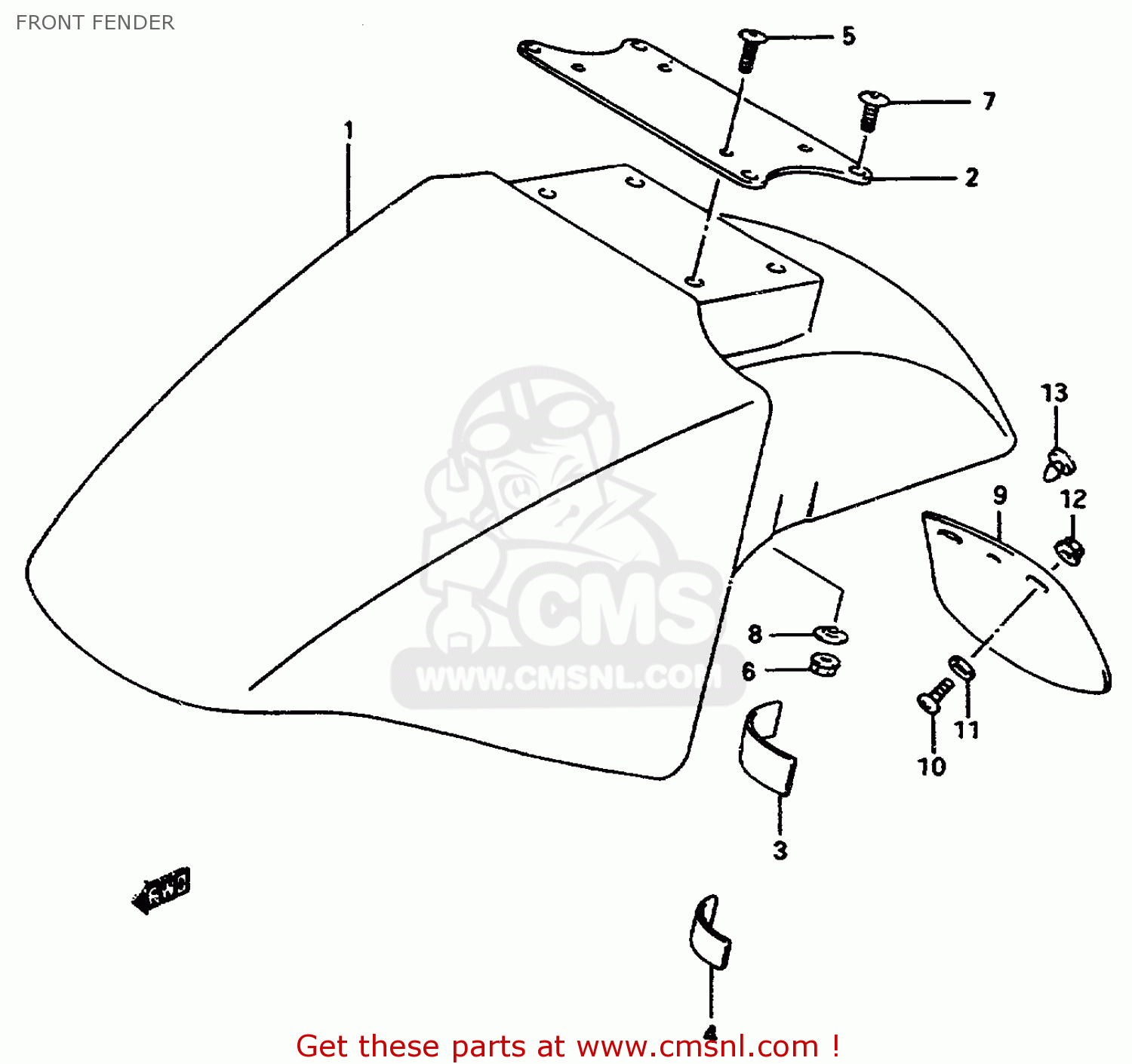

Front fender diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1-1

5311120C0033J
ref: 1-1

FENDER,FR

€ 159.50

1-2

5311120C0022U
ref: 1-2

FENDER,FR

€ 172.50

1-3

5311120C1033J
ref: 1-3
E24

FENDER, FRONT (BLACK)

€ 182.00

1-4

5311120C1022U
ref: 1-4
E24

FENDER, FRONT (MAROON)

€ 182.00

5311401D00
ref: 2

BRACE,FR FENDER

€ 19.50

5314519C00
ref: 3

CUSHION,FRONT FENDER

€ 3.50

5314620C00
ref: 4

CUSHION

€ 4.50

0913905022
ref: 5

SCREW

€ 2.50

0915905026
ref: 6

NUT

€ 2.50

0913906027
ref: 7

SCREW(6X12)

€ 3.00

0916905010
ref: 8

WASHER

€ 3.00

5331119C00
ref: 9
E24

MUD FLAP, FRONT FENDER

€ 16.50

0214205123
ref: 10
E24

SCREW 5X12

€ 1.50

0916005501
ref: 11
E24

WASHER(5.5X20X1.2)

€ 2.00

0831320053
ref: 12
E24

NUT

€ 1.50

0925006012
ref: 13
E24

PLUG(OD:10)

€ 5.00

FRONT FENDER

all assemblies
