HANDLE SWITCH

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

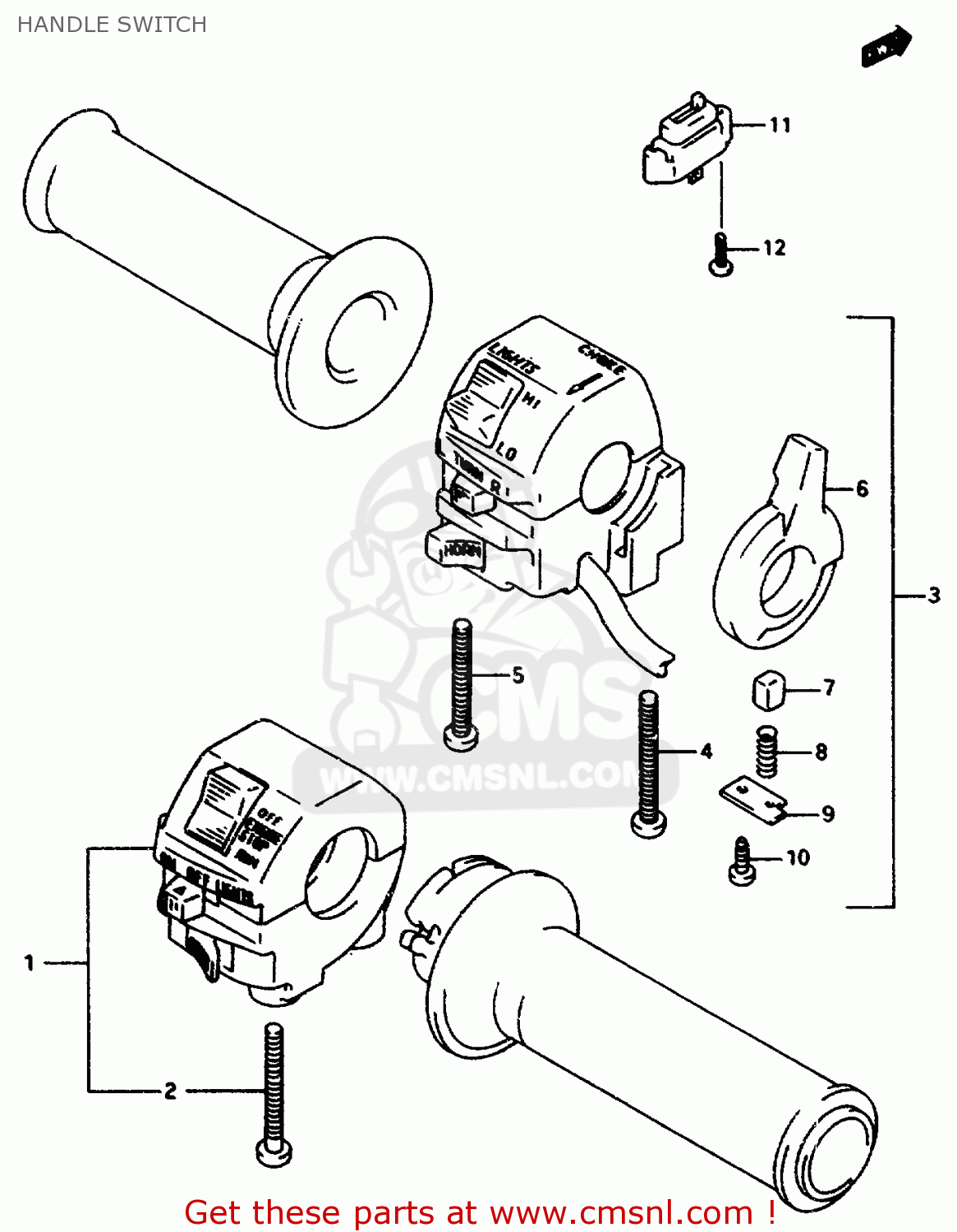

Handle switch diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1-1

3720017C04
ref: 1-1

SWITCH, HANDLE

€ 75.00

1-2

3720017C33
ref: 1-2
E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 0.00

0211205455
ref: 2

SCREW, 5X45

€ 4.00

3740032B01
ref: 3

SWITCH ASSY

€ 146.00

0211205455
ref: 4

SCREW, 5X45

€ 4.00

0211205403
ref: 5

SCREW

€ 2.00

3748130B01
ref: 6

LEVER,CHOKE

€ 13.00

3748230B00
ref: 7

PIECE,SLIDE

€ 4.00

3748330B00
ref: 8

SPRING

€ 7.50

3748630B00
ref: 9

PLATE

€ 3.00

0351104123
ref: 10

SCREW, TRUNK BOX

€ 1.50

3756038A00
ref: 11

SWITCH ASSY,CLUTCH

€ 20.00

3756426E00
ref: 12

SCREW

€ 3.00
