TURNSIGNAL LAMP

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

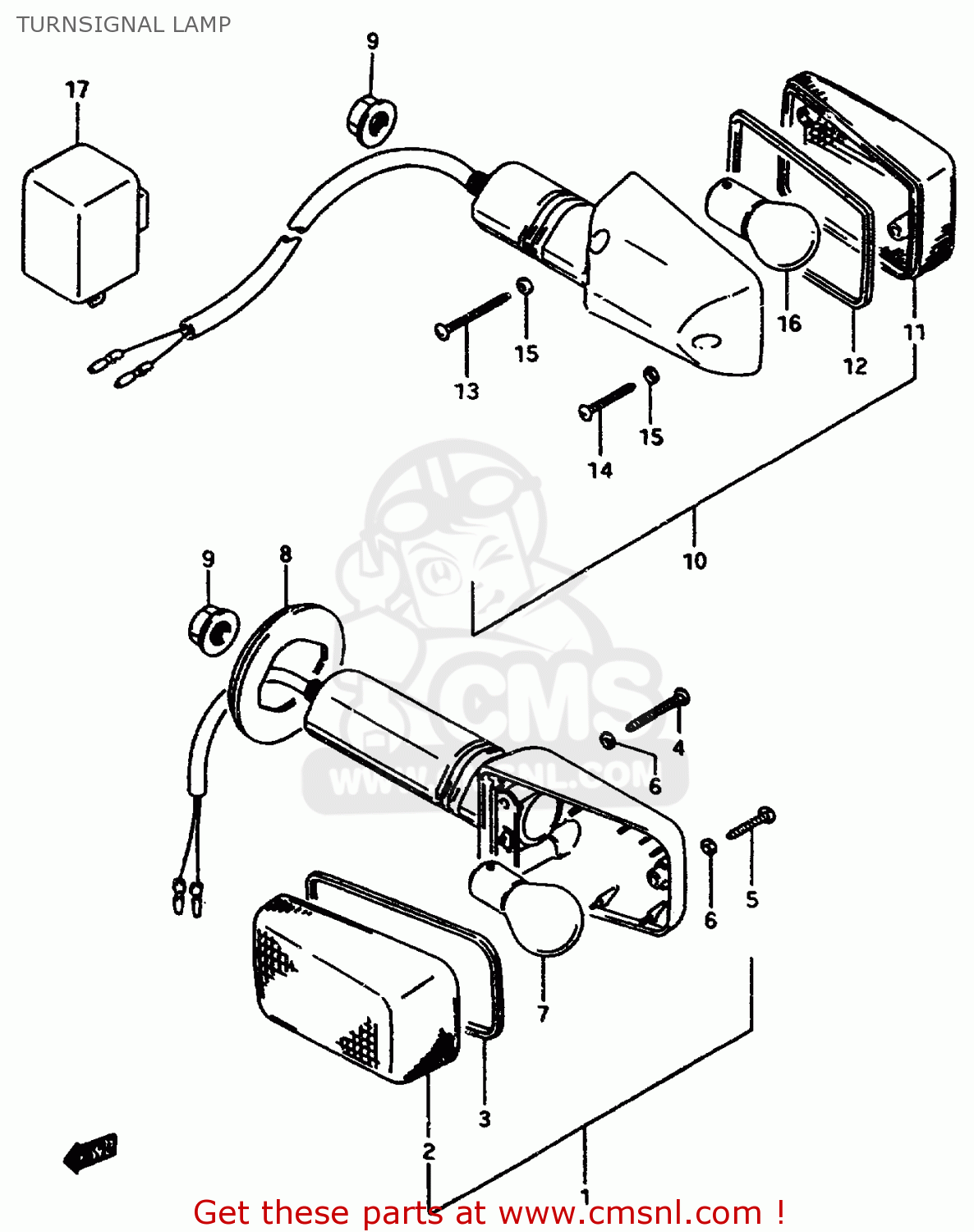

Turnsignal lamp diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

3560101D10
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 70.50

3561217C20
ref: 2

LENS

€ 6.50

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

3572540511
ref: 5

SCREW

€ 1.50

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

0947112045
ref: 7

BULB(12V21W)

€ 5.00

3567427A01
ref: 8

GROMMET

€ 13.50

0831610103
ref: 9

NUT

€ 2.00

10-1

3560314D10
ref: 10-1

LAMP ASSY,RR TURNSIGNAL

€ 88.00

10-2

3560314D20
ref: 10-2
E18,E22

LAMP ASSY,RR TURNSIGNAL

€ 74.00

3565217C20
ref: 11

LENS

€ 6.50

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

3572540511
ref: 14

SCREW

€ 1.50

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

0947112045
ref: 16

BULB(12V21W)

€ 5.00

3861045D01
ref: 17

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50
