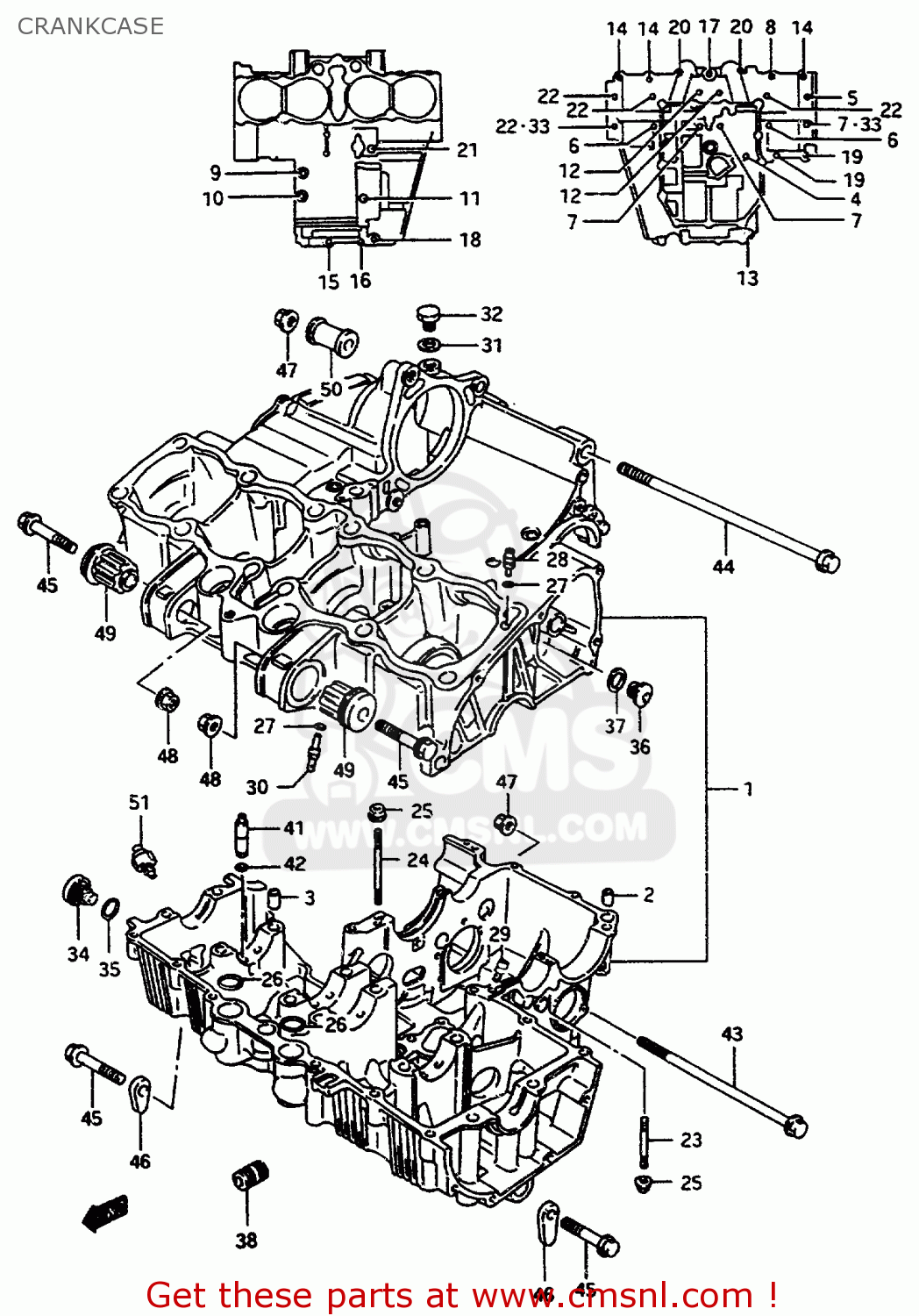

CRANKCASE

ref

part #

description

quantity

1

1130120821
ref: 1

CRANKCASE SET

€ 2,017.00

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611017
ref: 3

PIN(8.4X11X20)

€ 6.50

4

0910306163
ref: 4

BOLT(6X105)

€ 4.00

5

0910308097
ref: 5

BOLT(8X105)

€ 3.00

6

0910308182
ref: 6

BOLT(8X125)

€ 4.50

7

0910308098
ref: 7

BOLT(8X115)

€ 3.00

8

0155006353
ref: 8

BOLT

€ 2.50

9

0713006403
ref: 9

BOLT

€ 3.50

10

0713006503
ref: 10

BOLT,CL.COVER

€ 3.00

11

0713006653
ref: 11

BOLT

€ 4.00

12

0713008653
ref: 12

BOLT

€ 3.50

13

0155008603
ref: 13

BOLT

€ 3.50

14

0155006353
ref: 14

BOLT

€ 2.50

15

0155006403
ref: 15

BOLT

€ 2.00

16

0155006407
ref: 16

BOLT

€ 2.50

17

0155006503
ref: 17

BOLT

€ 2.00

18

0155006603
ref: 18

BOLT

€ 2.50

19

0155006553
ref: 19

BOLT, HYDRAULIC UNIT NO.2

€ 2.00

20

0155006703
ref: 20

BOLT

€ 2.50

21

0155006803
ref: 21

BOLT

€ 2.50

22

0910308105
ref: 22

BOLT(8X95)

€ 3.00

23

0142106408
ref: 23

STUD BOLT

€ 2.50

24

0142106608
ref: 24

STUD BOLT

€ 2.50

25

0831610063
ref: 25

NUT

€ 2.50

26

0928021008
ref: 26

O RING(D:2.5,ID:21)

€ 2.00

27

0928004004
ref: 27

O RING(D:1.2,ID:4)

€ 2.00

28

0949314002
ref: 28

JET,AIR

€ 8.00

29

0949324010
ref: 29

JET

€ 12.00

30

0949326007
ref: 30

JET(13)

€ 13.50

31

0916812002
ref: 31

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

32

0924712103
ref: 32

PLUG(12X9)

€ 3.50

33

0916808021
ref: 33

GASKET(8.5X17X2.3) (NAS)

€ 3.00

34

0924816003
ref: 34

PLUG

€ 16.50

35

0928017002
ref: 35

O RING(D:2.4,ID:16.8)

€ 3.50

36

0924814005
ref: 36

PLUG,14X12

€ 5.00

37

0916814002
ref: 37

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

38

1659106B00
ref: 38

UNION,OIL STAND

€ 6.00

39

1222848B000E0
ref: 39
SEE ILLUSTRATION ON

BEARING,CRANK THRUST(GREEN)

€ 8.00

40-1

1222848B000C0
ref: 40-1
SEE ILLUSTRATION ON

BEARING,CRANK THRUST(RED)

€ 7.50

40-2

1222848B000E0
ref: 40-2

BEARING,CRANK THRUST(GREEN)

€ 8.00

40-3

1222848B000H0
ref: 40-3

BEARING,CRANK THRUST(BLACK)

€ 7.50

41

1643027A00
ref: 41

VALVE ASSEMBLY,PISTON OIL

€ 21.00

42

0928005007
ref: 42

O RING(D:1.2,ID:4.7)

€ 2.00

43

0910310122
ref: 43

BOLT(10X130)

€ 9.50

44

0910310151
ref: 44

BOLT(10X175)

€ 14.50

45

0158010553
ref: 45

BOLT

€ 3.00

46

0915910020
ref: 46

NUT

€ 7.50

47

0915910058
ref: 47

NUT

€ 4.00

48

0831610103
ref: 48

NUT

€ 2.00

49

1168106B00
ref: 49

BUSH,ENGINE MOUNTING

€ 26.00

50

1161020C00
ref: 50

SPACER,ENGINE MOUNT(L27)

€ 10.00

51

3782033D00
ref: 51

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00
