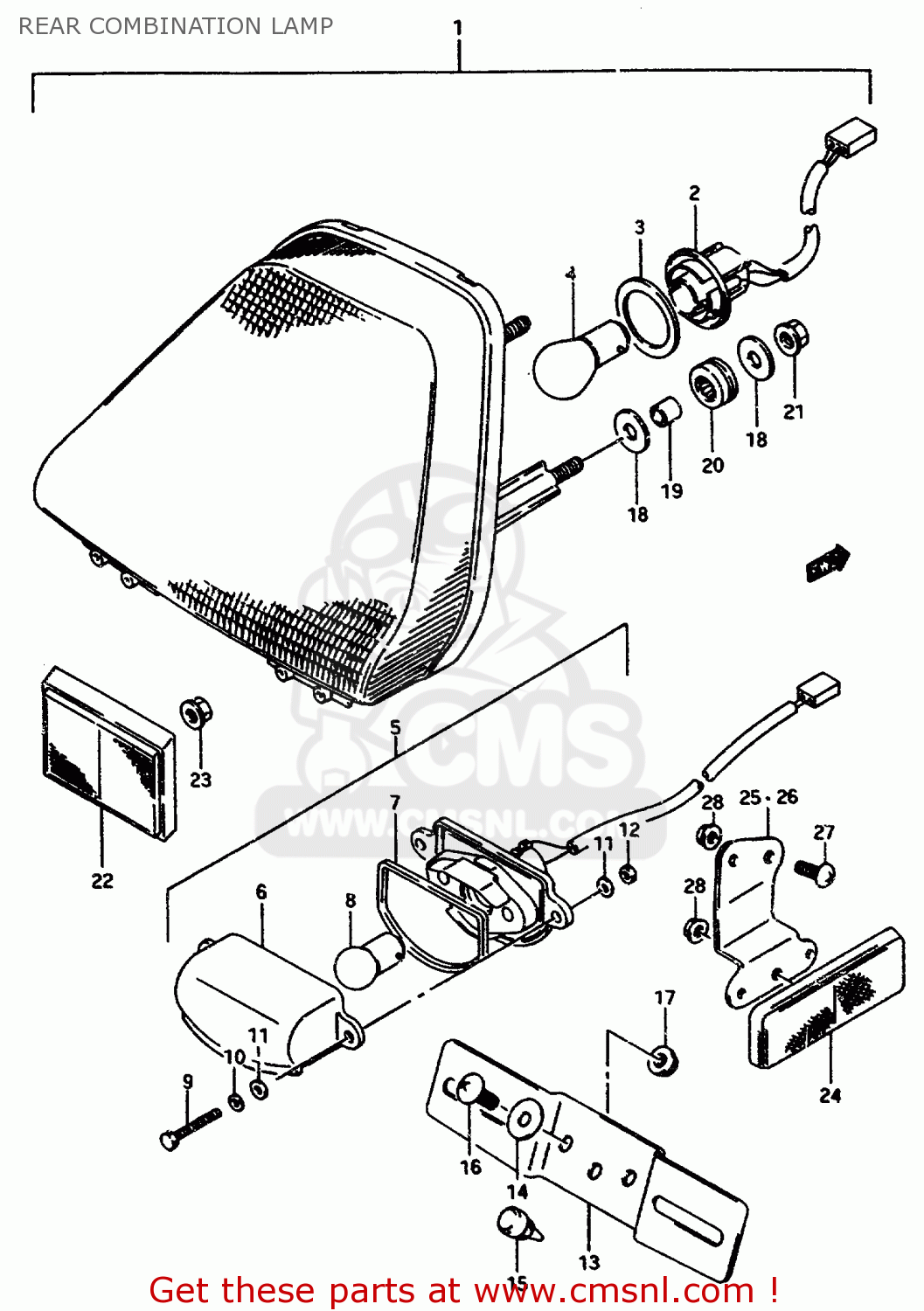

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571048C20
ref: 1

LAMP ASSY,RR COMBINATION

€ 169.00

2

3571848B20
ref: 2

SOCKET

€ 25.00

3

3576448B20
ref: 3

CUSHION,RUBBER

€ 2.50

4

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

5

3591048B20
ref: 5

LAMP ASSY,LICENSE

€ 61.00

6

3591200A21
ref: 6

LENS,LICENSE LAMP

€ 24.00

7

3591304A00
ref: 7

GASKET,LICESE LAMP (NAS)

€ 4.00

8

0947112140
ref: 8

BULB(12V5W,BF150-40160A)

€ 4.00

9

0110404256
ref: 9

BOLT

€ 1.50

10

0832101043
ref: 10

WASHER,LOCK

€ 2.00

11

0832201047
ref: 11

WASHER

€ 2.00

12

0831000047
ref: 12

NUT

€ 2.00

13

3592744110
ref: 13

PLATE,RR LICENSE

€ 22.50

14

0916006053
ref: 14

WASHER

€ 2.00

15

0932106023
ref: 15

CUSHION

€ 2.00

16

0211206163
ref: 16

SCREW 6X16

€ 2.00

17

0831610063
ref: 17

NUT

€ 2.50

18

0916006077
ref: 18

WASHER(6.5X20X1.2)

€ 2.00

19

0918006248
ref: 19

SPACER(6.1X8X9.5)

€ 2.50

20

0932009009
ref: 20

CUSHION

€ 5.00

21

0831610063
ref: 21

NUT

€ 2.50

22

3597048B00
ref: 22

REAR ASSEMBLY,REAR

€ 15.50

23

0831610053
ref: 23

NUT

€ 2.50

24

3595043431
ref: 24

REFLEX REFLECTOR,FR SIDE

€ 12.00

25

3597520C01
ref: 25

BRACKET,RR SIDE RR,R

€ 3.00

26

3597620C01
ref: 26

BRACKET,RR SIDE RR,L

€ 3.00

27

0214205123
ref: 27

SCREW 5X12

€ 1.50

28

0831000053
ref: 28

NUT

€ 2.50

all assemblies
