FUEL COCK

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

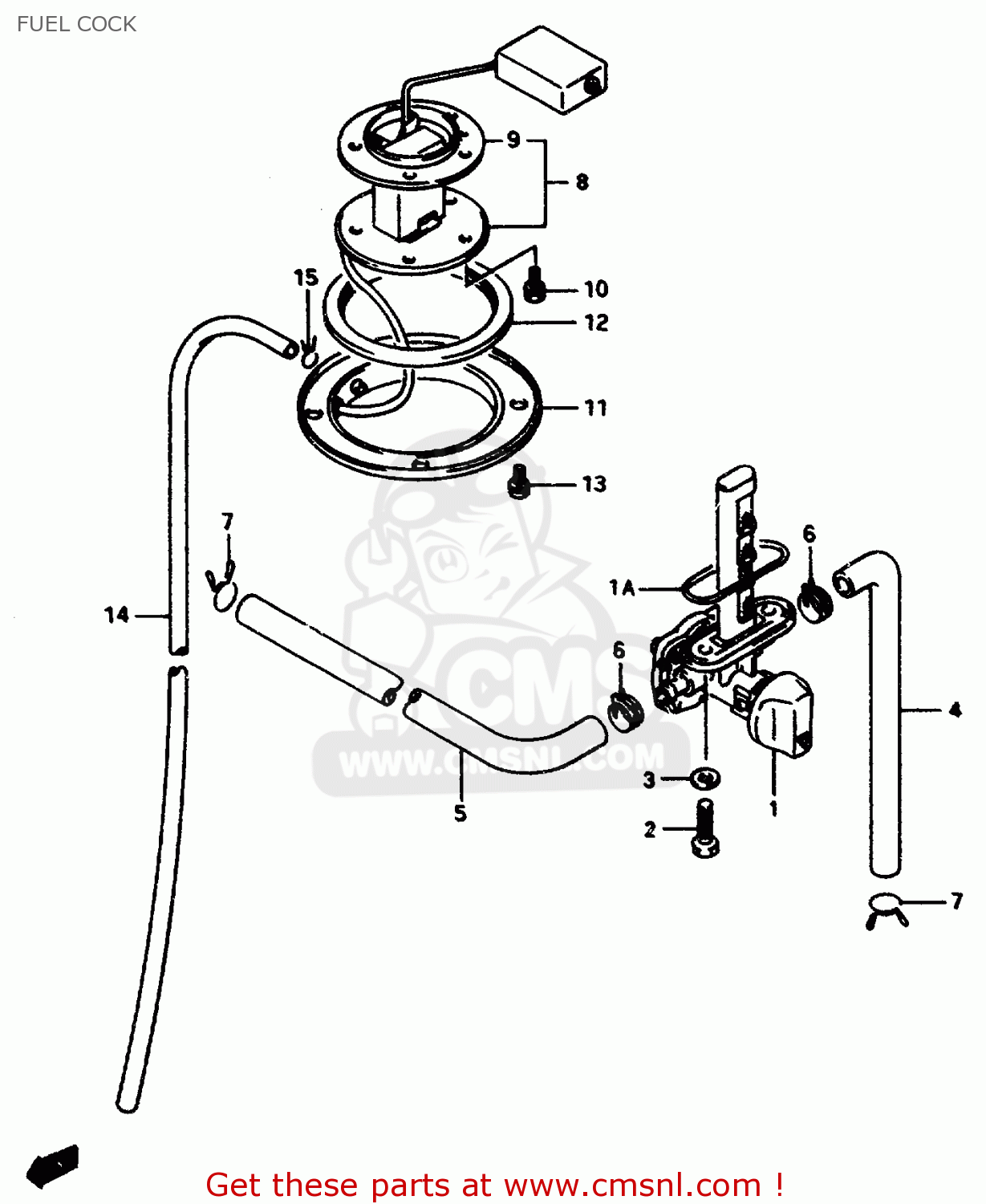

Fuel cock diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

4430020C00
ref: 1

COCK ASSY,FUEL

€ 128.00

4434849170
ref: 1A

O RING

€ 3.50

0912806057
ref: 2

BOLT(6X20)

€ 2.00

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

0934307502
ref: 4

HOSE (7X12X150)

€ 19.00

0934307503
ref: 5

HOSE (7X12X330)

€ 19.00

0940111407
ref: 6

CLIP

€ 2.50

0940112403
ref: 7

CLIP

€ 2.00

3481020C00
ref: 8

GAUGE ASSY,FUEL LEVEL SENDER

€ 100.50

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

0911705003
ref: 10

BOLT 5X10

€ 2.00

3488540A00
ref: 11

PLATE,FUEL DRAIN

€ 21.00

3488840A00
ref: 12

GASKET,FUEL DRAIN PLATE (NAS)

€ 9.00

0913705004
ref: 13

SCREW(5X8)

€ 2.00

093525082300B
ref: 14

HOSE(5X8.2X2000)

€ 13.00

0940108401
ref: 15

CLIP

€ 1.50

FUEL COCK

all assemblies
