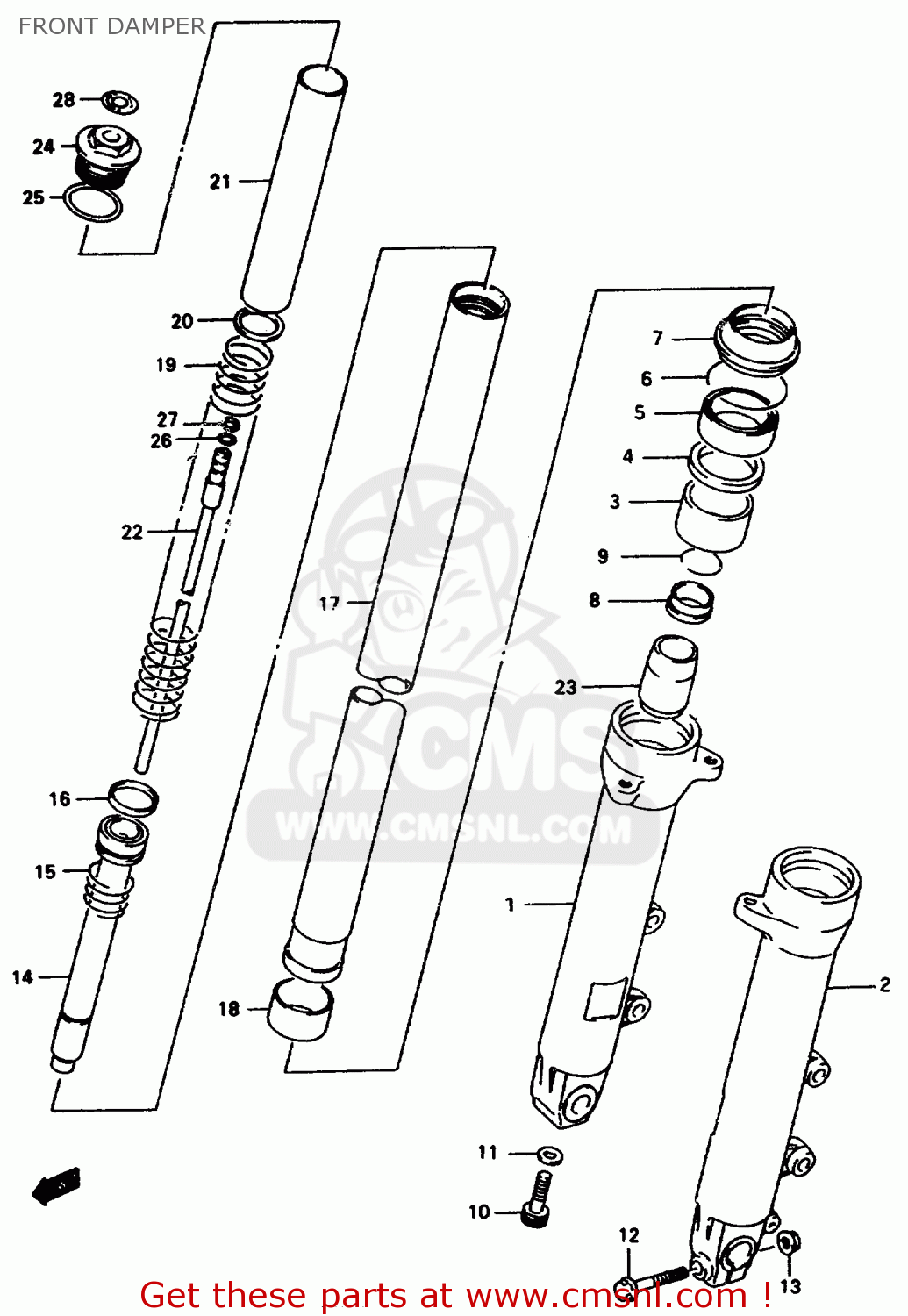

FRONT DAMPER

ref

part #

description

quantity

0

5110320C30
ref: 0
E4,E18,E22,E25,E34,P

DAMPER ASSY, FRONT FORK RH

€ 0.00

0

5110420C30
ref: 0
E4,E18,E22,E25,E34,P

DAMPER ASSY, FRONT FORK LH

€ 0.00

0

5110320C2013L
ref: 0
E24

DAMPER ASSEMBLY,FRONT FORK

€ 0.00

0

5110420C2013L
ref: 0
E24

DAMPER ASSEMBLY,FRONT FORK

€ 0.00

1

5113020C2013L
ref: 1

TUBE,OUTER,RIGHT

€ 321.00

2

5114020C2013L
ref: 2

TUBE,OUTER,L

€ 377.00

3

5115248B31
ref: 3

BUSH,GUIDE

€ 20.00

4

5116838B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115308D00
ref: 5

SEAL,OIL

€ 15.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5157147D50
ref: 7

SEAL,DUST

€ 18.00

8

5119720C10
ref: 8
E4,E18,E22,E25,E34,P

VALVE, OIL LOCK PIECE

€ 12.50

9

5227720C10
ref: 9
E4,E18,E22,E25,E34,P

RING,STOPPER

€ 4.00

10

5114748130
ref: 10

BOLT(8X27)

€ 3.50

11

5114836011
ref: 11

GASKET (NAS)

€ 4.00

12

0155008507
ref: 12

BOLT

€ 3.50

13

0831610087
ref: 13

NUT

€ 2.50

14

5119420C20
ref: 14

SEAT,UNDER

€ 0.00

15

5117748B31
ref: 15

SPRING,REBOUND

€ 12.00

16

5119619C00
ref: 16

RING,PISTON

€ 4.50

17

5111020C20
ref: 17

TUBE,INNER

€ 234.50

18

5112148B31
ref: 18

BUSH,SLIDE

€ 15.50

19

5117120C20
ref: 19

SPRING,FRONT

€ 41.00

20

5119219C00
ref: 20

JOINT,SPRING

€ 3.50

21

5117634C00
ref: 21

SPACER,SPRING

€ 6.00

22

5211120C20
ref: 22

ROD,INNER

€ 49.00

23-1

5119520C30
ref: 23-1
E4,E18,E22,E25,E34,P

PIECE, OIL LOCK

€ 0.00

23-2

5119548B31
ref: 23-2
E24

PIECE,OIL LOCK

€ 19.00

24

5135120C20
ref: 24

BOLT,FORK

€ 48.00

25

5111712C00
ref: 25

O RING

€ 3.00

26

0928006005
ref: 26

O RING(D:1.9,ID:5.7)

€ 2.50

27

5116920C20
ref: 27

RING,STOPPER(ID:6.1,D:0.6)

€ 4.00

28

5114920C20
ref: 28

LABEL,S-H

€ 5.00
