MUFFLER

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

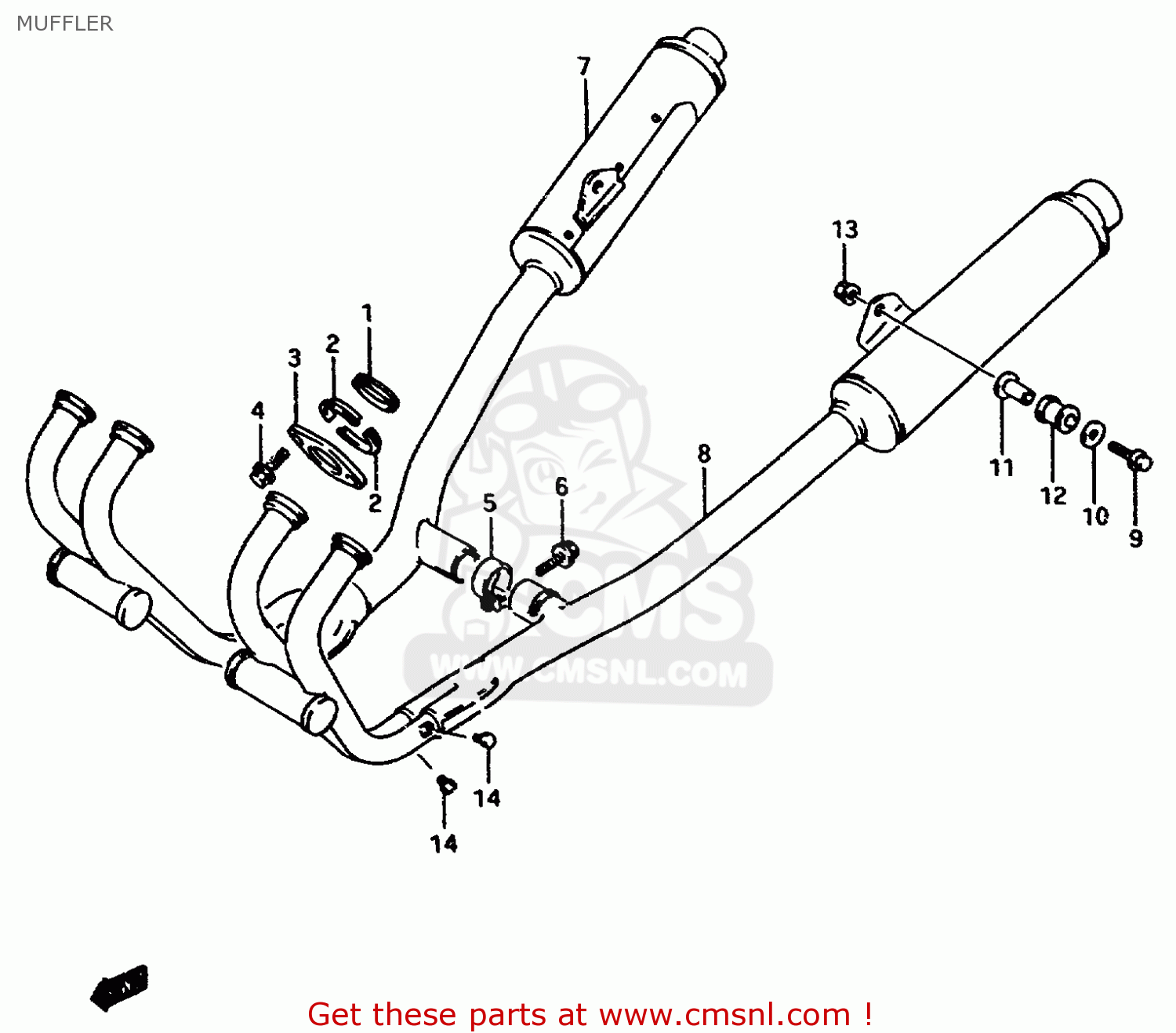

Muffler diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1418118C00
ref: 1

GASKET,EXHAUST (NAS)

€ 6.50

1415527A00
ref: 2

PLATE,EXHAUST PIPE

€ 3.50

1418226D00
ref: 3

CLAMP,EXHAUST PIPE

€ 21.00

0712008253
ref: 4

BOLT

€ 2.50

1477219C00
ref: 5

CLAMP,MUFFLER CONNECTOR

€ 6.50

0155006253
ref: 6

BOLT

€ 2.50

7-1

1430520C50
ref: 7-1

MUFFLER ASSY, RH

€ 501.50

7-2

1430520C31
ref: 7-2
E18

MUFFLER ASSY, RH

€ 643.50

7-3

1430520C41
ref: 7-3
E24,P37

MUFFLER,R

€ 497.00

8-1

1430620C50
ref: 8-1

MUFFLER,L

€ 509.00

8-2

1430620C31
ref: 8-2
E18

MUFFLER,L

€ 643.50

8-3

1430620C41
ref: 8-3
E24,P37

MUFFLER ASSY, LH

€ 490.50

0910308256
ref: 9

BOLT(8X40)

€ 6.00

0916008106
ref: 10

WASHER (8.1X33X1.6)

€ 3.00

0918008156
ref: 11

SPACER(8.6X12X27.1)

€ 6.50

0932012049
ref: 12

CUSHION

€ 9.00

0831620083
ref: 13

NUT

€ 1.50

0155006103
ref: 14
E18

BOLT

€ 2.50
