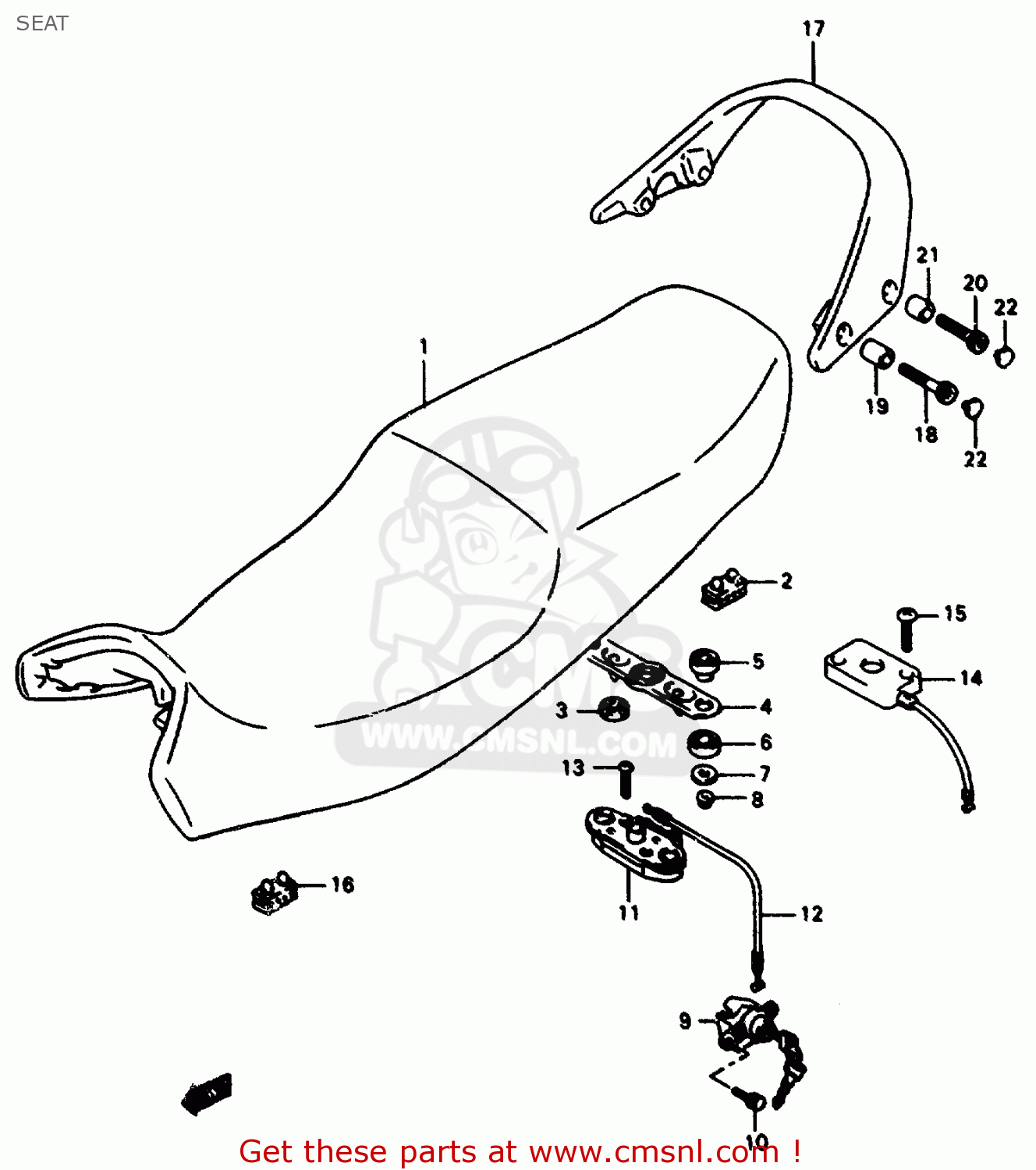

SEAT

ref

part #

description

quantity

1

4510020C2158R
ref: 1

SEAT ASSY

€ 391.50

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

4521313601
ref: 3

CUSHION,SEAT LOCK(10X22X6)

€ 1.50

4

4521048B20
ref: 4

STRIKER,SEAT LOCK

€ 14.50

5

0932010038
ref: 5

CUSHION

€ 4.00

6

0932014017
ref: 6

CUSHION

€ 3.00

7

0821206201
ref: 7

WASHER

€ 1.50

8

0831620063
ref: 8

NUT

€ 2.00

9

4570019840
ref: 9

LOCK SET,SEAT

€ 59.50

10

0157006163
ref: 10

BOLT

€ 2.50

11

4522020A01
ref: 11

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

12

4528020C00
ref: 12

CABLE,SEAT LOCK

€ 13.00

13

0212206303
ref: 13

SCREW

€ 2.00

14

4522006C00
ref: 14

BRACKET,SEAT SUPPORT FR

€ 29.00

15

0212206203
ref: 15

SCREW

€ 2.00

16

4514931300
ref: 16

CUSHION,SEAT(40X20X15)

€ 2.00

17

4621120C00019
ref: 17

HANDLE,PILLION RIDER

€ 122.00

18

0713008403
ref: 18

BOLT

€ 3.00

19

0918008111
ref: 19

SPACER(8.1X16X17)

€ 2.00

20

0713008303
ref: 20

BOLT

€ 3.00

21

0918010144
ref: 21

SPACER(10.2X16X12)

€ 3.00

22

0925006004
ref: 22

CAP(OD:14.5)

€ 1.50

all assemblies
