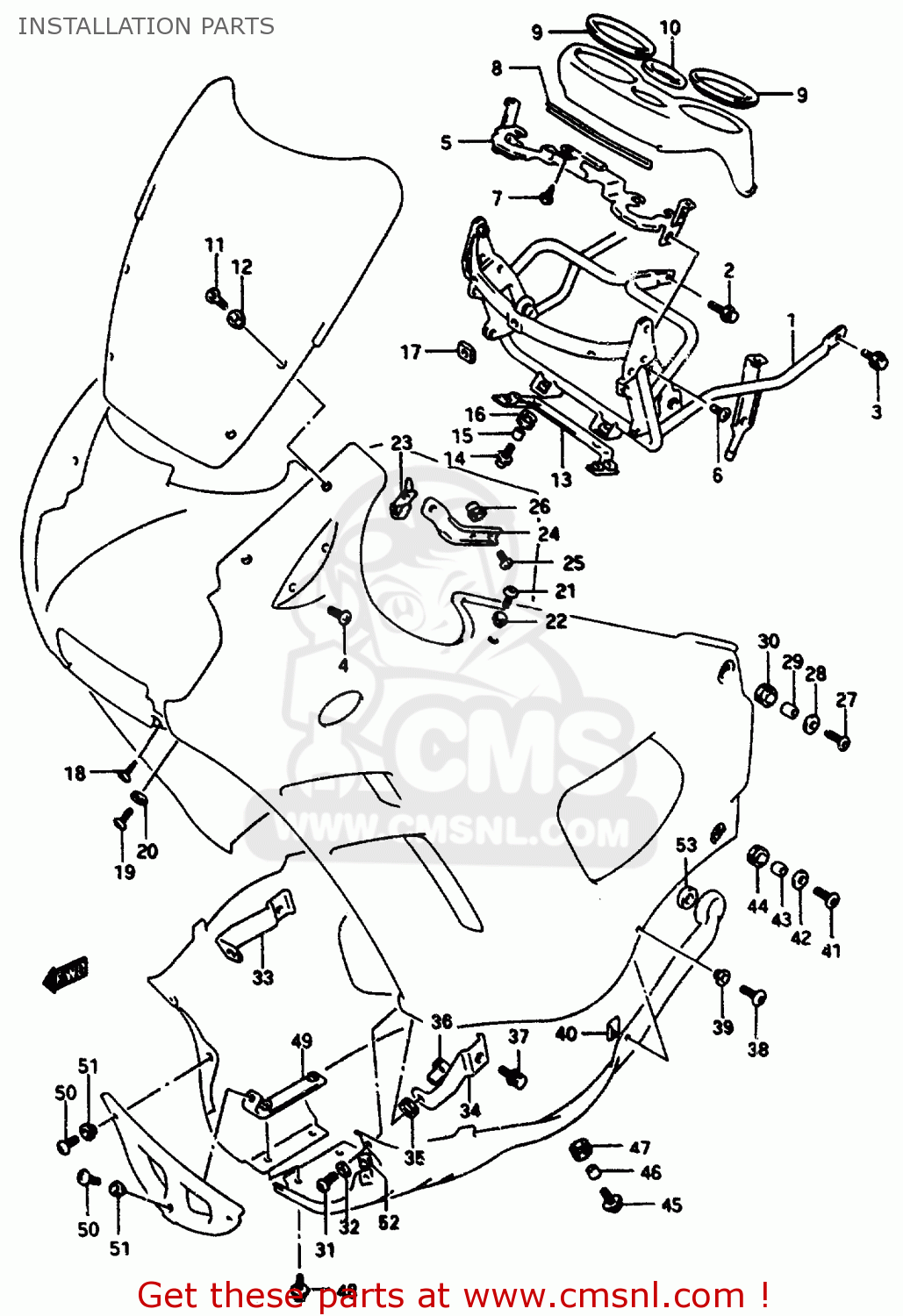

INSTALLATION PARTS

ref

part #

description

quantity

1-1

9451020C20
ref: 1-1

BRACE,COWLING

€ 128.50

1-2

9451020C30
ref: 1-2
E18

BRACE,COWLING

€ 145.50

2

0910308266
ref: 2

BOLT(8X20)

€ 2.50

3

0155006123
ref: 3

BOLT

€ 2.50

4

0214206123
ref: 4

SCREW 6X12

€ 2.00

5

9452020C00
ref: 5

PLATE,METER FITING

€ 30.50

6

0214206123
ref: 6

SCREW 6X12

€ 2.00

7

0354105083
ref: 7

SCREW 5X8

€ 2.00

8

9452719C00
ref: 8

MOLDING,METER COVER

€ 3.00

9

9442620C00
ref: 9

CUSHION,SPEEDOMETER

€ 5.50

10

9442720C00
ref: 10

CUSHION,FUEL METER

€ 4.00

11

0913905022
ref: 11

SCREW

€ 2.50

12

0916105002
ref: 12

WASHER

€ 2.00

13

9446019C00
ref: 13

PLATE,COWL CTR PANEL

€ 12.00

14

0913606081
ref: 14

SCREW(6X20)

€ 3.00

15

0918006286
ref: 15

SPACER(6.5X10X9.4)

€ 2.50

16

0932010015
ref: 16

CUSHION

€ 2.50

17

9463819C00
ref: 17

CUSHION,SCREEN

€ 2.50

18

0214205123
ref: 18

SCREW 5X12

€ 1.50

19

0913906029
ref: 19

SCREW(6X25)

€ 5.00

20

0916006006
ref: 20

WASHER

€ 2.00

21

0913906030
ref: 21

SCREW(6X16)

€ 3.50

22

0916106021
ref: 22

WASHER(6.3X16X1.5)

€ 2.50

23

9456019C00
ref: 23

BRACKET,COWLING UPR,R

€ 40.50

24

9457019C00
ref: 24

BRACKET,COWLING UPR,L

€ 40.50

25

0214206253
ref: 25

SCREW

€ 1.50

26

9457319C00
ref: 26

NUT,COWLING SIDE BRKT

€ 8.00

27

0913906029
ref: 27

SCREW(6X25)

€ 5.00

28

0916006006
ref: 28

WASHER

€ 2.00

29

0918006263
ref: 29

SPACER(6.5X9X9)

€ 2.00

30

0932009016
ref: 30

CUSHION

€ 2.50

31

0913906042
ref: 31

SCREW(6X30)

€ 7.50

32

0916006006
ref: 32

WASHER

€ 2.00

33

9453119C00
ref: 33

BRACKET,COWLING LWR,R

€ 8.00

34

9453219C00
ref: 34

BRACKET,COWLING LWR,L

€ 6.00

35

0932010015
ref: 35

CUSHION

€ 2.50

36

9459019C00
ref: 36

NUT,COWLING,FR

€ 8.00

37

0158006163
ref: 37

BOLT

€ 2.50

38

0913905025
ref: 38

SCREW(5X14)

€ 2.00

39

0916105017
ref: 39

WASHER(5.2X14X1.5)

€ 3.00

40

9448432B00
ref: 40

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

41

0913906029
ref: 41

SCREW(6X25)

€ 5.00

42

0916006006
ref: 42

WASHER

€ 2.00

43

0918006116
ref: 43

SPACER(6.1X8X14.5)

€ 2.00

44

0932009016
ref: 44

CUSHION

€ 2.50

45

0913606081
ref: 45

SCREW(6X20)

€ 3.00

46

0918006263
ref: 46

SPACER(6.5X9X9)

€ 2.00

47

0932009016
ref: 47

CUSHION

€ 2.50

48

0214205163
ref: 48

SCREW

€ 2.50

49

9458019C00
ref: 49

BRACKET,FR UNDER COWL

€ 6.50

50

0214205163
ref: 50

SCREW

€ 2.50

51

0916105017
ref: 51

WASHER(5.2X14X1.5)

€ 3.00

52

9448432B00
ref: 52

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

53

9463920C00
ref: 53

CUSHION,UNDER COWLING RR

€ 2.50

all assemblies
