HEADLAMP

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

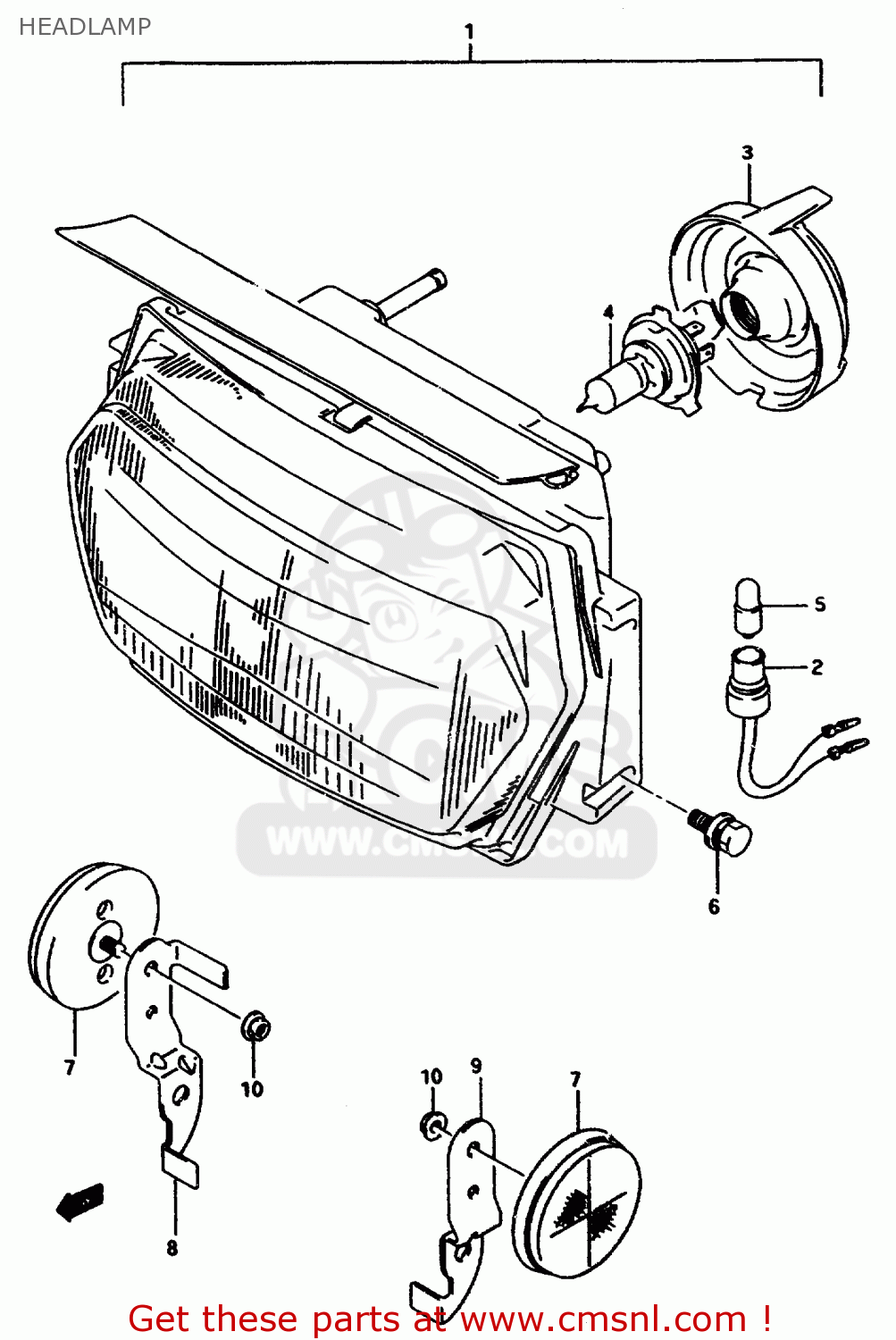

Headlamp diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

1-1

HEADLAMP ASSY

€ 217.00

1-2

3510020C10999
ref: 1-2
E24

HEADLAMP ASSY

€ 189.50

3611832B10
ref: 2

SOCKET

€ 9.50

3517348B00
ref: 3

COVER,SOCKET

€ 10.50

0947112060
ref: 4

BULB(12V60/55W,H4)

€ 8.00

0947112063
ref: 5

BULB(12V4W)

€ 6.00

0158006203
ref: 6

BOLT, REAR

€ 2.50

3595014A00
ref: 7
E18

REFLECTOR,REFLEX FR

€ 15.00

3595619C00
ref: 8
E18

BRACKET,FR SIDE RR,R

€ 4.50

3595719C00
ref: 9
E18

BRACKET,FR SIDE RR,L

€ 5.50

0831000053
ref: 10
E18

NUT

€ 2.50
