FOOTREST

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

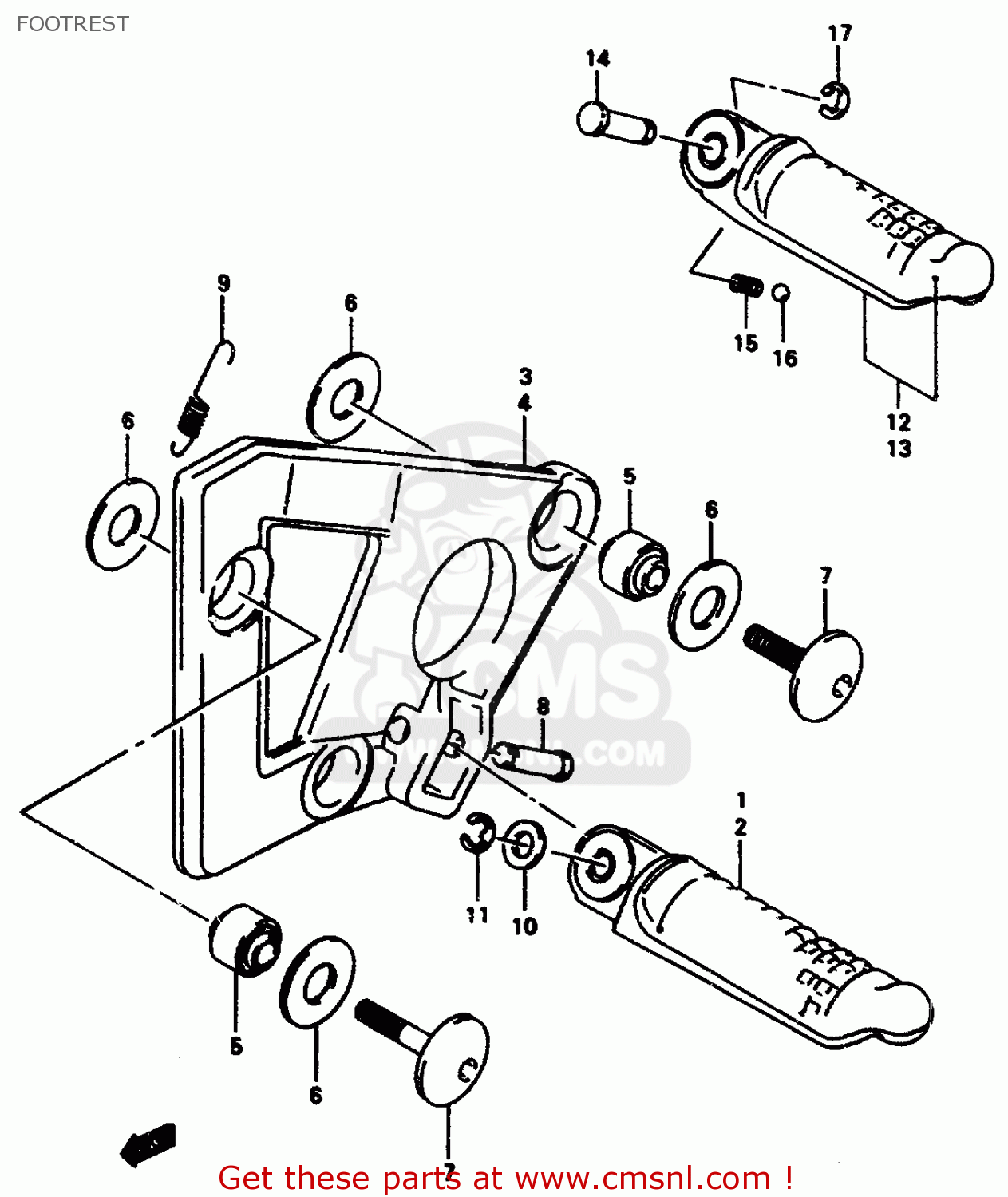

Footrest diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

4351019C01
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 64.50

4352019C01
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 72.50

4351720C01
ref: 3

HOLDER,FRONT FOOTREST

€ 37.00

4352720C01
ref: 4

HOLDER,FR FOOTREST

€ 92.00

0931908036
ref: 5

BUSH(12X20X16)

€ 23.50

0916112009
ref: 6

WASHER(12.6X24X1.9)

€ 4.50

0910608080
ref: 7

BOLT L:30

€ 6.00

0920808010
ref: 8

PIN(8X33.2)

€ 3.00

0944310037
ref: 9

SPRING

€ 4.50

0832201083
ref: 10

WASHER

€ 1.50

0833211063
ref: 11

E.RING

€ 2.00

4361020C00
ref: 12

BAR,PILLION FOOTREST,RIGHT

€ 52.50

4371020C00
ref: 13

BAR,PILLION FOOTREST,LEFT

€ 52.50

0920808011
ref: 14

PIN

€ 3.00

0944005005
ref: 15

SPRING

€ 1.50

0611107004
ref: 16

BALL

€ 1.50

0833211063
ref: 17

E.RING

€ 2.00

FOOTREST

all assemblies
