FRAME

GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

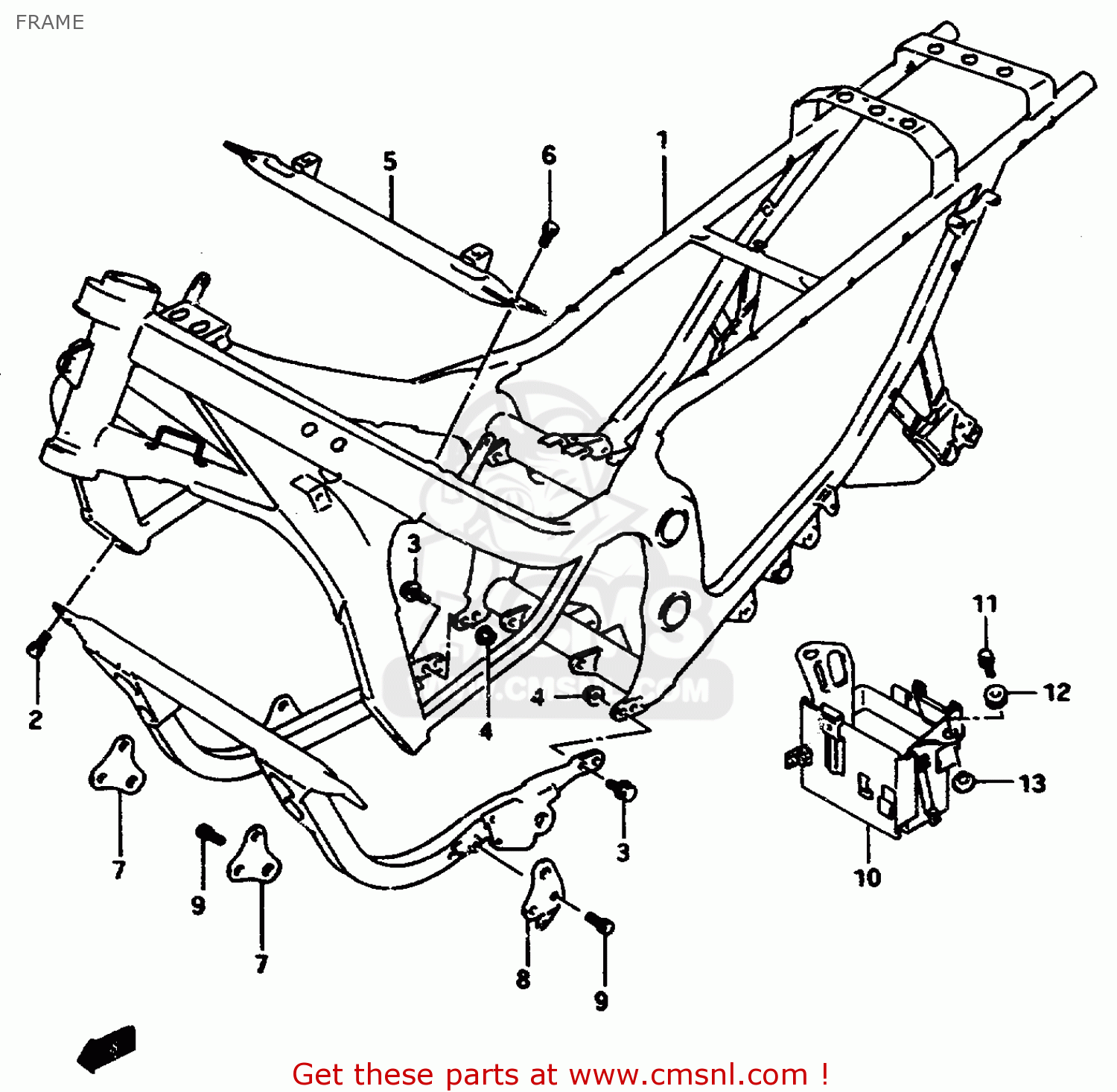

Frame diagram GSX750F 1997 (V) (E04 E18 E22 E24 E25 E34) P37

prices are in EUR

ref

part #

description

quantity

FRAME SET

€ 1,564.50

0157008253
ref: 2

BOLT

€ 2.50

0155008303
ref: 3

BOLT

€ 3.00

0831931085
ref: 4

NUT

€ 2.50

4175034C00
ref: 5

TUBE,FRAME BRIDGE NO.2

€ 44.00

0910308266
ref: 6

BOLT(8X20)

€ 2.50

PLATE,ENG MTG NO.1

€ 5.00

PLATE,ENG MTG NO.2,L

€ 10.00

0157008163
ref: 9

BOLT, UPPER

€ 2.00

4154020C01
ref: 10

HOLDER,BATTERY

€ 34.50

0157006303
ref: 11

BOLT

€ 2.00

0932008021
ref: 12

CUSHION

€ 4.00

0916906065
ref: 13

WASHER

€ 3.50

all assemblies
