AIR CLEANER

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

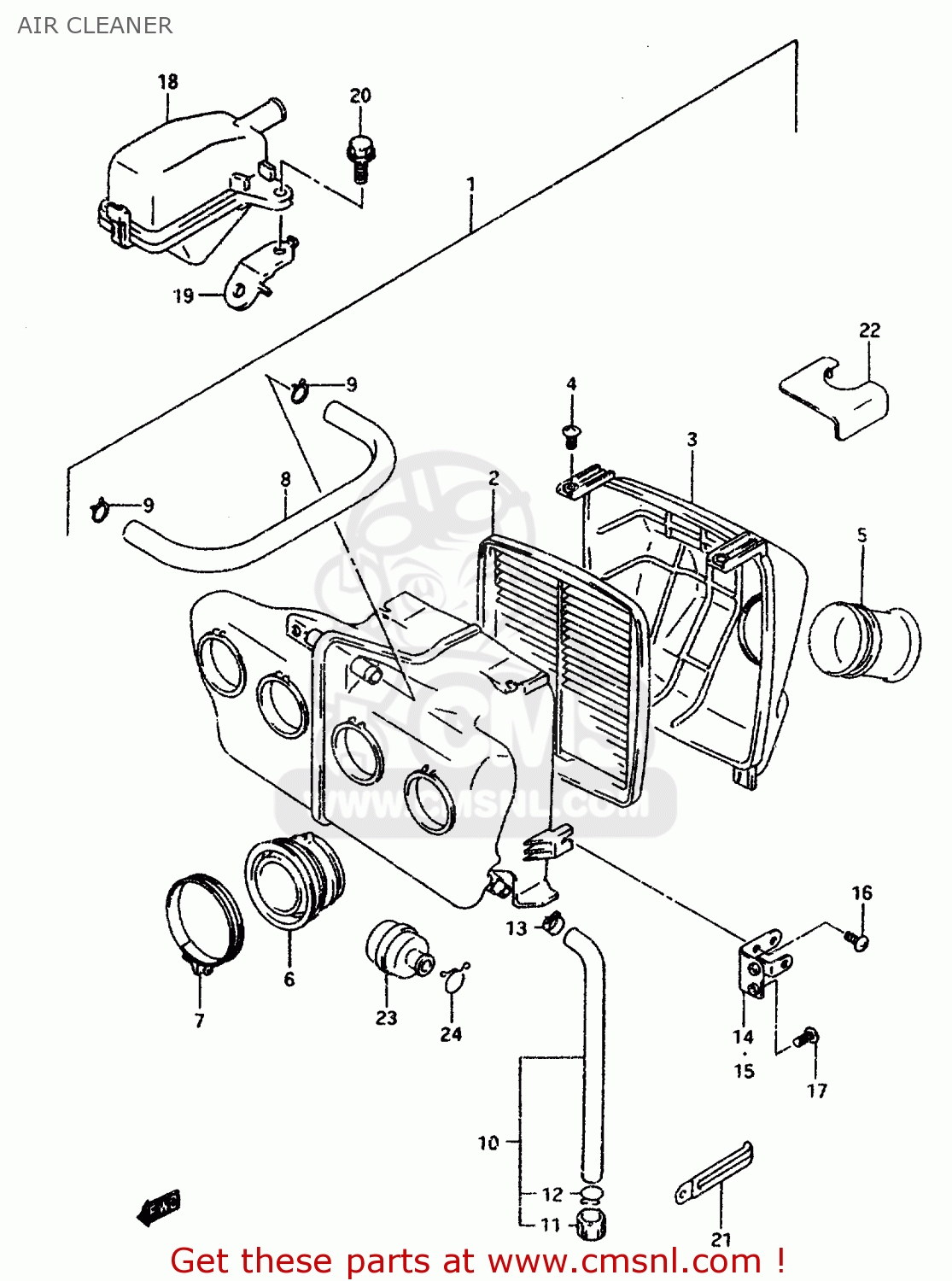

Air cleaner diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

AIR CLEANER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
AIR CLEANER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
AIR CLEANER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1370046E01
ref: 1-1
CLEANER ASSY,AIR
€ 341.50
1-2
1370046E11
ref: 1-2
E18,E39
CLEANER ASSY,AIR
€ 140.50
2
1378017E00
ref: 2
FILTER,AIR
1378017E00
€ 34.50
3-1
1374046E00
ref: 3-1
MODEL P/R
CAP,AIR CLNR.
€ 39.50
3-2
1374046E01
ref: 3-2
MODEL S//T/V
CAP,AIR CLEANER
1374046E01
€ 39.50
3-3
1374017E01
ref: 3-3
MODEL P/R E18,E39
CAP,AIR CLEANER
€ 38.50
3-4
1374017E02
ref: 3-4
MODEL S/T/V E18
CAP,AIR CLEANER
1374017E02
€ 38.50
4
0214205123
ref: 4
SCREW 5X12
0214205123
€ 1.50
5-1
1389146E00
ref: 5-1
TUBE,INLET
1389146E00
€ 22.00
5-2
1389117E00
ref: 5-2
E18,E39
TUBE,INLET
1389117E00
€ 22.50
6-1
1388146E00
ref: 6-1
TUBE,OUTLET
1388146E00
€ 22.00
6-2
1388146E10
ref: 6-2
E18,E39
TUBE,OUTLET
1388146E10
€ 20.00
7
0940264203
ref: 7
-09402-64208
CLAMP
0940264203
€ 6.00
8
1385346E00
ref: 8
-13853-17E00
TUBE,BREATHER
1385346E00
€ 20.00
9
0940116401
ref: 9
CLIP
0940116401
€ 3.00
10
1387021458
ref: 10
TUBE,DRAIN
1387021458
€ 23.50
11
0940111101
ref: 11
CLIP
0940111101
€ 2.50
12
1387738A00
ref: 12
STOPPER,DRAIN
1387738A00
€ 3.50
13
0940113413
ref: 13
CLIP
€ 2.50
14
1376017E00
ref: 14
BRACKET COMP,AIR CLEANER
€ 9.00
15
1377017E00
ref: 15
BRACKET COMP,AIR CLEANER
€ 14.00
16-1
0214206127
ref: 16-1
MODEL P/R
SCREW 6X12
0214206127
€ 1.50
16-2
0214206123
ref: 16-2
MODEL S/T/V
SCREW 6X12
0214206123
€ 2.00
17-1
0214206167
ref: 17-1
MODEL P/R
SCREW
0214206167
€ 2.00
17-2
0214206163
ref: 17-2
MODEL S/T/V
SCREW
0214206163
€ 2.50
18
1380017E00
ref: 18
MODEL P/R
CLEANER ASSY,AIR NO.2
1380017E00
€ 36.00
19
1375017E00
ref: 19
MODEL P/R
BRACKET,AIR CLEANER NO.2
1375017E00
€ 6.50
20-1
0151706164
ref: 20-1
MODEL P
BOLT
€ 2.50
20-2
0155006163
ref: 20-2
MODEL R
BOLT
0155006163
€ 2.50
21-1
0940406426
ref: 21-1
MODEL P/R
CLAMP
0940406426
€ 3.00
21-2
0940406433
ref: 21-2
MODEL S/T/V
CLAMP(L:80)
0940406433
€ 3.00
22
1373546E00
ref: 22
COVER,AIR CLEANER
€ 7.50
23
1378046E00
ref: 23
MODEL S/T/V
FILTER,AIR CLEANER NO,2
1378046E00
€ 17.00
24
0940116401
ref: 24
MODEL S/T/V
CLIP
0940116401
€ 3.00
