CRANKCASKE

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

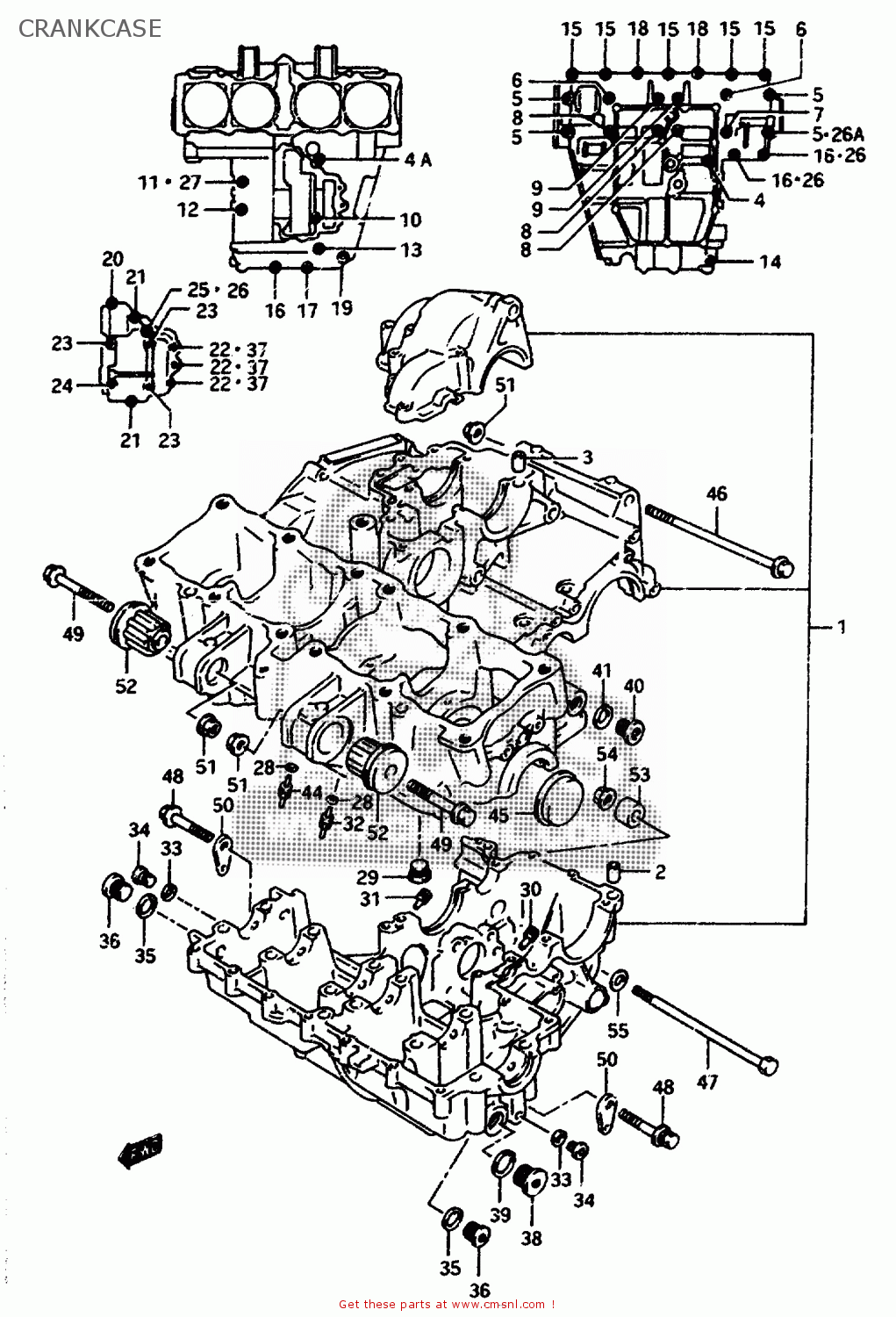

Crankcaske diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CRANKCASKE GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKCASKE GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKCASKE GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1130246861
ref: 1-1
MODEL P/R
CRANKCASE SET
€ 2,915.50
1-2
1130246884
ref: 1-2
MODEL S/T/V
CRANKCASE SET
€ 2,382.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4
0910306163
ref: 4
BOLT(6X105)
0910306163
€ 4.00
4A
0910306067
ref: 4A
BOLT(6X105)
0910306067
€ 3.50
5
0910309007
ref: 5
BOLT 9X80
0910309007
€ 5.50
6
0910309008
ref: 6
BOLT(9X95)
0910309008
€ 6.00
7
0910309009
ref: 7
BOLT(9X105)
0910309009
€ 8.00
8
0910309010
ref: 8
BOLT(9X115)
0910309010
€ 6.00
9
0910609001
ref: 9
BOLT(9X60)
0910609001
€ 6.00
10-1
0711006758
ref: 10-1
MODEL P
BOLT
€ 3.00
10-2
0713006753
ref: 10-2
MODEL R/S/T/V
BOLT
0713006753
€ 3.00
11-1
0711008508
ref: 11-1
MODEL P
BOLT ,8X50
€ 3.50
11-2
0713008503
ref: 11-2
MODEL R/S/T/V
BOLT
0713008503
€ 3.50
12-1
0711008608
ref: 12-1
MODEL P
BOLT, REAR RH
0711008608
€ 4.50
12-2
0713008603
ref: 12-2
MODEL R/S/T/V
BOLT
€ 4.50
13-1
0713008808
ref: 13-1
MODEL P
BOLT
€ 3.00
13-2
0713008803
ref: 13-2
MODEL R/S/T/V
BOLT
€ 3.00
14-1
0151708605
ref: 14-1
MODEL P
BOLT 8X60
€ 3.50
14-2
0155008603
ref: 14-2
MODEL R/S/T/V
BOLT
€ 3.50
15-1
0151706354
ref: 15-1
MODEL P
BOLT 6X35
€ 2.50
15-2
0155006353
ref: 15-2
MODEL R/S/T/V
BOLT
0155006353
€ 2.50
16-1
0151706404
ref: 16-1
MODEL P
BOLT
0151706404
€ 2.00
16-2
0155006403
ref: 16-2
MODEL R/S/T/V
BOLT
0155006403
€ 2.00
17-1
0155006407
ref: 17-1
MODEL P/R
BOLT
0155006407
€ 2.50
17-2
0155006403
ref: 17-2
MODEL S/T/V
BOLT
0155006403
€ 2.00
18-1
0151706505
ref: 18-1
MODEL P
BOLT 6X50
0151706505
€ 2.00
18-2
0155006503
ref: 18-2
MODEL R/S/T/V
BOLT
0155006503
€ 2.00
19-1
0151706655
ref: 19-1
MODEL P
BOLT
€ 2.50
19-2
0155006653
ref: 19-2
MODEL R/S/T/V
BOLT
€ 2.50
20-1
0711006257
ref: 20-1
MODEL P
BOLT
€ 2.50
20-2
0713006253
ref: 20-2
MODEL R/S/T/V
BOLT,CL.COVER
0713006253
€ 3.00
21-1
0711006357
ref: 21-1
MODEL P
BOLT
€ 3.50
21-2
0713006353
ref: 21-2
MODEL R/S/T/V
BOLT
€ 3.50
22-1
0711006408
ref: 22-1
MODEL P
BOLT
€ 3.00
22-2
0713006403
ref: 22-2
MODEL R/S/T/V
BOLT
0713006403
€ 3.50
23-1
0711006508
ref: 23-1
MODEL P
BOLT
€ 3.00
23-2
0713006503
ref: 23-2
MODEL R/S/T/V
BOLT,CL.COVER
0713006503
€ 3.00
24-1
0711006608
ref: 24-1
MODEL P
BOLT
€ 3.00
24-2
0713006603
ref: 24-2
MODEL R/S/T/V
BOLT
€ 3.00
25
0910306062
ref: 25
BOLT(6X145)
0910306062
€ 3.50
26
0916806018
ref: 26
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
26A
0916810031
ref: 26A
MODEL S/T/V
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
27
0916808016
ref: 27
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
28
0928004004
ref: 28
O RING(D:1.2,ID:4)
0928004004
€ 2.00
29
0924818002
ref: 29
PLUG,CRANKCASE,UPPER
0924818002
€ 4.00
30
0949324010
ref: 30
JET
0949324010
€ 12.00
31
0949328012
ref: 31
JET(140)
€ 8.00
32-1
0949380008
ref: 32-1
MODEL P/R
JET,OIL GALLERY
0949380008
€ 8.50
32-2
0949326007
ref: 32-2
MODEL S/T/V
JET(13)
0949326007
€ 13.50
33-1
0916810002
ref: 33-1
~E.NO.110573
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
33-2
0916810007
ref: 33-2
E.NO.110574~
GASKET(10.1X16X1) (NAS)
0916810007
€ 2.00
34-1
0924810007
ref: 34-1
~E.NO.110573
PLUG(10X6.8)
0924810007
€ 4.50
34-2
1131517E00
ref: 34-2
E.NO.110574~
PLUG,OIL GALLERY
€ 4.50
35
0916816002
ref: 35
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
36
0924816010
ref: 36
PLUG
0924816010
€ 4.50
37
0916806024
ref: 37
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
38
0924822004
ref: 38
PLUG,22X11
0924822004
€ 9.50
39
0916822002
ref: 39
GASKET(22X27X2) (NAS)
0916822002
€ 3.50
40
0924814010
ref: 40
PLUG
0924814010
€ 5.00
41
0916814002
ref: 41
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
42
1222817E000D0
ref: 42
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
43-1
1222817E000A0
ref: 43-1
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
43-2
1222817E000C0
ref: 43-2
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
43-3
1222817E000C0
ref: 43-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
43-4
1222817E000D0
ref: 43-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
43-5
1222817E000E0
ref: 43-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
43-6
1222817E000F0
ref: 43-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
44
0949326007
ref: 44
JET(13)
0949326007
€ 13.50
45
0924137002
ref: 45
PLUG
0924137002
€ 13.50
46
0910310139
ref: 46
BOLT 10X150
€ 8.50
47
0910012043
ref: 47
BOLT,ENGINE MOUNTING,REAR,LOWER
0910012043
€ 7.00
48-1
0198710558
ref: 48-1
MODEL P
BOLT
€ 3.00
48-2
0158010553
ref: 48-2
MODEL R/S/T/V
BOLT
€ 3.00
49-1
0151710558
ref: 49-1
MODEL P
BOLT 10X55
€ 3.00
49-2
0155010553
ref: 49-2
MODEL R/S/T/V
BOLT
€ 3.00
50
1161333C00
ref: 50
NUT,ENGINE MOUNT,LOWER
1161333C00
€ 7.50
51
0915910058
ref: 51
NUT
0915910058
€ 4.00
52
1168127A00
ref: 52
BUSH,ENGINE MOUNTING
1168127A00
€ 27.00
53-1
1161119B12
ref: 53-1
MODEL P/R
SPACER,ENGINE MOUNT (L:13)
€ 10.00
53-2
1161117E00
ref: 53-2
MODEL S/T/V
SPACER,ENGINE MOUNTING (L:13)(AL)
€ 10.00
54
0831931128
ref: 54
NUT 12MM
0831931128
€ 4.00
55-1
0832211128
ref: 55-1
MODEL P
WASHER
0832211128
€ 2.00
55-2
0832201123
ref: 55-2
MODEL R/S/T/V
WASHER
€ 2.00
