RADIATOR

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

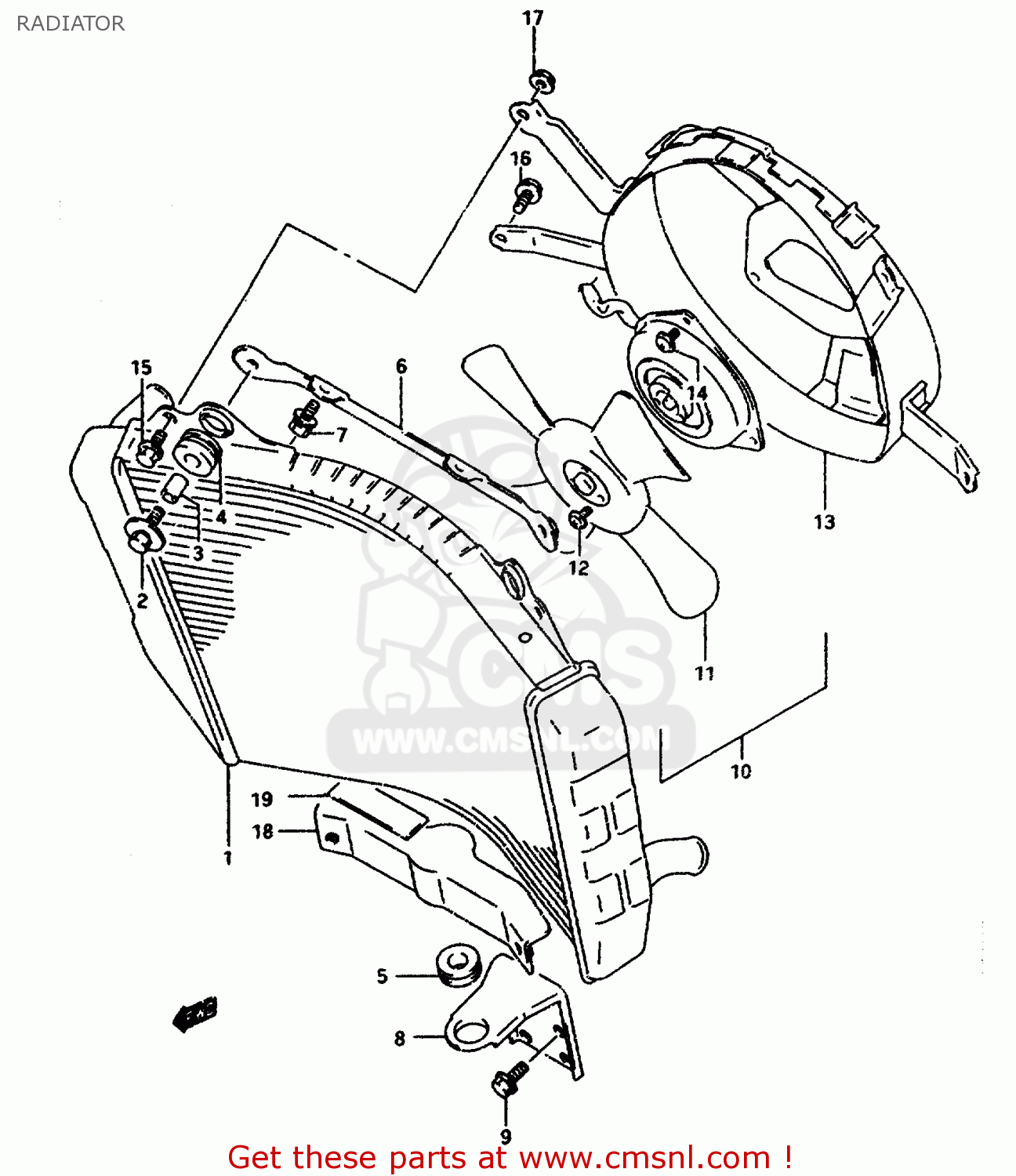

Radiator diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

RADIATOR GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
RADIATOR GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
RADIATOR GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
1771046E00
ref: 1
RADIATOR ASSY,WATER
€ 838.50
2
0911606147
ref: 2
BOLT(6X25)
0911606147
€ 4.00
3
0918007004
ref: 3
SPACER(6.5X10.5X12)
0918007004
€ 2.50
4
1778719A00
ref: 4
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
5
0932012053
ref: 5
CUSHION
0932012053
€ 7.50
6
1774017E00
ref: 6
BRACKET COMP,RADIATOR
1774017E00
€ 20.00
7-1
0117706125
ref: 7-1
MODEL P
BOLT
0117706125
€ 2.00
7-2
0158006163
ref: 7-2
MODEL R/S/T/V
BOLT
0158006163
€ 2.50
8
1775046E00
ref: 8
BRACKET,RADIATOR,LOWER
€ 10.50
9-1
0117406165
ref: 9-1
MODEL P
BOLT
€ 2.50
9-2
0158006203
ref: 9-2
MODEL R/S/T/V
BOLT, REAR
€ 2.50
10-1
1780046E01
ref: 10-1
MODEL P/R,-17800-46E
FAN ASSEMBLY,RADIATOR
€ 487.00
10-2
1780046E02
ref: 10-2
MODEL S/T/V
FAN ASSY,RADIATOR
1780046E02
€ 487.00
11
1782017E00
ref: 11
FAN
1782017E00
€ 48.50
12
0211204063
ref: 12
-17801-05A00
SCREW 4X6
0211204063
€ 2.00
13
1777046E00
ref: 13
SHROUD
€ 81.50
14
0214205083
ref: 14
-17801-45C00
SCREW
0214205083
€ 2.00
15-1
0151706125
ref: 15-1
MODEL P
BOLT 6X12
0151706125
€ 2.50
15-2
0155006123
ref: 15-2
MODEL R/S/T/V
BOLT
0155006123
€ 2.50
16-1
0151706108
ref: 16-1
MODEL P
BOLT
0151706108
€ 2.50
16-2
0155006103
ref: 16-2
MODEL P
BOLT
0155006103
€ 2.50
17-1
0831616064
ref: 17-1
MODEL P
NUT 6MM
0831616064
€ 2.50
17-2
0831610063
ref: 17-2
MODEL R/S/T/V
NUT
0831610063
€ 2.50
18
1776046E00
ref: 18
BRACKET,RADIATOR,LOWER,NO
1776046E00
€ 19.50
19-1
9447617E00
ref: 19-1
MODEL P/R/S
CUSHION,RADIATOR LWR
€ 6.00
19-2
5155315D40
ref: 19-2
MODEL T/V
CUSHION(50X42X2.0)
5155315D40
€ 6.00
