TRANSMISSION

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

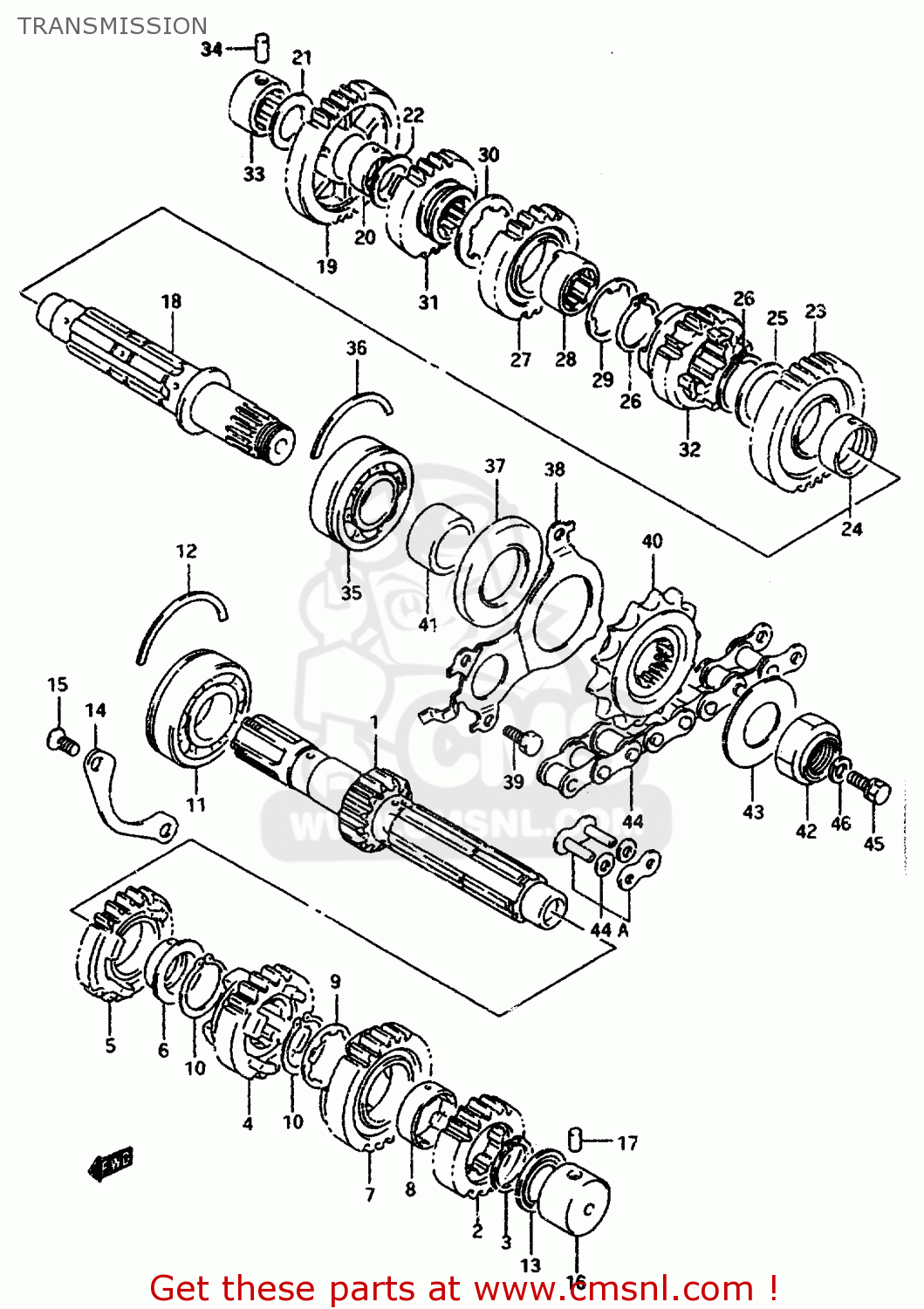

Transmission diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

TRANSMISSION GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
TRANSMISSION GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
TRANSMISSION GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
2412026D10
ref: 1
SHAFT COMP,COUNTER
2412026D10
€ 292.50
2
2422126D00
ref: 2
GEAR,2ND DRIVE
2422126D00
€ 86.50
3
0938028008
ref: 3
CIRCLIP
0938028008
€ 5.00
4
2423126D02
ref: 4
GEAR,THIRD DRIVE
2423126D02
€ 164.50
5
2424126D10
ref: 5
GEAR,FOURTH DRIVE
2424126D10
€ 149.50
6
0930128001
ref: 6
BUSH(28X32X2)
0930128001
€ 19.50
7
2425126D01
ref: 7
GEAR,FIFTH DRIVE
€ 115.50
8
2433224A00
ref: 8
BUSH
2433224A00
€ 18.00
9
0916728001
ref: 9
WASHER,LOCK
0916728001
€ 3.00
10
0833131286
ref: 10
CIRCLIP
0833131286
€ 2.50
11
0926225105
ref: 11
-09262-25051
BEARING(25X62X17)
0926225105
€ 59.50
12
0939062012
ref: 12
C RING
0939062012
€ 5.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
14
2474127A00
ref: 14
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
15-1
0212206167
ref: 15-1
MODEL P/R
SCREW
0212206167
€ 2.00
15-2
0212206163
ref: 15-2
MODEL S/T/V
SCREW ,6X16
0212206163
€ 2.00
16
0926320082
ref: 16
BEARING
0926320082
€ 50.50
17
0422107129
ref: 17
PIN
0422107129
€ 1.50
18
2413146E10
ref: 18
SHAFT,DRIVE
2413146E10
€ 194.00
19-1
2431126D00
ref: 19-1
MODEL P
GEAR,1ST DRIVEN
2431126D00
€ 127.50
19-2
2431126D10
ref: 19-2
MODEL P E15,E17,E18,
GEAR,1ST DRIVEN
2431126D10
€ 117.00
19-3
2431126D10
ref: 19-3
MODEL R/S/T/V
GEAR,1ST DRIVEN
2431126D10
€ 117.00
20
0930022005
ref: 20
BUSHING
€ 19.50
21-1
0821120341
ref: 21-1
MODEL P/R/S/T
WASHER
0821120341
€ 2.00
21-2
0918120251
ref: 21-2
MODEL V
SHIM(20X34X1)
0918120251
€ 3.00
22-1
0821122341
ref: 22-1
MODEL P/R/S/T
WASHER
0821122341
€ 3.00
22-2
0918122223
ref: 22-2
MODEL V
SHIM(22X34X1)
0918122223
€ 3.00
23
2432126D01
ref: 23
GEAR,2ND DRIVEN
2432126D01
€ 174.50
24
0930028002
ref: 24
BUSH(28X32X11)
0930028002
€ 15.50
25-1
0821128381
ref: 25-1
MODEL P/R/S/T
WASHER, THRUST
0821128381
€ 3.50
25-2
0918128195
ref: 25-2
MODEL V
SHIM(28X38X1)
0918128195
€ 3.50
26
0833131286
ref: 26
CIRCLIP
0833131286
€ 2.50
27
2433126D10
ref: 27
GEAR,3RD DRIVEN
2433126D10
€ 285.00
28
2433248B00
ref: 28
BUSHING,THIRD DRIVEN GEAR
2433248B00
€ 28.50
29
0916728001
ref: 29
WASHER,LOCK
0916728001
€ 3.00
30
0916728008
ref: 30
WASHER,LOCK
0916728008
€ 6.00
31-1
2434126D00
ref: 31-1
MODEL P
GEAR,4TH DRIVEN
2434126D00
€ 130.50
31-2
2434126D10
ref: 31-2
MODEL P E15,E17,E18,
GEAR,FOURTH DRIVEN
€ 138.00
31-3
2434126D10
ref: 31-3
MODEL R
GEAR,FOURTH DRIVEN
€ 138.00
31-4
2434126D11
ref: 31-4
MODEL S/T/V
GEAR,4TH DRIVEN
€ 138.00
32-1
2435126D20
ref: 32-1
MODEL P/R/S
GEAR,FIFTH DRIVEN
€ 134.50
32-2
2435126D21
ref: 32-2
MODEL T/V
GEAR,5TH DRIVEN
2435126D21
€ 134.50
33
0926320040
ref: 33
BEARING(20X34X20)
0926320040
€ 42.50
34
0422107209
ref: 34
PIN
0422107209
€ 1.50
35
0926228025
ref: 35
BEARING(28X70X18)
0926228025
€ 97.50
36
0939070001
ref: 36
C RING
0939070001
€ 5.50
37
0928336008
ref: 37
SEAL,OIL(34.8X70X6)
0928336008
€ 16.50
38
2475117E00
ref: 38
RETAINER,DRIVE SHAFT OIL SEAL
2475117E00
€ 9.00
39-1
0110706127
ref: 39-1
MODEL P
BOLT
0110706127
€ 2.00
39-2
0150006123
ref: 39-2
MODEL R/S/T/V
BOLT
0150006123
€ 2.00
40-1
2751048B00
ref: 40-1
MODEL P/R
SPROCKET,ENGINE(15T)
2751048B00
€ 53.50
40-2
2751046E00
ref: 40-2
MODEL S/T/V
SPROCKET,ENGINE (16T)
2751046E00
€ 52.50
41
0918025098
ref: 41
SPACER(25X36X17.7)
0918025098
€ 19.00
42
0915920004
ref: 42
NUT
0915920004
€ 12.00
43-1
0821125402
ref: 43-1
MODEL P/R/S/T
WASHER,THRUST
0821125402
€ 3.00
43-2
0918125268
ref: 43-2
MODEL V
SHIM(25X40X1.5)
0918125268
€ 3.00
44-1
2760040C20114
ref: 44-1
MODEL P/R
CHAIN,DRIVE #532GSV2
€ 307.50
44-2
2760046E20116
ref: 44-2
MODEL S/T/V
CHAIN,DRIVE(116LE)
2760046E20116
€ 307.50
44A
2762046E20
ref: 44A
JOINT SET
€ 8.00
45-1
0114706168
ref: 45-1
MODEL P
BOLT
€ 2.50
45-2
0157006163
ref: 45-2
MODEL R/S/T/V
BOLT
0157006163
€ 2.50
46
0821206222
ref: 46
WASHER
0821206222
€ 1.50
