CAM CHAIN

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

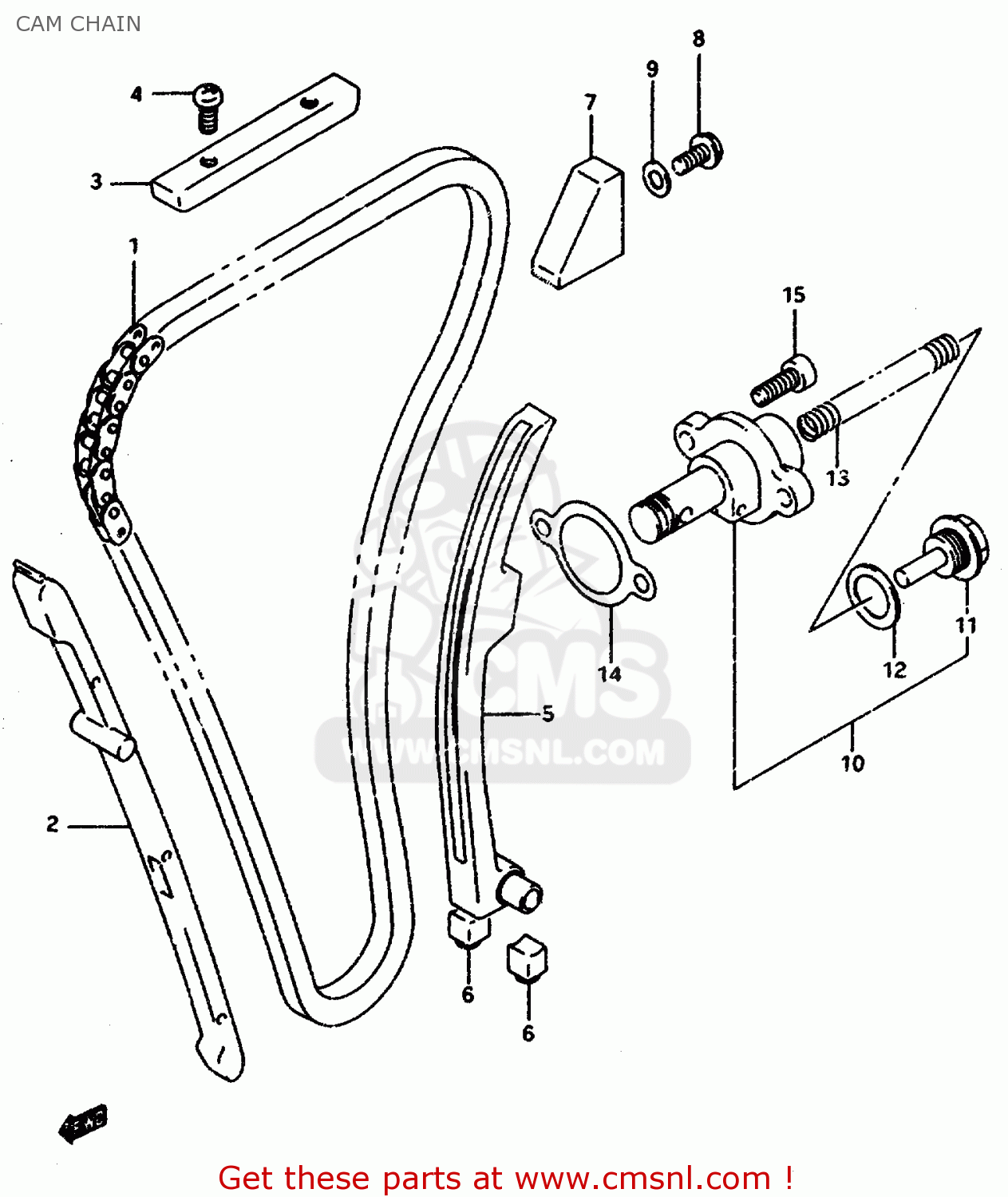

Cam chain diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CAM CHAIN GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CAM CHAIN GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CAM CHAIN GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1276046E00
ref: 1-1
MODEL P/R
CHAIN,CAMSHAFT DRIVE
€ 115.50
1-2
1276046E01
ref: 1-2
MODEL S/T/V
CHAIN,CAMSHAFT DRIVE
1276046E01
€ 115.50
2
1277146E00
ref: 2
GUIDE,CAM CAHIN NO.1
1277146E00
€ 32.50
3
1278246E01
ref: 3
GUIDE,CAM CHAIN NO.2
1278246E01
€ 177.50
4-1
0211205087
ref: 4-1
MODEL P
SCREW
0211205087
€ 2.00
4-2
0211205083
ref: 4-2
MODEL R/S/T/V
SCREW
0211205083
€ 2.00
5
1281046E00
ref: 5
TENSIONER,CAM CHAIN
1281046E00
€ 51.50
6
1281434200
ref: 6
CUSHION,CAM CHAIN TENSIONER
1281434200
€ 6.50
7-1
1279117E00
ref: 7-1
MODEL P/R-12791-17E0
GUIDE,CAM CHAIN NO.3
1279117E00
€ 39.00
7-2
1279117E01
ref: 7-2
MODEL S/T/V
GUIDE,CAM CHAIN NO.3
1279117E01
€ 39.00
8-1
0151706125
ref: 8-1
MODLE P
BOLT 6X12
0151706125
€ 2.50
8-2
0155006123
ref: 8-2
MODEL R
BOLT
0155006123
€ 2.50
8-3
0155006163
ref: 8-3
MODEL S/T/V
BOLT
0155006163
€ 2.50
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
10-1
1283046E00
ref: 10-1
MODEL P/R
ADJUSTER ASSY,TENSIONER
1283046E00
€ 244.00
10-2
1283046E10
ref: 10-2
MODEL S/T/V
ADJUSTER ASSY,TENSIONER
1283046E10
€ 244.00
11
1283427A00
ref: 11
PLUG
1283427A00
€ 20.50
12
1283227A00
ref: 12
GASKET (NAS)
1283227A00
€ 5.50
13
1283326D10
ref: 13
SPRING
1283326D10
€ 5.00
14
1283727A10
ref: 14
GASKET,TENSIONER ADJUSTER (NAS)
1283727A10
€ 8.50
15-1
0910606059
ref: 15-1
MODEL P
BOLT
0910606059
€ 3.00
15-2
0910606082
ref: 15-2
MODEL R/S
BOLT(6X22)
0910606082
€ 3.00
15-3
0910606079
ref: 15-3
MODEL T/V
BOLT
€ 3.00
