STAND

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

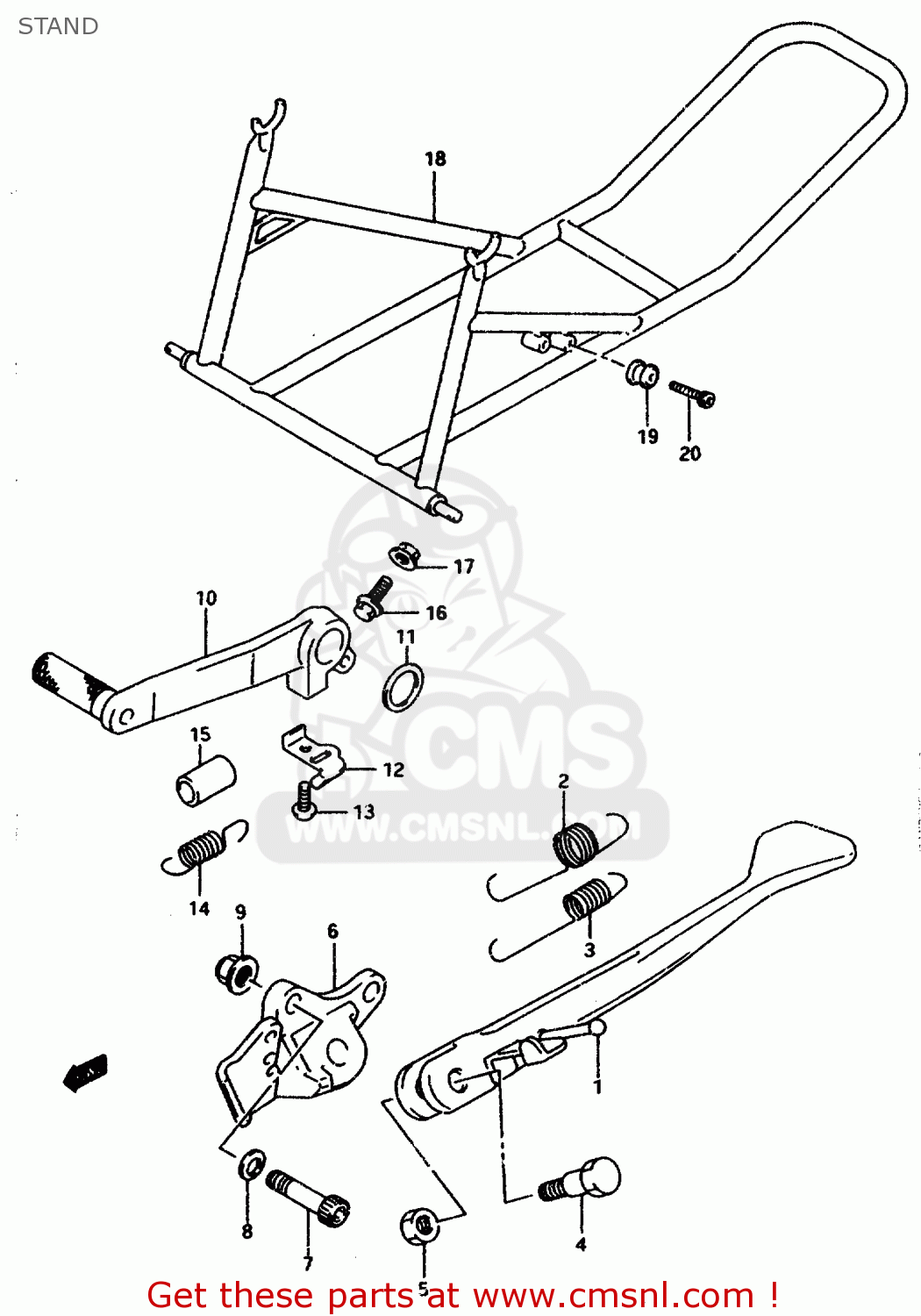

Stand diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STAND GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
STAND GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
STAND GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
4231046E00
ref: 1-1
MODEL P/R
STAND COMP,PROP
€ 127.50
1-2
4231046E01
ref: 1-2
MODEL S/T/V
STAND,PROP
4231046E01
€ 127.50
2
0944314058
ref: 2
SPRING
0944314058
€ 5.50
3
0944319011
ref: 3
SPRING
0944319011
€ 5.50
4
0911110036
ref: 4
BOLT(10X38)
0911110036
€ 5.50
5-1
0831000107
ref: 5-1
MODEL P
NUT
0831000107
€ 2.50
5-2
0914010043
ref: 5-2
MODEL R
NUT
0914010043
€ 2.00
5-3
0915910097
ref: 5-3
MODEL S/T/V
NUT
0915910097
€ 5.00
6
4233046E00
ref: 6
BRACKET COMP,PROP STAND
€ 90.50
7
0910610033
ref: 7
BOLT 10X38
0910610033
€ 2.50
8-1
0916410010
ref: 8-1
MODEL P/R/S
WASHER
0916410010
€ 6.50
8-2
0916410005
ref: 8-2
MODEL T
WASHER
0916410005
€ 6.50
8-3
0916410010
ref: 8-3
MODEL V
WASHER
0916410010
€ 6.50
9
0831931107
ref: 9
NUT
0831931107
€ 3.00
10-1
4311046E00
ref: 10-1
MODEL P
PEDAL,BRAKE
€ 107.50
10-2
4311046E01
ref: 10-2
MODEL R
PEDAL,BRAKE
4311046E01
€ 107.50
10-3
4311146E10
ref: 10-3
MODEL S/T/V
PEDAL,BRAKE
4311146E10
€ 107.50
11
0916018022
ref: 11
WASHER(18X24X1)
0916018022
€ 3.00
12
4356346E10
ref: 12
HOOK,RETURN SPRING
€ 10.50
13
0913906027
ref: 13
SCREW(6X12)
0913906027
€ 3.00
14
0944313018
ref: 14
SPRING
0944313018
€ 4.00
15
4326117C00
ref: 15
TUBE,BRAKE SPRING GUIDE
4326117C00
€ 5.50
16
0150005203
ref: 16
BOLT 5X20
€ 2.50
17
0831000057
ref: 17
NUT
0831000057
€ 2.50
18
4210017C00
ref: 18
OPT
STAND ASSEMBLY,REAR
4210017C00
€ 471.00
19
6116527A30
ref: 19
OPT
HOLDER,STAND
6116527A30
€ 26.50
20
0713008303
ref: 20
OPT
BOLT
0713008303
€ 3.00
