CRANKSHAFT

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

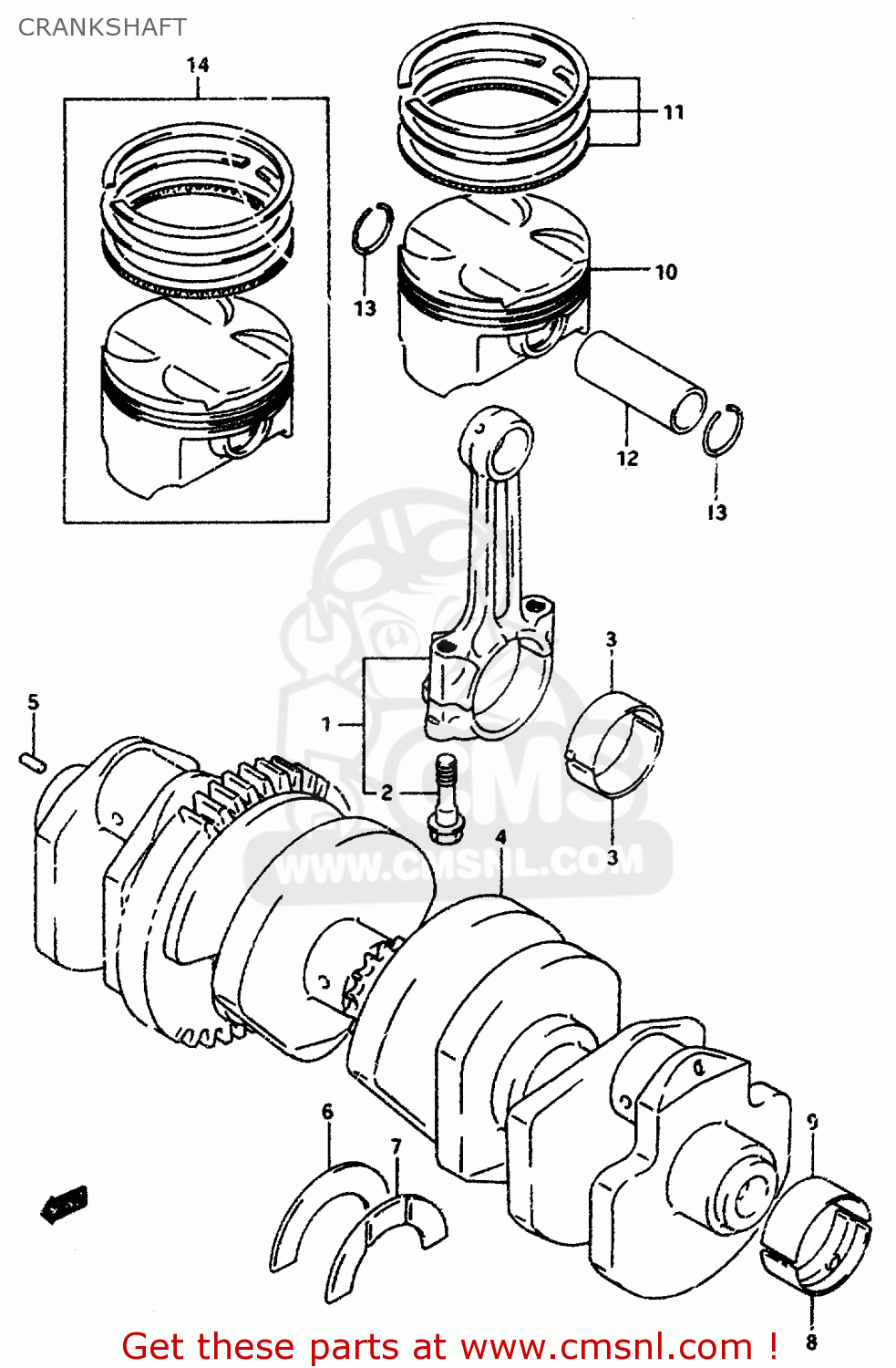

Crankshaft diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CRANKSHAFT GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKSHAFT GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
CRANKSHAFT GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
1216046E02
ref: 1
CONNECTING ROD ASSY
1216046E02
€ 161.50
2
1216317C50
ref: 2
BOLT,CONNCTING ROD
1216317C50
€ 16.50
3-1
1216446E010A0
ref: 3-1
BEARING,CRANK PIN
1216446E010A0
€ 17.50
3-2
1216446E010B0
ref: 3-2
BEARING,CRANK PIN
1216446E010B0
€ 16.50
3-3
1216446E010C0
ref: 3-3
BEARING,CRANK PIN
1216446E010C0
€ 17.50
3-4
1216446E010D0
ref: 3-4
BEARING,CRANK PIN
1216446E010D0
€ 16.50
4
1200046821
ref: 4
CRANKSHAFT SET
€ 1,516.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
1222817E000D0
ref: 6
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-1
1222817E000A0
ref: 7-1
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
7-2
1222817E000B0
ref: 7-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
7-3
1222817E000C0
ref: 7-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
7-4
1222817E000D0
ref: 7-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-5
1222817E000E0
ref: 7-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
7-6
1222817E000F0
ref: 7-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
8-1
1222917E000A0
ref: 8-1
LOWER MODEL P/R
BEARING,CRANKSHAFT(GREEN)
1222917E000A0
€ 15.50
8-2
1222917E000B0
ref: 8-2
MODEL P/R
BEARING,CRANKSHAFT(BLACK)
1222917E000B0
€ 16.50
8-3
1222917E000C0
ref: 8-3
MODEL P/R
BEARING,CRANKSHAFT(BROWN)
1222917E000C0
€ 16.50
8-4
1222917E000D0
ref: 8-4
MODEL P/R
BEARING,CRANKSHAFT(YELLOW)
1222917E000D0
€ 15.50
8-5
1222946E000A0
ref: 8-5
LOWER MODEL S/T/V
BEARING,CRANKSHAFT LWR
1222946E000A0
€ 15.50
8-6
1222946E000B0
ref: 8-6
MODEL S/T/V
BEARING,CRANKSHAFT LWR
€ 16.50
8-7
1222946E000C0
ref: 8-7
MODEL S/T/V
BEARING,CRANKSHAFT LWR
1222946E000C0
€ 16.50
8-8
1222946E000D0
ref: 8-8
MODEL S/T/V
BEARING,CRANKSHAFT LWR
1222946E000D0
€ 10.50
9-1
1222917E100A0
ref: 9-1
UPPER MODEL P/R
BEARING,CRANKSHAFT(GREEN)
1222917E100A0
€ 14.00
9-2
1222917E100B0
ref: 9-2
MODEL P/R
BEARING,CRANKSHAFT(BLACK)
1222917E100B0
€ 16.50
9-3
1222917E100C0
ref: 9-3
MODEL P/R
BEARING,CRANKSHAFT(BROWN)
1222917E100C0
€ 16.50
9-4
1222917E100D0
ref: 9-4
MODEL P/R
BEARING,CRANKSHAFT(YELLOW)
1222917E100D0
€ 15.00
9-5
1222946E100A0
ref: 9-5
UPPER MODEL S/T/V
BEARING,CRANKSHAFT UPR
€ 12.00
9-6
1222946E100B0
ref: 9-6
MODEL S/T/V
BEARING,CRANKSHAFT UPR
1222946E100B0
€ 16.50
9-7
1222946E100C0
ref: 9-7
MODEL S/T/V
BEARING,CRANKSHAFT UPR
1222946E100C0
€ 10.50
9-8
1222946E100D0
ref: 9-8
MODEL S/T/V
BEARING,CRANKSHAFT UPR
1222946E100D0
€ 10.50
10-1
1211146E060F0
ref: 10-1
MODEL P/R
PISTON (75.50MM)
€ 60.50
10-2
1211146E070F0
ref: 10-2
MODEL MODEL S/T/V
PISTON
€ 60.50
11-1
1214046E12
ref: 11-1
MODEL P/R
RING SET,PISTON
€ 98.50
11-2
1214046E13
ref: 11-2
MODEL S/T/V
RING SET,PISTON
1214046E13
€ 98.50
12
1215124A00
ref: 12
PIN,PISTON
1215124A00
€ 18.50
13
0938120004
ref: 13
CIRCLIP,PISTON PIN
0938120004
€ 2.00
14
1210046E01050
ref: 14
OPT
PISTON SET(OS:0.5)
1210046E01050
€ 156.00
