CYLINDER HEAD COVER

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

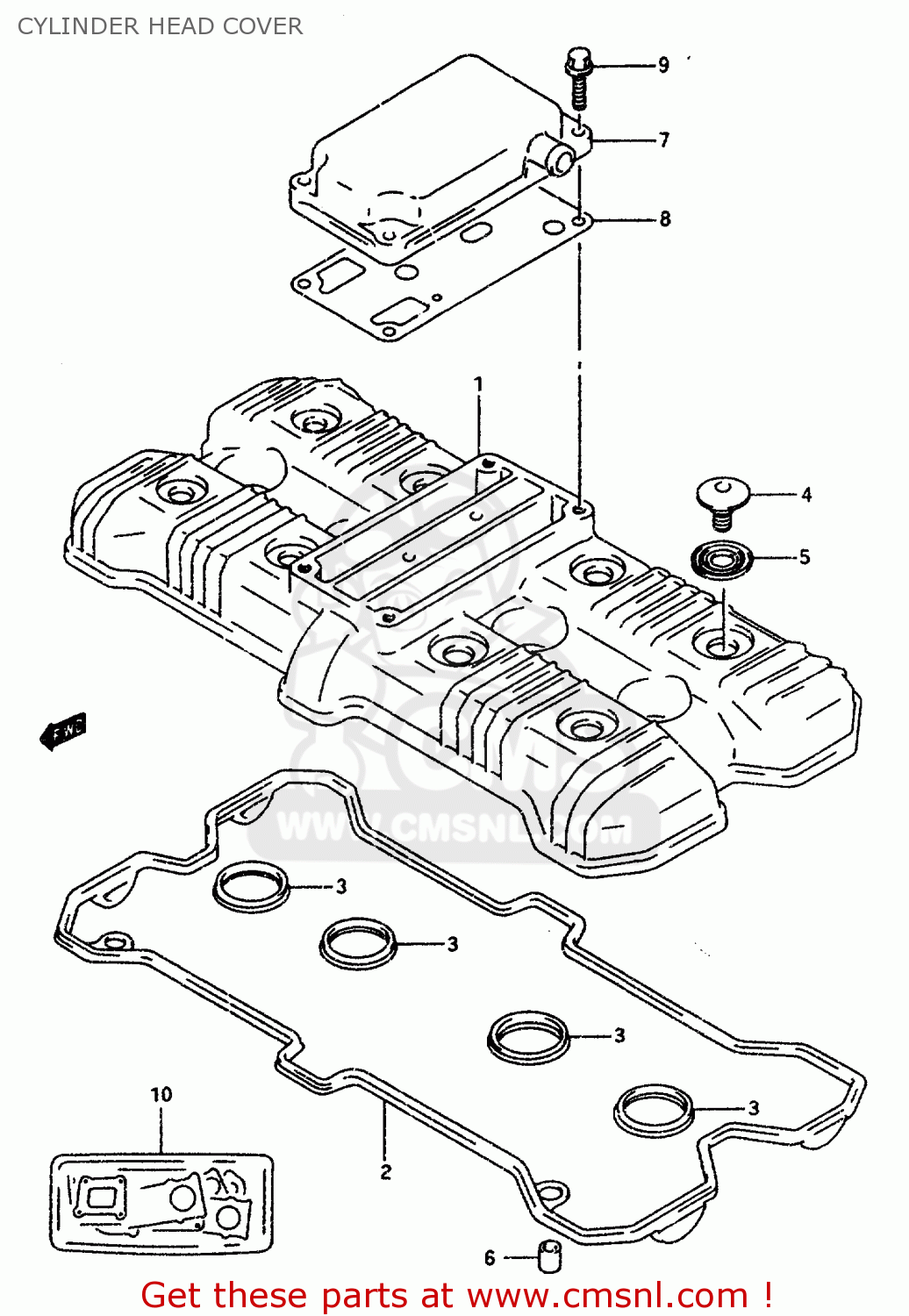

Cylinder head cover diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CYLINDER HEAD COVER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CYLINDER HEAD COVER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1117117E00
ref: 1-1
MODEL P/R

COVER,CYLINDER HEAD

€ 499.50

1-2

1117117E11
ref: 1-2
MODEL S/T/V

COVER,CYLINDER (MG)

€ 499.50

2

1117317E00
ref: 2

GASKET,CYL HEAD COVER NO.1

€ 53.50

3

1117817E00
ref: 3

GASKET,CYL HEAD COVER NO.2

€ 6.00

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

0916111008
ref: 5

WASHER(10.6X25.5X2.3)

€ 4.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

1117626D00
ref: 7-1
MODEL P/R

COVER,BREATHER

€ 35.50

7-2

1117631E00
ref: 7-2
MODEL S/T/V

COVER,BREATHER

€ 43.50

8

1117717E00
ref: 8

GASKET,BREATHER COVER

€ 12.50

9-1

0151706257
ref: 9-1
MODEL P

BOLT 6X25

€ 2.50

9-2

0155006253
ref: 9-2
MODEL R/S/T/V

BOLT

€ 2.50

10-1

1140346812
ref: 10-1
MODEL P/R/S/T

GASKET SET (NAS)

€ 239.00

10-2

1140346813
ref: 10-2
MODEL V

GASKET SET (NAS)

€ 239.00
