WIRING HARNESS (MODEL S/T/V)

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

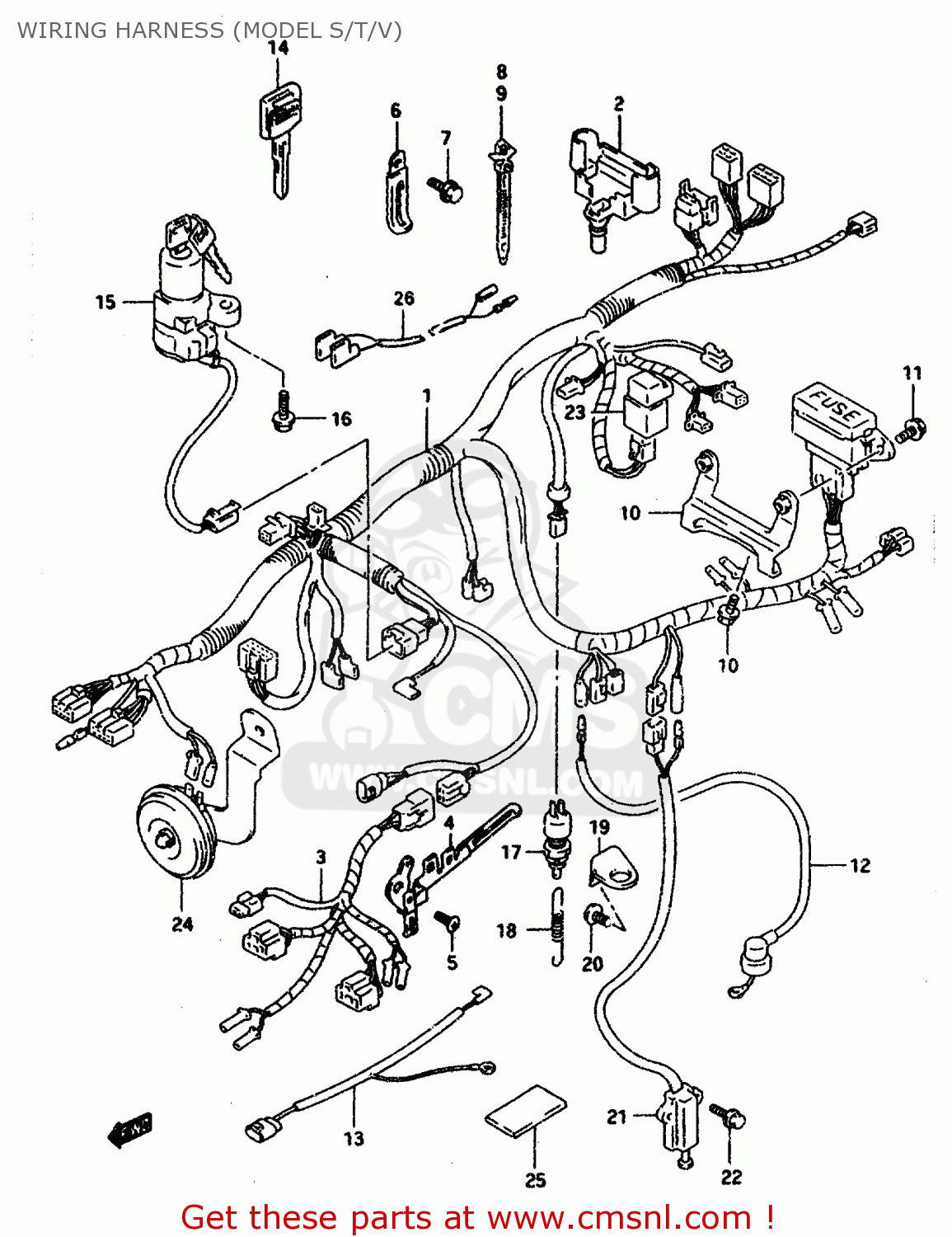

Wiring harness (model s/t/v) diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WIRING HARNESS (MODEL S/T/V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
WIRING HARNESS (MODEL S/T/V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
WIRING HARNESS (MODEL S/T/V) GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
3661046E20
ref: 1
HARNESS,WIRING
€ 451.50
2
3186117E20
ref: 2
CAP,STARTER RELAY
€ 13.00
3
3662017E00
ref: 3
HARNESS,WIRING NO.2
€ 74.50
4-1
3668046E00
ref: 4-1
HOLDER COMP,COUPLER,LEFT
€ 6.00
4-2
3668046E10
ref: 4-2
HOLDER COMP,COUPLER,RIGHT
€ 6.00
5
0354105083
ref: 5
SCREW 5X8
0354105083
€ 2.00
6-1
0940406431
ref: 6-1
CLAMP(L:65)
0940406431
€ 2.50
6-2
0940406433
ref: 6-2
CLAMP(L:80)
0940406433
€ 3.00
6-3
0940406435
ref: 6-3
CLAMP(L:135)
0940406435
€ 2.50
7
0155006103
ref: 7
BOLT
0155006103
€ 2.50
8-1
0940711401
ref: 8-1
CLAMP(L:95)
0940711401
€ 2.50
8-2
0940711402
ref: 8-2
CLAMP(L:90)
0940711402
€ 2.50
8-3
0940714403
ref: 8-3
CLAMP(L:125)
0940714403
€ 2.50
8-4
0940718403
ref: 8-4
CLAMP L:165
€ 2.50
9
0940725401
ref: 9
CLAMP(L:235)
0940725401
€ 4.00
10
4741017E00
ref: 10
BRACKET,FUSE BOX
€ 13.50
11-1
0214206123
ref: 11-1
MODEL S/T
SCREW 6X12
0214206123
€ 2.00
11-2
0155006123
ref: 11-2
MODEL V
BOLT
0155006123
€ 2.50
12
3685117E10
ref: 12
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
13
3685246E10
ref: 13
WIRE,WATER TEMPERATURE GAUGE
€ 9.50
14
3714646E00
ref: 14
OPT
KEY,BLANK
3714646E00
€ 13.00
15-1
3710046E21
ref: 15-1
-37100-46E20
LOCK ASSY,STEERING
3710046E21
€ 110.00
15-2
3710046E11
ref: 15-2
E24,-37100-46E10
LOCK ASSY,STEERING
€ 136.50
16
0911908082
ref: 16
BOLT M8X20
0911908082
€ 3.00
17
3774024A00
ref: 17
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
18
0944306012
ref: 18
SPRING
0944306012
€ 3.00
19
4325033C00
ref: 19
BRACKET,STOP LAMP SWITCH
4325033C00
€ 5.00
20
0913906027
ref: 20
SCREW(6X12)
0913906027
€ 3.00
21
3784026X50
ref: 21
SWITCH ASSY,SIDE STAND WARNING
3784026X50
€ 100.50
22
0155006163
ref: 22
BOLT
0155006163
€ 2.50
23
3874024X50
ref: 23
RELAY ASSY
3874024X50
€ 37.50
24-1
3850217E11
ref: 24-1
HORN ASSEMBLY,LOW PITCH
€ 78.00
24-2
3850117E10
ref: 24-2
E25,E34,E37,P37,E39
HORN ASSY, HIGH
€ 72.00
25-1
3692002200
ref: 25-1
MODEL S/T
COVER,HARNESS
3692002200
€ 3.00
25-2
3692010B00
ref: 25-2
MODEL V
TAPE
€ 3.00
26
3685219D00
ref: 26
WIRE,CLUTCH LEAD
3685219D00
€ 12.00
24
3685221E10
ref: 24
E25,E34,E39-36852-46
WIRE,HORN LEAD
€ 14.00
up

all assemblies
