CYLINDER

GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

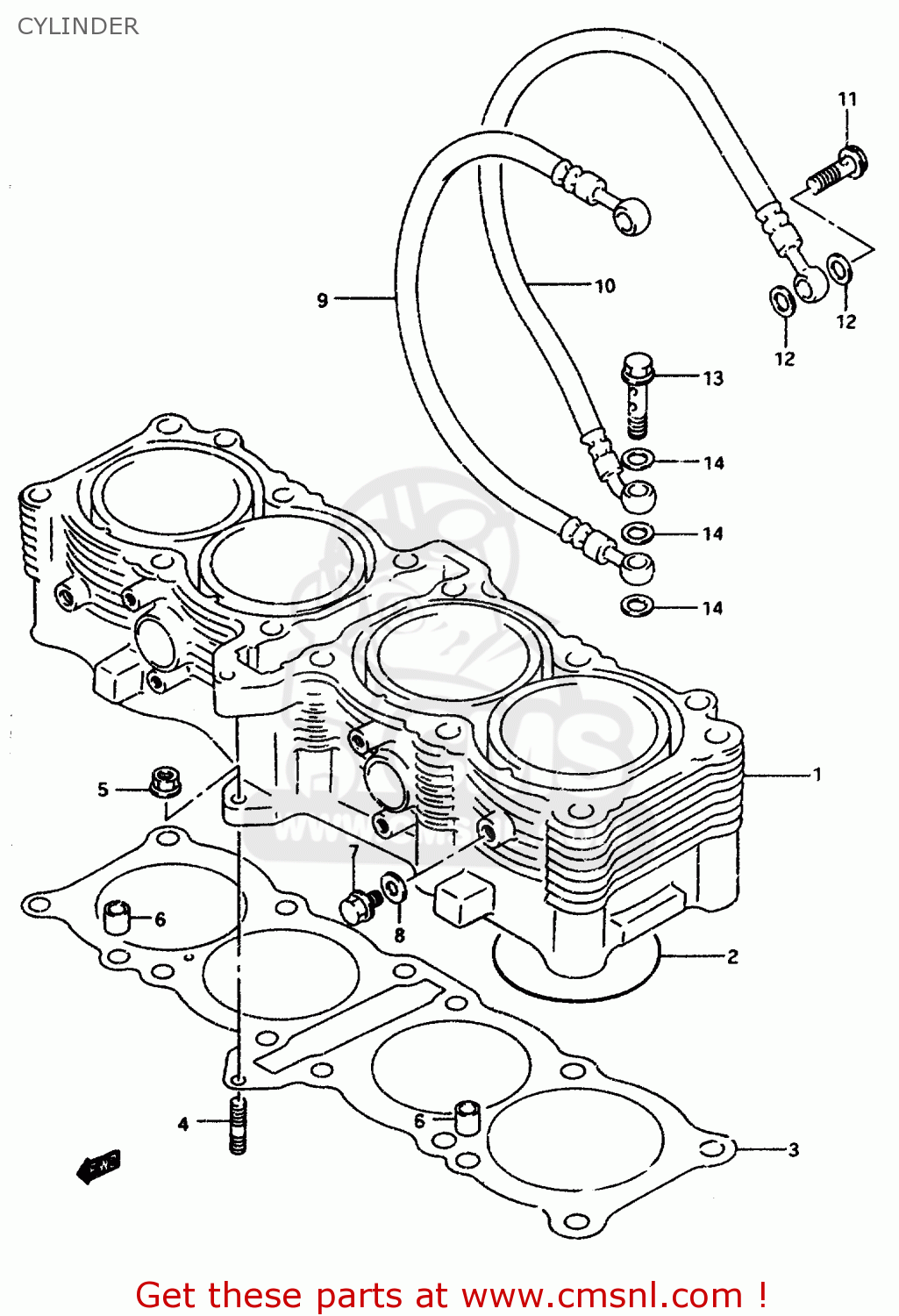

Cylinder diagram GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CYLINDER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CYLINDER GSXR1100W 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1121046E00
ref: 1-1
MODEL P/R

CYLINDER COMP

€ 1,481.50

1-2

1121046E01
ref: 1-2
MODEL S/T/T

CYLINDER

€ 1,481.50

2

0928081002
ref: 2

O RING(D:1.9,ID:79.5)

€ 24.50

3

1124146E01
ref: 3

GASKET,CYLINDER

€ 35.50

4-1

0142106205
ref: 4-1
MODEL P/R

STUD BOLT L:20

€ 2.50

4-2

0142106203
ref: 4-2
MODEL S/T/V

STUD,M6X1X32

€ 2.50

5-1

0831616064
ref: 5-1
MODEL P

NUT 6MM

€ 2.50

5-2

0831610063
ref: 5-2
MODEL R/S/T/V

NUT

€ 2.50

6

0421111189
ref: 6

PIN

€ 2.00

7

1741514300
ref: 7
MODEL P/R

BOLT,DRAIN

€ 2.00

8

0916808008
ref: 8
MODEL P/R

GASKET 8.2X14X1 (NAS)

€ 1.00

9-1

1128117E00
ref: 9-1
~E.NO.102584

HOSE,OIL

€ 81.50

9-2

1128117E01
ref: 9-2
R.NO.102585~

HOSE,OIL,R

€ 81.50

10-1

1128217E00
ref: 10-1
~E.NO.102584

HOSE,OIL

€ 107.00

10-2

1128217E01
ref: 10-2
E.NO.102585~

HOSE,OIL,L

€ 107.00

11

1128417E00
ref: 11

BOLT,OIL PIPE UNION,NO

€ 15.00

12

0916808016
ref: 12

GASKET(8.2X14X1) (NAS)

€ 1.00

13

1128532C00
ref: 13

BOLT,OIL PIPE UNION,NO

€ 16.50

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00
